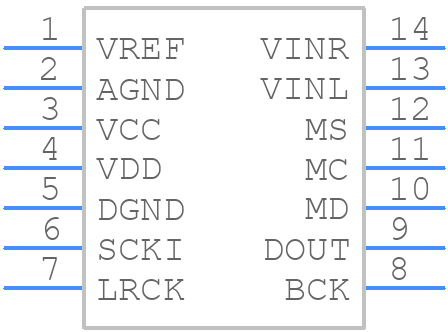

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for PCM1807PWR by Texas Instruments
Results Overview of PCM1807PWR by Texas Instruments
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
PCM1807PWR Information
PCM1807PWR by Texas Instruments is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for PCM1807PWR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-31708-1-ND
|
DigiKey | IC ADC/AUDIO 24BIT 96K 14TSSOP Min Qty: 1 Lead time: 18 Weeks Container: Digi-Reel®, Tape & Reel (TR), Cut Tape (CT) |
3699 In Stock |
|
$1.4013 / $2.9100 | Buy Now |
|
DISTI #
595-PCM1807PWR
|
Mouser Electronics | Audio A/D Converter ICs 24-bit 96kHz Stereo Audio DAC A 595-PCM1807PW RoHS: Compliant | 3106 |
|
$1.2700 / $2.9100 | Buy Now |
|
DISTI #
86281789
|
Verical | 2-Channel Dual ADC Delta-Sigma 96ksps 24-bit Serial 14-Pin TSSOP T/R RoHS: Compliant Min Qty: 197 Package Multiple: 1 Date Code: 1101 | Americas - 315 |
|
$1.1878 / $1.9125 | Buy Now |
|
|
Bristol Electronics | 805 |
|
RFQ | ||
|
|
Quest Components | 644 |
|
$1.1700 / $3.7440 | Buy Now | |
|
|
Quest Components | 644 |
|
$1.4160 / $3.7760 | Buy Now | |
|
|
Rochester Electronics | PCM1807 101dB SNR Stereo ADC With Single-Ended Inputs RoHS: Compliant Status: Active Min Qty: 1 | 315 |
|
$0.9502 / $1.5300 | Buy Now |
Part Details for PCM1807PWR
PCM1807PWR CAD Models
PCM1807PWR Part Data Attributes
|
|
PCM1807PWR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
PCM1807PWR
Texas Instruments
101dB SNR Stereo ADC With Single-Ended Inputs 14-TSSOP -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | TSSOP | |
| Package Description | TSSOP-14 | |
| Pin Count | 14 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Analog Input Voltage-Max | 3.3 V | |
| Analog Input Voltage-Min | ||
| Converter Type | ADC, DELTA-SIGMA | |
| JESD-30 Code | R-PDSO-G14 | |
| JESD-609 Code | e4 | |
| Length | 5 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Analog In Channels | 2 | |
| Number of Bits | 24 | |
| Number of Functions | 1 | |
| Number of Terminals | 14 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Bit Code | 2'S COMPLEMENT BINARY | |
| Output Format | SERIAL | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP14,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Sample Rate | 0.096 MHz | |
| Seated Height-Max | 1.2 mm | |
| Supply Current-Max | 11 mA | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 4.4 mm |
Alternate Parts for PCM1807PWR
This table gives cross-reference parts and alternative options found for PCM1807PWR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PCM1807PWR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| PCM1807PW | Texas Instruments | $1.4273 | 101dB SNR Stereo ADC With Single-Ended Inputs 14-TSSOP -40 to 85 | PCM1807PWR vs PCM1807PW |
PCM1807PWR Frequently Asked Questions (FAQ)
-
The recommended power-on sequence is to apply VCC first, followed by AVCC, and then DVCC. This ensures that the internal voltage regulators are powered up correctly.
-
To optimize the analog input circuitry, use a low-pass filter to remove high-frequency noise, and ensure that the input impedance is matched to the source impedance. Also, use a high-quality, low-noise analog power supply.
-
The maximum clock frequency that can be used with the PCM1807PWR is 256 fs (where fs is the sampling frequency). For example, at a sampling frequency of 44.1 kHz, the maximum clock frequency is approximately 11.2896 MHz.
-
The PCM1807PWR outputs data in a 24-bit, MSB-first, left-justified format. The data is output on the DOUT pin, and the clock signal is output on the BCK pin. The data is valid on the rising edge of the BCK signal.
-
To minimize noise and ensure optimal performance, keep the analog and digital circuits separate, use a solid ground plane, and route the analog and digital signals on separate layers. Also, use a low-inductance path for the power supply lines.
