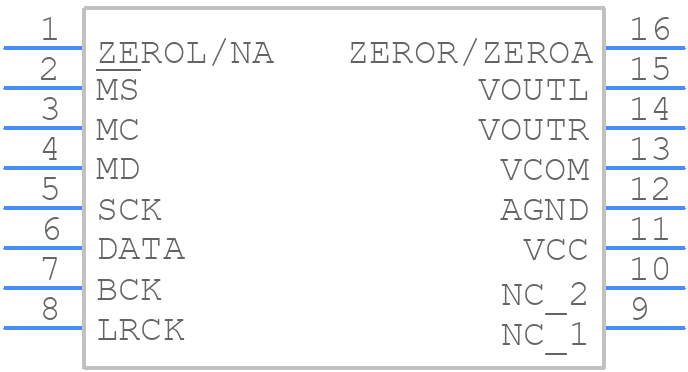

Part Symbol
-
Footprint
-

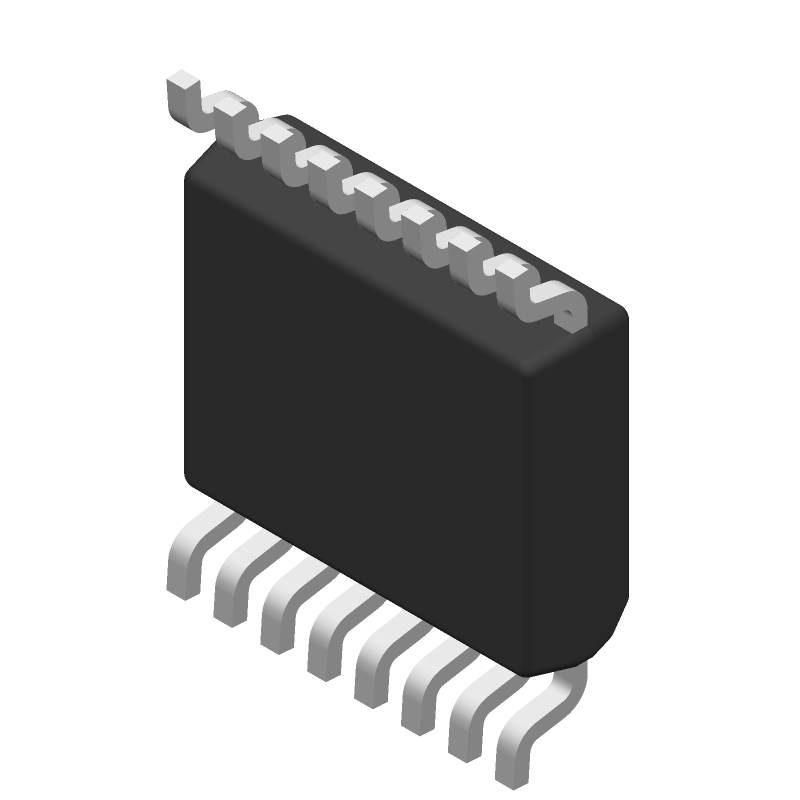

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for PCM1780DBQR by Texas Instruments
Results Overview of PCM1780DBQR by Texas Instruments
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (8 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Education and Research
Environmental Monitoring
Industrial Automation
Audio and Video Systems
Agriculture Technology
Medical Imaging
Entertainment and Gaming
PCM1780DBQR Information
PCM1780DBQR by Texas Instruments is a Digital to Analog Converter.
Digital to Analog Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for PCM1780DBQR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-41373-1-ND
|
DigiKey | IC DAC/AUDIO 24BIT 200K 16SSOP Min Qty: 1 Lead time: 6 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
10246 In Stock |
|
$0.8054 / $1.7800 | Buy Now |
|
DISTI #
595-PCM1780DBQR
|
Mouser Electronics | Audio D/A Converter ICs 24-Bit 192kHz Ster D elta-Sig Audio DAC A 595-PCM1780DBQ RoHS: Compliant | 5020 |
|
$0.7890 / $1.4300 | Buy Now |
|
DISTI #
V72:2272_07314078
|
Arrow Electronics | DAC 2-CH Delta-Sigma 24-bit 16-Pin SSOP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 6 Weeks Date Code: 2112 Container: Cut Strips | Americas - 148 |
|
$0.7648 / $1.0515 | Buy Now |
|
|
Bristol Electronics | Min Qty: 4 | 108 |
|
$1.0312 / $1.6500 | Buy Now |
|
|
Quest Components | 86 |
|
$0.8250 / $2.2000 | Buy Now | |
|
|
LCSC | 4.5V5.5V 24 I2S SSOP-16-150mil ADCs/DACs - Special Purpose ROHS | 1234 |
|
$0.9337 / $1.3449 | Buy Now |
Part Details for PCM1780DBQR
PCM1780DBQR CAD Models
PCM1780DBQR Part Data Attributes
|
|
PCM1780DBQR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
PCM1780DBQR
Texas Instruments
106dB SNR Stereo DAC (S/W Control) 16-SSOP
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOIC | |
| Package Description | SSOP-16 | |
| Pin Count | 16 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Analog Output Voltage-Max | 4.29 V | |
| Analog Output Voltage-Min | ||
| Converter Type | D/A CONVERTER | |
| Input Bit Code | 2'S COMPLEMENT BINARY | |
| Input Format | SERIAL | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e4 | |
| Length | 4.9 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Bits | 24 | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -25 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SSOP | |
| Package Equivalence Code | SSOP16,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Sample Rate | 0.192 MHz | |
| Seated Height-Max | 1.75 mm | |
| Supply Current-Max | 40 mA | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | OTHER | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.635 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 mm |
Alternate Parts for PCM1780DBQR
This table gives cross-reference parts and alternative options found for PCM1780DBQR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PCM1780DBQR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| PCM1782DBQR | Texas Instruments | $1.2277 | 106dB SNR Stereo DAC (S/W Control) 16-SSOP -25 to 85 | PCM1780DBQR vs PCM1782DBQR |
| PCM1782DBQ | Texas Instruments | $1.8158 | 106dB SNR Stereo DAC (S/W Control) 16-SSOP -25 to 85 | PCM1780DBQR vs PCM1782DBQ |
| PCM1781DBQ | Texas Instruments | $2.4862 | 106dB SNR Stereo DAC (H/W Control) 16-SSOP -25 to 85 | PCM1780DBQR vs PCM1781DBQ |
| PCM1680DBQ | Texas Instruments | $2.5860 | 105dB SNR 8-Channel Audio DAC 28-SSOP -25 to 70 | PCM1780DBQR vs PCM1680DBQ |
| PCM1780DBQRG4 | Texas Instruments | Check for Price | SERIAL INPUT LOADING, 24-BIT DAC, PDSO16, 0.150 INCH, GREEN, PLASTIC, SSOP-16 | PCM1780DBQR vs PCM1780DBQRG4 |
| PCM1781DBQRG4 | Texas Instruments | Check for Price | SERIAL INPUT LOADING, 24-BIT DAC, PDSO16, 0.150 INCH, GREEN, PLASTIC, SSOP-16 | PCM1780DBQR vs PCM1781DBQRG4 |
| PCM1782DBQG4 | Texas Instruments | Check for Price | 106dB SNR Stereo DAC (S/W Control) 16-SSOP -25 to 85 | PCM1780DBQR vs PCM1782DBQG4 |
| PCM1680DBQRG4 | Texas Instruments | Check for Price | SERIAL INPUT LOADING, 0.2us SETTLING TIME, 24-BIT DAC, PDSO28, 0.150 INCH,GREEN,PLASTIC,SSOP-28 | PCM1780DBQR vs PCM1680DBQRG4 |
PCM1780DBQR Frequently Asked Questions (FAQ)
-
The recommended power-up sequence is to apply VCC first, followed by VDD, and then the analog power supplies (VAA and VDA). This ensures that the internal voltage regulators are powered up correctly.
-
To configure the PCM1780 for master clock mode, set the MCKI pin to the desired clock frequency, and set the MCKO pin to output the clock signal. Then, set the BCK pin to output the bit clock signal, and set the LRCK pin to output the left-right clock signal.
-
The maximum input voltage for the analog inputs is 2.5Vrms. Exceeding this voltage may cause distortion or damage to the device.
-
To optimize the PCB layout for the PCM1780, keep the analog and digital power supplies separate, use a solid ground plane, and keep the analog input traces short and shielded. Also, place the device close to the analog input sources to minimize noise pickup.
-
The recommended decoupling capacitor value for the PCM1780 is 10uF to 22uF, placed as close as possible to the device's power pins.
