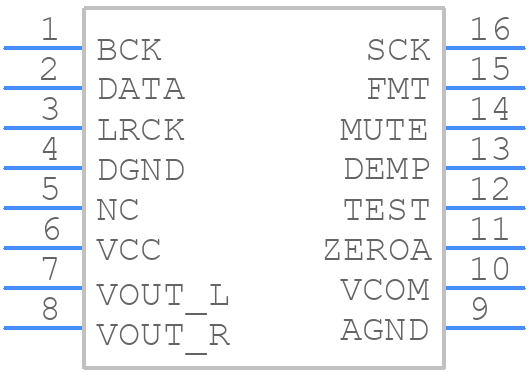

Part Symbol
-
Footprint
-

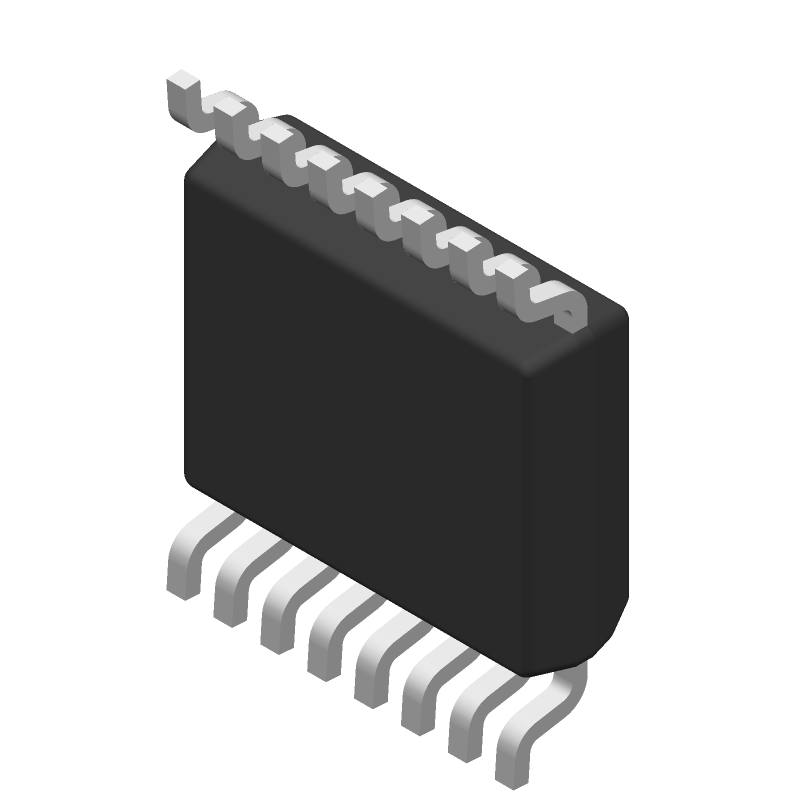

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for PCM1754DBQRG4 by Texas Instruments
Results Overview of PCM1754DBQRG4 by Texas Instruments
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (6 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
PCM1754DBQRG4 Information
PCM1754DBQRG4 by Texas Instruments is a Digital to Analog Converter.
Digital to Analog Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for PCM1754DBQRG4
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
595-PCM1754DBQRG4
|
Mouser Electronics | Audio D/A Converter ICs 24-Bit 192kHz Stereo Audio DAC ALT 595-PCM1754DBQR RoHS: Compliant | 1548 |
|
$0.7200 / $2.4800 | Buy Now |
|
|
Cytech Systems Limited | IC DAC/AUDIO 24BIT 200K 16SSOP | 500 |
|
RFQ | |
|
|
Vyrian | Converters | 1445 |
|
RFQ | |
|
|
Win Source Electronics | Multi-Level Delta-Sigma Audio Digital-to- Analog Converter | 125510 |
|
$0.1953 / $0.2522 | Buy Now |
Part Details for PCM1754DBQRG4
PCM1754DBQRG4 CAD Models
PCM1754DBQRG4 Part Data Attributes
|
|
PCM1754DBQRG4
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
PCM1754DBQRG4
Texas Instruments
106-dB SNR stereo audio digital-to-analog converter (DAC) (hardware control) 16-SSOP -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOIC | |
| Package Description | SSOP-16 | |
| Pin Count | 16 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Analog Output Voltage-Max | 4.4 V | |
| Analog Output Voltage-Min | ||
| Converter Type | D/A CONVERTER | |
| Input Bit Code | 2'S COMPLEMENT BINARY | |
| Input Format | SERIAL | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e4 | |
| Length | 4.9 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Bits | 24 | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SSOP | |
| Package Equivalence Code | SSOP16,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Sample Rate | 0.192 MHz | |
| Seated Height-Max | 1.75 mm | |
| Supply Current-Max | 21 mA | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | OTHER | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.635 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 mm |
Alternate Parts for PCM1754DBQRG4
This table gives cross-reference parts and alternative options found for PCM1754DBQRG4. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PCM1754DBQRG4, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| PCM1753DBQ | Texas Instruments | $0.9918 | 106-dB SNR stereo digital-to-analog converter (DAC) (software control) 16-SSOP -40 to 85 | PCM1754DBQRG4 vs PCM1753DBQ |
| PCM1754DBQ | Texas Instruments | $1.6421 | 106-dB SNR stereo audio digital-to-analog converter (DAC) (hardware control) 16-SSOP -40 to 85 | PCM1754DBQRG4 vs PCM1754DBQ |
| PCM1755DBQ | Texas Instruments | $1.6879 | 106-dB SNR stereo audio digital-to-analog converter (DAC) (software control) 16-SSOP -40 to 85 | PCM1754DBQRG4 vs PCM1755DBQ |
| PCM1754DBQG4 | Texas Instruments | Check for Price | 106-dB SNR stereo audio digital-to-analog converter (DAC) (hardware control) 16-SSOP -40 to 85 | PCM1754DBQRG4 vs PCM1754DBQG4 |
| PCM1753DBQG4 | Texas Instruments | Check for Price | 106dB SNR Stereo DAC (S/W Control) 16-SSOP -25 to 85 | PCM1754DBQRG4 vs PCM1753DBQG4 |
| PCM1755DBQG4 | Texas Instruments | Check for Price | 106dB SNR Stereo DAC (S/W Control) 16-SSOP -25 to 85 | PCM1754DBQRG4 vs PCM1755DBQG4 |
PCM1754DBQRG4 Frequently Asked Questions (FAQ)
-
The recommended power-up sequence is to apply VCC first, followed by VDD, and then the digital inputs. This ensures that the internal voltage regulators are powered up correctly and the device operates reliably.
-
To optimize the PCB layout, keep the analog and digital grounds separate, use a solid ground plane, and keep the analog signals away from the digital signals. Also, use a low-ESR capacitor for the VCC and VDD pins, and ensure that the decoupling capacitors are placed close to the device.
-
The maximum clock frequency that can be used with the PCM1754 is 192 kHz. However, the device can also operate at lower clock frequencies, such as 44.1 kHz, 48 kHz, and 96 kHz, depending on the application requirements.
-
To configure the PCM1754 for Master Clock mode, set the MCLK pin to the desired clock frequency, and set the BCK pin to the desired bit clock frequency. Then, set the WS pin to the desired word select frequency, and configure the device for the desired audio format (e.g., I2S, DSP, or TDM).
-
The recommended termination scheme for the PCM1754's digital outputs is to use a series resistor (e.g., 22 ohms) and a parallel capacitor (e.g., 10 pF) to ground. This helps to reduce electromagnetic interference (EMI) and improve signal integrity.
