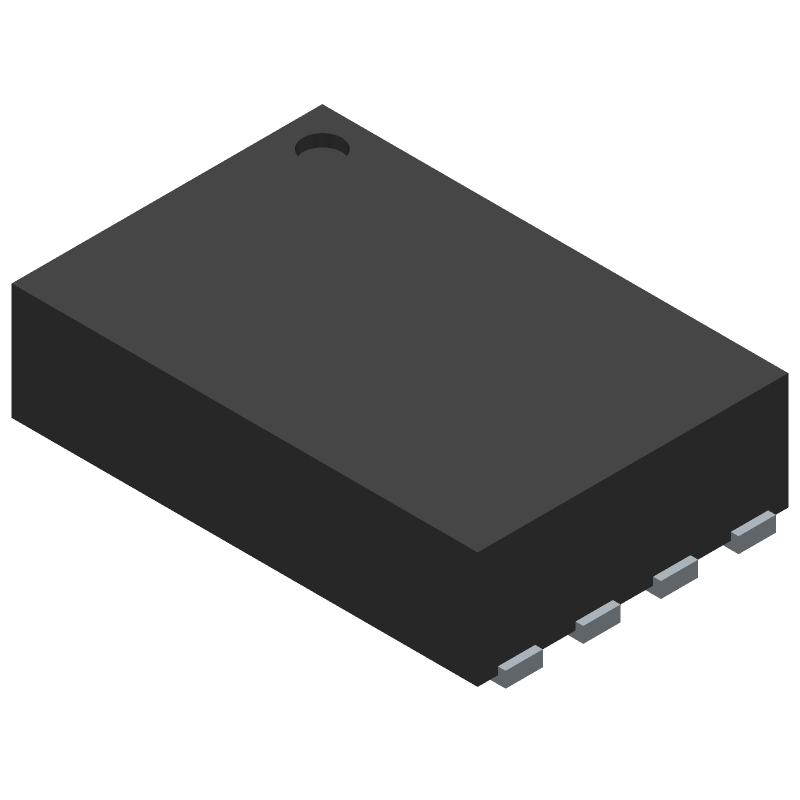

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for PCF85063TP/1Z by NXP Semiconductors
Results Overview of PCF85063TP/1Z by NXP Semiconductors
- Distributor Offerings: (22 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
PCF85063TP/1Z Information
PCF85063TP/1Z by NXP Semiconductors is a Timer or RTC.
Timers or RTCs are under the broader part category of Microcontrollers and Processors.
