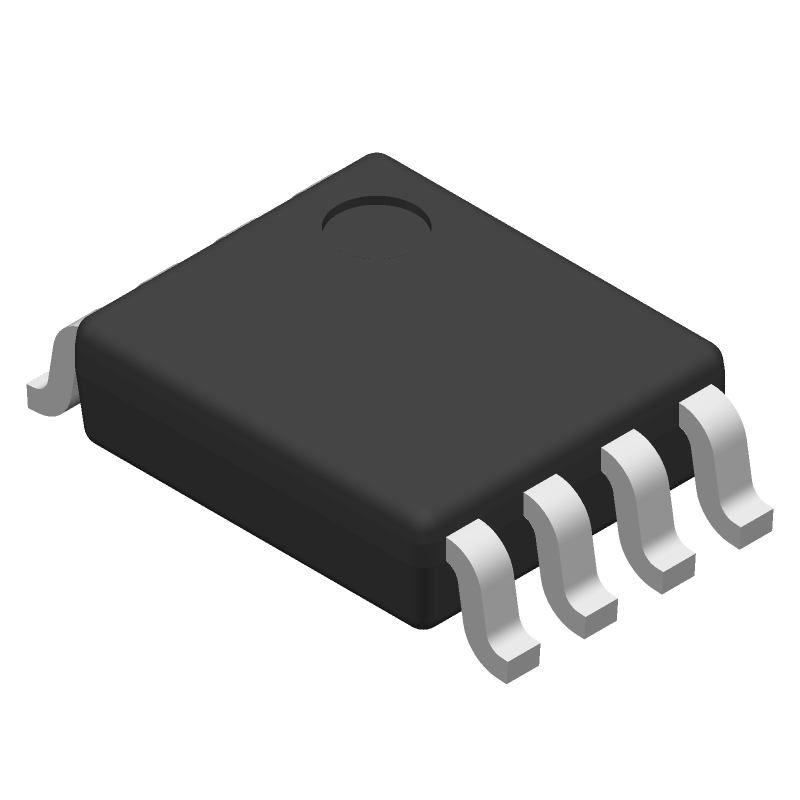

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for PCA9306DCURG4 by Texas Instruments
Results Overview of PCA9306DCURG4 by Texas Instruments
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Internet of Things (IoT)
Audio and Video Systems
Communication and Networking
PCA9306DCURG4 Information
PCA9306DCURG4 by Texas Instruments is an Other Interface IC.
Other Interface ICs are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for PCA9306DCURG4
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Ameya Holding Limited | IC VOLT-LEVEL TRANSLATOR US8 | 6000 |
|
RFQ | |
|
|
Vyrian | Interface ICs | 1180 |
|
RFQ | |
|
|
Win Source Electronics | IC VOLT-LEVEL TRANSLATOR US8 | 110860 |
|
$0.0963 / $0.1243 | Buy Now |
Part Details for PCA9306DCURG4
PCA9306DCURG4 CAD Models
PCA9306DCURG4 Part Data Attributes
|
|
PCA9306DCURG4
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
PCA9306DCURG4
Texas Instruments
2-bit bidirectional 400-kHz I2C/SMBus voltage level translator 8-VSSOP -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOIC | |
| Package Description | VSSOP-8 | |
| Pin Count | 8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Delay-Max | 2.1 ns | |
| Input Characteristics | STANDARD | |
| Interface IC Type | VOLTAGE LEVEL TRANSLATOR | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e4 | |
| Length | 2.3 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Bits | 1 | |
| Number of Functions | 2 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Characteristics | OPEN-DRAIN | |
| Output Latch or Register | NONE | |
| Output Polarity | TRUE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | VSSOP | |
| Package Equivalence Code | TSSOP8,.12,20 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 0.9 mm | |
| Supply Voltage-Max | 3.3 V | |
| Supply Voltage-Min | 1.2 V | |
| Supply Voltage-Nom | 1.8 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | NICKEL PALLADIUM GOLD | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 2 mm |
PCA9306DCURG4 Frequently Asked Questions (FAQ)
-
The maximum operating frequency of PCA9306DCURG4 is 400 kHz.
-
To ensure signal integrity, use a low-ESR capacitor (e.g., 0.1 μF) between VCC and GND, and keep the PCB traces as short as possible.
-
Yes, PCA9306DCURG4 can be used in a bidirectional bus, but you need to ensure that the direction control pin (DIR) is properly controlled to avoid bus contention.
-
The maximum voltage rating for PCA9306DCURG4 is 3.6 V, which is the maximum voltage that can be applied to the VCC pin.
-
To ensure proper operation, power up VCC before applying a signal to the bus, and power down VCC after removing the signal from the bus.
