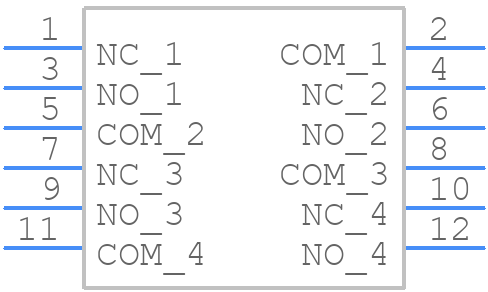

Part Symbol
-

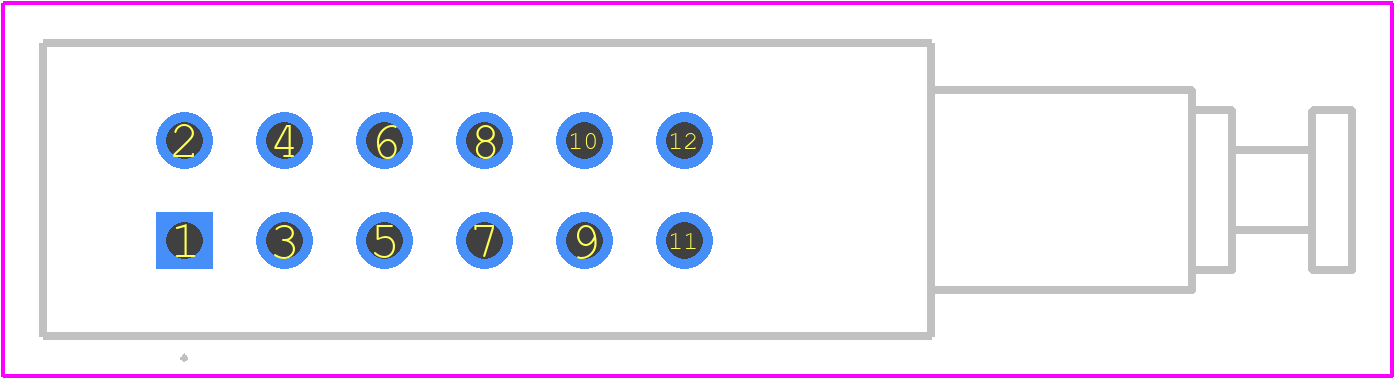

Footprint
-

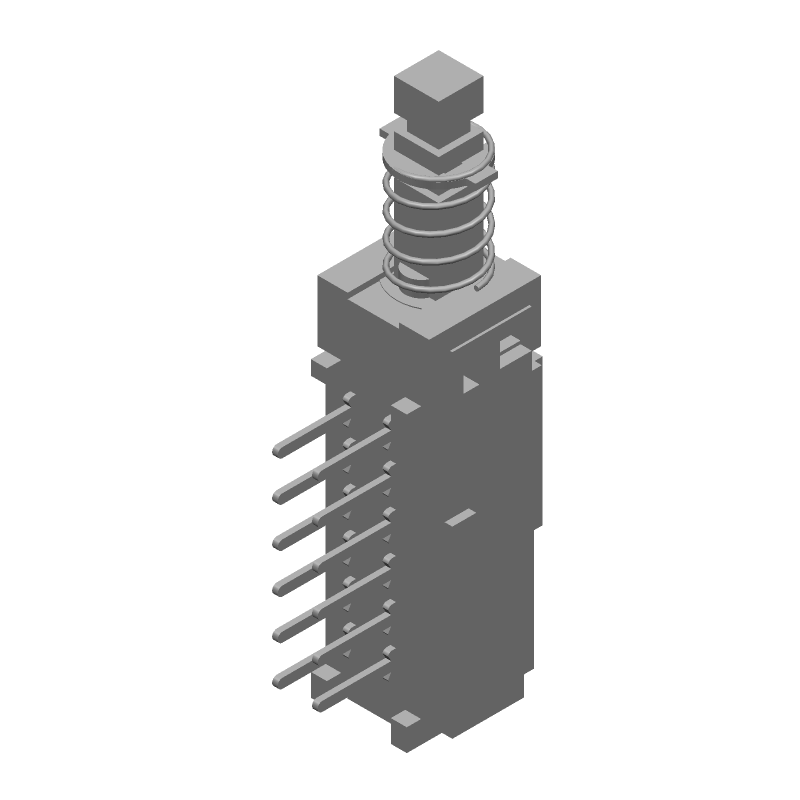

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for PBH4UOANAGX by E-Switch Inc
Results Overview of PBH4UOANAGX by E-Switch Inc
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Space Technology
Environmental Monitoring
Internet of Things (IoT)
Smart Cities
Agriculture Technology
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Medical Imaging
Consumer Electronics
Education and Research
Security and Surveillance
Aerospace and Defense
Healthcare
Robotics and Drones
PBH4UOANAGX Information
PBH4UOANAGX by E-Switch Inc is a Pushbutton Switch.
Pushbutton Switches are under the broader part category of Switches.
Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.
Price & Stock for PBH4UOANAGX
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
15N8413
|
Newark | Pushbutton Sw, 4Pdt, 0.1A/30Vdc, Th, Product Range:Pbh Series, Panel Cutout Diameter:-, Contact Configuration:4Pdt, Switch Operation:Momentary, Pushbutton Actuator Style:Plunger For Cap, Actuator/Cap Colour:-, Contact Voltage Vac:-Rohs Compliant: Yes |E-Switch PBH4UOANAGX RoHS: Compliant Min Qty: 576 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$0.6850 / $0.7890 | Buy Now |
|
DISTI #
EG2658-ND
|
DigiKey | SWITCH PUSH 4PDT 0.1A 30V Min Qty: 1 Lead time: 13 Weeks Container: Bulk | Temporarily Out of Stock |
|
$0.5955 / $0.9300 | Buy Now |
|
DISTI #
612-PBMTH4UOANAGX
|
Mouser Electronics | Pushbutton Switches 4PDT Momentary No cap RoHS: Compliant | 0 |
|
$0.5920 / $0.9200 | Order Now |
|
DISTI #
74828888
|
RS | Pushbutton Switch, 4PDT, ON-(ON), 100 mA, 30V DC, PC Pin, PBH Series Min Qty: 576 Package Multiple: 1 Lead time: 14 Weeks, 0 Days Container: Bulk | 0 |
|
$1.0320 | RFQ |
|
DISTI #
PBH4UOANAGX
|
TME | Switch: push-button, Pos: 2, 4PDT, 0.1A/30VDC, ON-(ON), THT Min Qty: 1 | 491 |
|
$0.5900 / $0.8200 | Buy Now |
|
DISTI #
PBH4UOANAGX
|
IBS Electronics | PBH4UOANAGX by E-SWITCH is a pushbutton switch with a momentary function, SPST circuit, 1A 30VDC rating, and a panel mount design. It features a round actuator and is suitable for various applications. Min Qty: 576 Package Multiple: 1 | 0 |
|
$0.5655 / $0.5980 | Buy Now |
|
|
LCSC | 10000 times 100mA No lock 30V 2.8N Plugin Keylock Switches ROHS | 11 |
|
$1.0954 / $1.6204 | Buy Now |
Part Details for PBH4UOANAGX
PBH4UOANAGX CAD Models
PBH4UOANAGX Part Data Attributes
|
|
PBH4UOANAGX
E-Switch Inc
Buy Now
Datasheet
|
Compare Parts:
PBH4UOANAGX
E-Switch Inc
Pushbutton Switch, Momentary, 0.1A, 30VDC, 12 PCB Hole Cnt, Solder Terminal, Through Hole-right Angle,
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | E-SWITCH INC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.50.90.31 | |
| Samacsys Manufacturer | E-Switch | |
| Actuator Length | 0.413 inch | |
| Actuator Material | POLYOXYMETHYLENE | |
| Actuator Travel | 2.9972 mm | |
| Actuator Type | PUSHBUTTON | |
| Body Breadth | 9.0932 mm | |
| Body Height | 22.1996 mm | |
| Body Length or Diameter | 7.2898 mm | |
| Center Contact Material | COPPER ALLOY | |
| Center Contact Plating | SILVER | |
| Contact Current(DC)-Max | 0.1 A | |
| Contact (DC) Max Rating R Load | 0.1A@30VDC | |
| Contact Resistance | 0.1 mΩ | |
| Contact Timing | BREAK-BEFORE-MAKE | |
| Contact Voltage(DC)-Max | 30 V | |
| Dielectric Withstand Volts | 250VAC V | |
| Electrical Life | 10000 Cycle(s) | |
| End Contact Plating | SILVER | |
| Housing Material | POLYBUTYLENE TEREPHTHALATE | |
| Illumination | NON-ILLUMINATED | |
| Insulation Resistance | 100000000 Ω | |
| Insulator Material | POLYAMIDE | |
| Mounting Feature | THROUGH HOLE-RIGHT ANGLE | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | -20 °C | |
| PCB Hole Count | 12 | |
| Surface Mount | NO | |
| Switch Action | MOMENTARY | |
| Switch Type | PUSHBUTTON SWITCH | |
| Terminal Length | 0.157 inch | |
| Terminal Material | BRASS | |
| Termination Type | SOLDER |
PBH4UOANAGX Frequently Asked Questions (FAQ)
-
The recommended operating temperature range for the PBH4UOANAGX is -20°C to 85°C.
-
Yes, the PBH4UOANAGX is compatible with lead-free soldering processes, making it suitable for RoHS-compliant applications.
-
The typical actuation force required for the PBH4UOANAGX is around 1.5 N to 2.5 N, depending on the specific configuration and application.
-
Yes, the PBH4UOANAGX is designed to withstand high-vibration and high-shock environments, making it suitable for industrial, automotive, and other demanding applications.
-
Yes, the PBH4UOANAGX is available in various termination options, including through-hole, surface-mount, and wire-lead configurations, to accommodate different PCB designs and assembly requirements.
