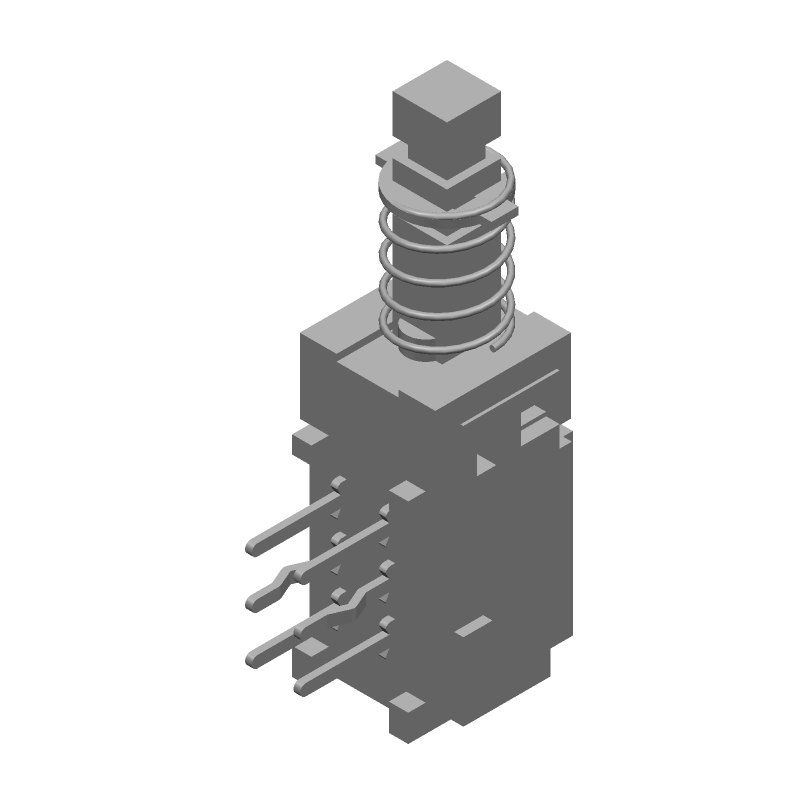

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for PBH2UEESNPNAGX by E-Switch Inc
Results Overview of PBH2UEESNPNAGX by E-Switch Inc
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
PBH2UEESNPNAGX Information
PBH2UEESNPNAGX by E-Switch Inc is a Pushbutton Switch.
Pushbutton Switches are under the broader part category of Switches.
Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.
Price & Stock for PBH2UEESNPNAGX
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
57AK3476
|
Newark | Pushbutton Sw, Dpdt-Db, 0.1A/30V, Ra Th Rohs Compliant: Yes |E-Switch PBH2UEESNPNAGX RoHS: Compliant Min Qty: 10 Package Multiple: 1 Date Code: 0 Container: Bulk | 795 |
|
$0.7030 / $0.8900 | Buy Now |
|
DISTI #
612-PBH2UEESNPNAGX
|
Mouser Electronics | Pushbutton Switches 2 POLE SNP MT PC PIN RoHS: Compliant | 0 |
|
$0.5380 / $0.8100 | Order Now |
|
DISTI #
72095825
|
RS | Pushbutton Switch, DPDT, ON-ON, Plunger No Cap,100mA,30VDC, Snap-In PC, PBH Series Min Qty: 1 Package Multiple: 1 Container: Bulk | 169 |
|
$1.1700 / $1.6720 | Buy Now |
|
DISTI #
75634947
|
RS | Pushbutton Switch, DPDT, ON-ON, Plunger No Cap,100mA,30VDC, Snap-In PC, PBH Series Min Qty: 1 Package Multiple: 1 Lead time: 3 Weeks, 0 Days Container: Bulk | 0 |
|
$1.1700 / $1.6720 | RFQ |
|
DISTI #
PBH2UEESNPNAGX
|
TME | Switch: push-button, Pos: 2, DPDT, 0.1A/30VDC, ON-ON, THT Min Qty: 1 | 999 |
|
$0.4720 / $0.7340 | Buy Now |
Part Details for PBH2UEESNPNAGX
PBH2UEESNPNAGX CAD Models
PBH2UEESNPNAGX Part Data Attributes
|
|
PBH2UEESNPNAGX
E-Switch Inc
Buy Now
Datasheet
|
Compare Parts:
PBH2UEESNPNAGX
E-Switch Inc
Pushbutton Switch, DPDT, Latched, 0.1A, 30VDC, 6 PCB Hole Cnt, Solder Terminal, Through Hole-right Angle
|
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | E-SWITCH INC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.50.90.33 | |
| Samacsys Manufacturer | E-Switch | |
| Actuator Length | 0.413 inch | |
| Actuator Material | POLYOXYMETHYLENE | |
| Actuator Travel | 2.9972 mm | |
| Actuator Type | PUSHBUTTON | |
| Body Breadth | 9.0932 mm | |
| Body Height | 14.7066 mm | |
| Body Length or Diameter | 7.2898 mm | |
| Center Contact Material | COPPER ALLOY | |
| Center Contact Plating | SILVER | |
| Contact Current(DC)-Max | 0.1 A | |
| Contact (DC) Max Rating R Load | 0.1A@30VDC | |
| Contact Resistance | 0.1 mΩ | |
| Contact Timing | BREAK-BEFORE-MAKE | |
| Contact Voltage(DC)-Max | 30 V | |
| Dielectric Withstand Volts | 250VAC V | |
| Electrical Life | 10000 Cycle(s) | |
| End Contact Material | COPPER ALLOY | |
| End Contact Plating | SILVER | |
| Housing Material | POLYBUTYLENE TEREPHTHALATE | |
| Illumination | NON-ILLUMINATED | |
| Insulation Resistance | 100000000 Ω | |
| Insulator Material | POLYAMIDE | |
| Mounting Feature | THROUGH HOLE-RIGHT ANGLE | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | -20 °C | |
| PCB Hole Count | 6 | |
| Surface Mount | NO | |
| Switch Action | LATCHED | |
| Switch Function | DPDT | |
| Switch Type | PUSHBUTTON SWITCH | |
| Terminal Length | 0.157 inch | |
| Terminal Material | COPPER ALLOY | |
| Termination Type | SOLDER |
PBH2UEESNPNAGX Frequently Asked Questions (FAQ)
-
The recommended operating temperature range for the PBH2UEESNPNAGX is -20°C to 85°C.
-
To ensure proper mounting, use a soldering iron with a temperature of 250°C to 260°C, and apply a moderate amount of solder to the pins. Make sure the switch is aligned with the PCB pads and gently press it into place.
-
The maximum current rating for the PBH2UEESNPNAGX is 50mA at 12VDC.
-
Use a soft-bristled brush or a lint-free cloth to gently remove any debris or contaminants from the switch. Avoid using harsh chemicals or solvents, as they may damage the switch's components.
-
The expected lifespan of the PBH2UEESNPNAGX is approximately 100,000 cycles, depending on operating conditions and usage.
