3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for PAT1220-C-2DB-T5 by Susumu Co Ltd
Results Overview of PAT1220-C-2DB-T5 by Susumu Co Ltd
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (2 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Renewable Energy
Automotive
PAT1220-C-2DB-T5 Information
PAT1220-C-2DB-T5 by Susumu Co Ltd is an RF/Microwave Attenuator.
RF/Microwave Attenuators are under the broader part category of RF and Microwave Components.
RF and Microwave Engineering focuses on the design and operation of devices that transmit or receive radio waves. The main distinction between RF and microwave engineering is their wavelength, which influences how energy is transmitted and used in various applications. Read more about RF and Microwave Components on our RF and Microwave part category page.
Price & Stock for PAT1220-C-2DB-T5
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
05R5464
|
Newark | Chip Attenuator, 0Hz-10Ghz, 2Db, 2012, Frequency Max:10Ghz, Frequency Min:0Hz, Attenuation - Typical:2Db, Rf Attenuator Type:-, Insertion Loss:-, Control Voltage Min:-, Control Voltage Max:-, Rf Input Power:-, No. Of Pins:3Pins Rohs Compliant: Yes |Susumu PAT1220-C-2DB-T5 RoHS: Compliant Min Qty: 5000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.1220 / $0.1880 | Buy Now |
|
DISTI #
72AK4952
|
Newark | Chip Attenuator, 0Hz-10Ghz, 2Db, 2012, Frequency Max:10Ghz, Frequency Min:0Hz, Attenuation - Typical:2Db, Rf Attenuator Type:-, Insertion Loss:-, Control Voltage Min:-, Control Voltage Max:-, Rf Input Power:-, No. Of Pins:3Pins Rohs Compliant: Yes |Susumu PAT1220-C-2DB-T5 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 0 |
|
$0.2060 / $0.3300 | Buy Now |
|
DISTI #
PAT122CT-ND
|
DigiKey | RF ATTENUATOR 2DB 50OHM 0805 Min Qty: 1 Lead time: 32 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
7406 In Stock |
|
$0.1610 / $0.3100 | Buy Now |
|
DISTI #
754-PAT1220C-2DBT5
|
Mouser Electronics | Attenuators 2dB 50ohm RoHS: Compliant | 0 |
|
$0.1410 / $0.3200 | Order Now |
|
DISTI #
PAT1220-C-2DB-T5
|
IBS Electronics | PAT1220-C-2DB-T5 by Susumu SCT is a 50-ohm 2 dB 10 GHz 0805 surface mount chip attenuator from the PAT1220 series, designed for high-frequency applications with precision and reliability. Min Qty: 5000 Package Multiple: 1 | 0 |
|
$0.1430 | Buy Now |
|
|
Vyrian | RF & Microwave | 14658 |
|
RFQ |
Part Details for PAT1220-C-2DB-T5

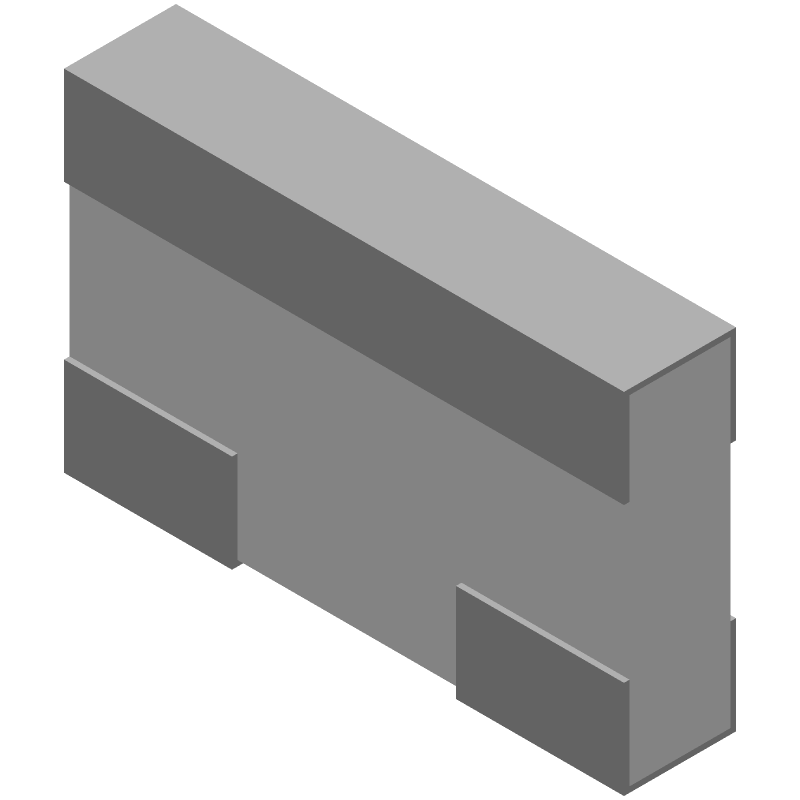

PAT1220-C-2DB-T5 CAD Models
PAT1220-C-2DB-T5 Part Data Attributes
|
|
PAT1220-C-2DB-T5
Susumu Co Ltd
Buy Now
Datasheet
|
Compare Parts:
PAT1220-C-2DB-T5
Susumu Co Ltd
ATTENUATOR 2 DB 50 OHM 0805 SMD
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | SUSUMU CO LTD | |
| Package Description | ROHS COMPLIANT PACKAGE-3 | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Susumu | |
| Attenuation-Nom | 2 dB | |
| Characteristic Impedance | 50 Ω | |
| Construction | COMPONENT | |
| Input Power-Max (CW) | 20 dBm | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 3 | |
| Operating Frequency-Max | 10000 MHz | |
| Operating Frequency-Min | ||
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| RF/Microwave Device Type | FIXED ATTENUATOR | |
| Surface Mount | YES | |
| Terminal Finish | Matte Tin (Sn) | |
| VSWR-Max | 1.3 |
Alternate Parts for PAT1220-C-2DB-T5
This table gives cross-reference parts and alternative options found for PAT1220-C-2DB-T5. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PAT1220-C-2DB-T5, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| PAT1220-C-2DB-T | Thin Film Technology Corp (TFT) | Check for Price | 0 MHz - 10000 MHz RF/MICROWAVE FIXED ATTENUATOR, SURFACE MOUNT PACKAGE-4 | PAT1220-C-2DB-T5 vs PAT1220-C-2DB-T |
PAT1220-C-2DB-T5 Frequently Asked Questions (FAQ)
-
The recommended land pattern for the PAT1220-C-2DB-T5 is a rectangular pad with a size of 1.2mm x 0.8mm, with a non-solder mask defined (NSMD) pad shape.
-
Yes, the PAT1220-C-2DB-T5 is rated for operation up to 150°C, making it suitable for high-temperature applications. However, the device's electrical characteristics may degrade at higher temperatures.
-
Yes, the PAT1220-C-2DB-T5 is compatible with lead-free soldering processes, including SAC305 and Sn96.5Ag3Cu0.5.
-
The PAT1220-C-2DB-T5 has an MSL rating of 1, indicating that it can withstand exposure to moisture without damage.
-
Yes, the PAT1220-C-2DB-T5 is suitable for high-frequency applications up to 1 GHz, due to its low equivalent series resistance (ESR) and high self-resonant frequency.
