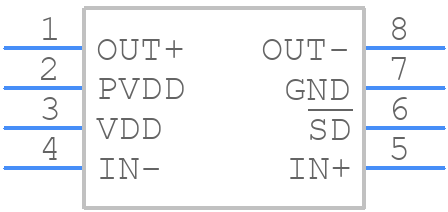

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for PAM8303CBSC by Diodes Incorporated
Results Overview of PAM8303CBSC by Diodes Incorporated
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (3 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
Entertainment and Gaming
Price & Stock for PAM8303CBSC
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
64AH7091
|
Newark | Audio Power Amp, D, -40 To 85Deg C Rohs Compliant: Yes |Diodes Inc. PAM8303CBSC RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 6617 |
|
$0.3160 / $0.9800 | Buy Now |
|
DISTI #
PAM8303CBSCDICT-ND
|
DigiKey | IC AMP CLASS D MONO 3W 8MSOP Min Qty: 1 Lead time: 54 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
5407 In Stock |
|
$0.2455 / $0.5900 | Buy Now |
|
DISTI #
PAM8303CBSC
|
Avnet Americas | Audio Power Amplifier, 3W x 1 @ 4Ohm, D, 1 Channels, 2.8V to 5.5V, MSOP, 8 Pins - Tape and Reel (Alt: PAM8303CBSC) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 111 Weeks, 0 Days Container: Reel | 0 |
|
$0.2178 / $0.2275 | Buy Now |
|
DISTI #
621-PAM8303CBSC
|
Mouser Electronics | Audio Amplifiers 3W FILTERLESS MONO CLASSD AUDIO PWR AMP RoHS: Compliant | 4590 |
|
$0.2450 / $0.5900 | Buy Now |
|
DISTI #
70438405
|
RS | Class-D Mono Audio Amp Low EMI 3W MSOP-8 Min Qty: 10 Package Multiple: 1 Container: Bulk | 0 |
|
$0.9700 / $1.1400 | RFQ |
|
|
Bristol Electronics | 16 |
|
RFQ | ||
|
DISTI #
PAM8303CBSC
|
TME | IC: audio amplifier, Pout: 3W, low noise,thermal protection, Ch: 1 Min Qty: 1 | 0 |
|
$0.2940 / $0.7360 | RFQ |
|
DISTI #
PAM8303CBSC
|
Avnet Silica | Audio Power Amplifier 3W x 1 4Ohm D 1 Channels 28V to 55V MSOP 8 Pins (Alt: PAM8303CBSC) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 10 Weeks, 0 Days | Silica - 7500 |
|
Buy Now | |
|
|
New Advantage Corporation | PAM LOW VOLTAGE AUDIO MSOP-8 T&R 2.5K RoHS: Compliant Min Qty: 1 Package Multiple: 2500 | 5000 |
|
RFQ |
Part Details for PAM8303CBSC
PAM8303CBSC CAD Models
PAM8303CBSC Part Data Attributes
|
|
PAM8303CBSC
Diodes Incorporated
Buy Now
Datasheet
|
Compare Parts:
PAM8303CBSC
Diodes Incorporated
Audio Amplifier, 1 Func, PDSO8,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Not Recommended | |
| Ihs Manufacturer | DIODES INC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Factory Lead Time | 111 Weeks | |
| Samacsys Manufacturer | Diodes Incorporated | |
| Consumer IC Type | CLASS D AUDIO AMPLIFIER | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP8,.19 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 2.8 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.635 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
Alternate Parts for PAM8303CBSC
This table gives cross-reference parts and alternative options found for PAM8303CBSC. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PAM8303CBSC, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| PAM8303CBYC | Diodes Incorporated | $0.2564 | Audio Amplifier, 1 Func, PDSO8, | PAM8303CBSC vs PAM8303CBYC |
| PAM8303DBSC | Diodes Incorporated | $0.4462 | Audio Amplifier, PDSO8, | PAM8303CBSC vs PAM8303DBSC |
| PAM8303CAZN | Diodes Incorporated | Check for Price | Audio Amplifier, 1 Func, PBGA9, | PAM8303CBSC vs PAM8303CAZN |
PAM8303CBSC Frequently Asked Questions (FAQ)
-
A good PCB layout for the PAM8303CBSC involves keeping the audio signal traces short and away from the power supply lines, using a solid ground plane, and placing the decoupling capacitors close to the IC.
-
The gain setting of the PAM8303CBSC can be optimized by adjusting the gain resistor (Rg) value based on the input signal level and desired output power. A higher gain setting can be achieved by using a lower Rg value, but this may also increase noise and distortion.
-
The maximum power dissipation of the PAM8303CBSC is dependent on the ambient temperature and the thermal resistance of the PCB. According to the datasheet, the maximum power dissipation is 2.5W at 25°C ambient temperature, but this can be derated to 1.25W at 85°C ambient temperature.
-
To protect the PAM8303CBSC from overvoltage and ESD, it is recommended to use a voltage regulator to regulate the supply voltage, and to add ESD protection diodes and resistors to the input and output pins.
-
The recommended operating voltage range for the PAM8303CBSC is 4.5V to 5.5V, but it can operate down to 3.5V with reduced performance.
