Part Details for PAD002-T764113S by Bourns Inc
Results Overview of PAD002-T764113S by Bourns Inc
- Distributor Offerings: (14 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
PAD002-T764113S Information

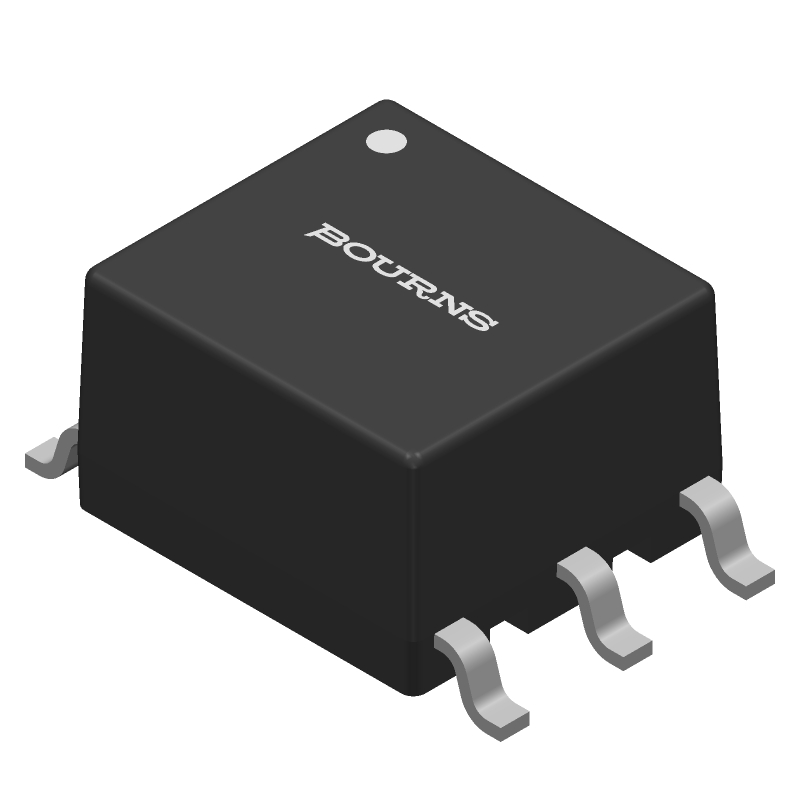

PAD002-T764113S by Bourns Inc is an SMPS Transformer.
SMPS Transformers are under the broader part category of Transformers.
Transformers are passive components that transfer electrical energy between circuits and adjust voltage levels through electromagnetic induction. They are crucial for applications like power transmission and reducing voltage for low-voltage devices. Read more about Transformers on our Transformers part category page.
Price & Stock for PAD002-T764113S
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
26AK6600
|
Newark | Push-Pull Func-Insultn 5V 1:1.3 1.5W /Tape & Reel - 13" Reel Rohs Compliant: Yes |Bourns PAD002-T764113S RoHS: Compliant Min Qty: 6400 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$1.0700 / $1.1100 | Buy Now |
|
DISTI #
73AJ9831
|
Newark | Pcb Transformer, Push-Pull, 3.1Kv Rohs Compliant: Yes |Bourns PAD002-T764113S RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 0 |
|
$1.7900 / $2.4000 | Buy Now |
|
DISTI #
118-PAD002-T764113SCT-ND
|
DigiKey | XFMR FWD P-P DC/DC CONV 475UH SM Min Qty: 1 Lead time: 20 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
6361 In Stock |
|
$1.3630 / $2.0000 | Buy Now |
|
DISTI #
PAD002-T764113S
|
Avnet Americas | Pulse Transformer Push-Pull Isolation Transformer 1:1.3 3100VAC 550 mOhm Prim. 750 mOhm Sec. 11V/us SMD T/R - Tape and Reel (Alt: PAD002-T764113S) Min Qty: 6400 Package Multiple: 800 Lead time: 20 Weeks, 0 Days Container: Reel | 0 |
|
$1.0185 / $1.0608 | Buy Now |
|
DISTI #
652-PAD002-T764113S
|
Mouser Electronics | Power Transformers Push-Pull Func-Insultn 5V 1:1.3 1.5W RoHS: Compliant | 6372 |
|
$1.3600 / $2.0000 | Buy Now |
|
DISTI #
V72:2272_26161884
|
Arrow Electronics | Power Transformer 1:1.3 3100Vrms 2W 6 Terminal Gull Wing SMD RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 20 Weeks Date Code: 2126 Container: Cut Strips | Americas - 82 |
|
$1.1827 / $1.4689 | Buy Now |
|
|
Onlinecomponents.com | Push-Pull Insulation Transformer -5V - 1:1.3 - 1.5W RoHS: Compliant |
373 Partner Stock |
|
$1.0700 / $3.3440 | Buy Now |
|
DISTI #
86265958
|
Verical | Power Transformer 1:1.3 3100Vrms 2W 6 Terminal Gull Wing SMD RoHS: Compliant Min Qty: 58 Package Multiple: 1 | Americas - 373 |
|
$1.0500 / $1.0800 | Buy Now |
|
DISTI #
59168908
|
Verical | Power Transformer 1:1.3 3100Vrms 2W 6 Terminal Gull Wing SMD RoHS: Compliant Min Qty: 6 Package Multiple: 1 Date Code: 2126 | Americas - 82 |
|
$1.1827 / $1.4689 | Buy Now |
|
DISTI #
PAD002-T764113S
|
TTI | Power Transformers Push-Pull Func-Insultn 5V 1:1.3 1.5W pbFree: Pb-Free Min Qty: 6400 Package Multiple: 800 Container: Reel | Americas - 0 |
|
$1.3900 | Buy Now |
Part Details for PAD002-T764113S
PAD002-T764113S CAD Models
PAD002-T764113S Part Data Attributes
|
|
PAD002-T764113S
Bourns Inc
Buy Now
Datasheet
|
Compare Parts:
PAD002-T764113S
Bourns Inc
SMPS Transformer, 1W,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | BOURNS INC | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 20 Weeks | |
| Samacsys Manufacturer | Bourns | |
| Additional Feature | HEIGHT DIMENSION INCLUDES TERMINAL ALSO | |
| Height | 4 mm | |
| Length | 7.1 mm | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Primary Winding | 1 | |
| Number of Secondary Winding | 1 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Packing Method | TR, EMBOSSED, 13 INCH | |
| Power Rating | 1 W | |
| Primary Inductance | 475 µH | |
| Surface Mount | YES | |
| Transformer Type | SMPS TRANSFORMER | |
| Width | 6.55 mm |
PAD002-T764113S Frequently Asked Questions (FAQ)
-
Bourns provides a recommended PCB layout and land pattern in their application note AN164, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
-
The PAD002-T764113S has a maximum operating temperature of 125°C. Ensure that your PCB design takes into account thermal management, such as providing adequate heat dissipation paths and avoiding thermal hotspots. You can also consider using thermal vias or heat sinks if necessary.
-
Bourns recommends using a reflow soldering process with a peak temperature of 260°C for 10-30 seconds. It's essential to follow the recommended soldering profile to prevent damage to the component and ensure reliable connections.
-
Follow the recommended cleaning and handling procedures outlined in IPC-A-610 and IPC-J-STD-001. Ensure that the component is handled in a clean and dry environment, and that all assembly personnel wear ESD protection to prevent damage.
-
The PAD002-T764113S is designed to meet the reliability and durability requirements of automotive and industrial applications. Bourns provides a reliability report and qualification data on their website, which outlines the component's performance under various environmental and operating conditions.
