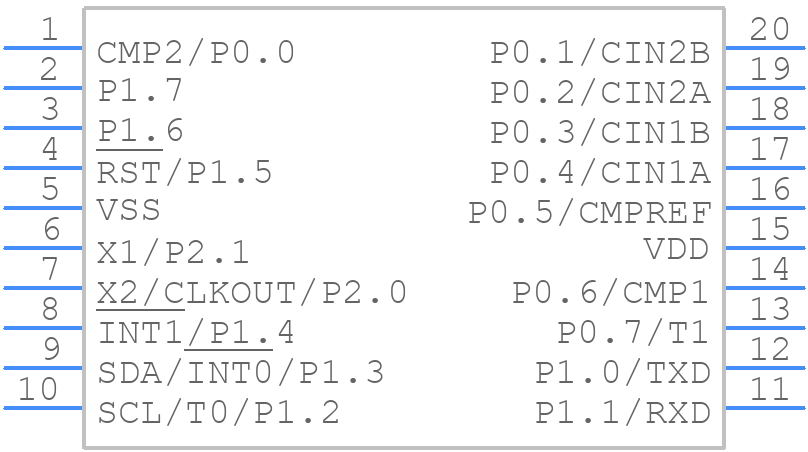

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for P87LPC764FD,512 by NXP Semiconductors
Results Overview of P87LPC764FD,512 by NXP Semiconductors
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Industrial Automation
Financial Technology (Fintech)
Smart Cities
Transportation and Logistics
Agriculture Technology
Telecommunications
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Automotive
Education and Research
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Healthcare
Renewable Energy
Entertainment and Gaming
Robotics and Drones
P87LPC764FD,512 Information
P87LPC764FD,512 by NXP Semiconductors is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| P87LPC764FDH | Rochester Electronics LLC | P87LPC764 - 80C51, 8-Bit Microcontroller | |
| P87LPC764FD | Rochester Electronics LLC | P87LPC764 - 80C51, 8-Bit Microcontroller |
Price & Stock for P87LPC764FD,512
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
P87LPC764FD,512
|
Avnet Silica | MCU 8bit 87LP 80C51 CISC 4KB EPROM 5V 20Pin SO Tube (Alt: P87LPC764FD,512) RoHS: Compliant Min Qty: 38 Package Multiple: 38 | Silica - 0 |
|
Buy Now | |
|
DISTI #
P87LPC764FD,512
|
EBV Elektronik | MCU 8bit 87LP 80C51 CISC 4KB EPROM 5V 20Pin SO Tube (Alt: P87LPC764FD,512) RoHS: Compliant Min Qty: 38 Package Multiple: 38 | EBV - 0 |
|
Buy Now |
Part Details for P87LPC764FD,512
P87LPC764FD,512 CAD Models
P87LPC764FD,512 Part Data Attributes
|
|
P87LPC764FD,512
NXP Semiconductors
Buy Now
Datasheet
|
Compare Parts:
P87LPC764FD,512
NXP Semiconductors
P87LPC764 - Low power, low price, low pin count (20 pin) microcontroller with 4 kbyte OTP SOP 20-Pin
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | NXP SEMICONDUCTORS | |
| Part Package Code | SOP | |
| Package Description | 7.50 MM, PLASTIC, MS-013, SOT-163-1, SO-20 | |
| Pin Count | 20 | |
| Manufacturer Package Code | SOT163-1 | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.31.00.01 | |
| Samacsys Manufacturer | NXP | |
| Has ADC | NO | |
| Additional Feature | OPERATES AT 2.7 V MINIMUM SUPPLY @ 10 MHZ | |
| Address Bus Width | ||
| Bit Size | 8 | |
| CPU Family | 8051 | |
| Clock Frequency-Max | 20 MHz | |
| DAC Channels | NO | |
| DMA Channels | NO | |
| External Data Bus Width | ||
| JESD-30 Code | R-PDSO-G20 | |
| JESD-609 Code | e4 | |
| Length | 12.8 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of I/O Lines | 18 | |
| Number of Terminals | 20 | |
| On Chip Program ROM Width | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | NO | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP20,.4 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| RAM (bytes) | 128 | |
| ROM (words) | 4096 | |
| ROM Programmability | OTPROM | |
| Seated Height-Max | 2.65 mm | |
| Speed | 20 MHz | |
| Supply Current-Max | 25 mA | |
| Supply Voltage-Max | 6 V | |
| Supply Voltage-Min | 5 V | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 7.5 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER |
