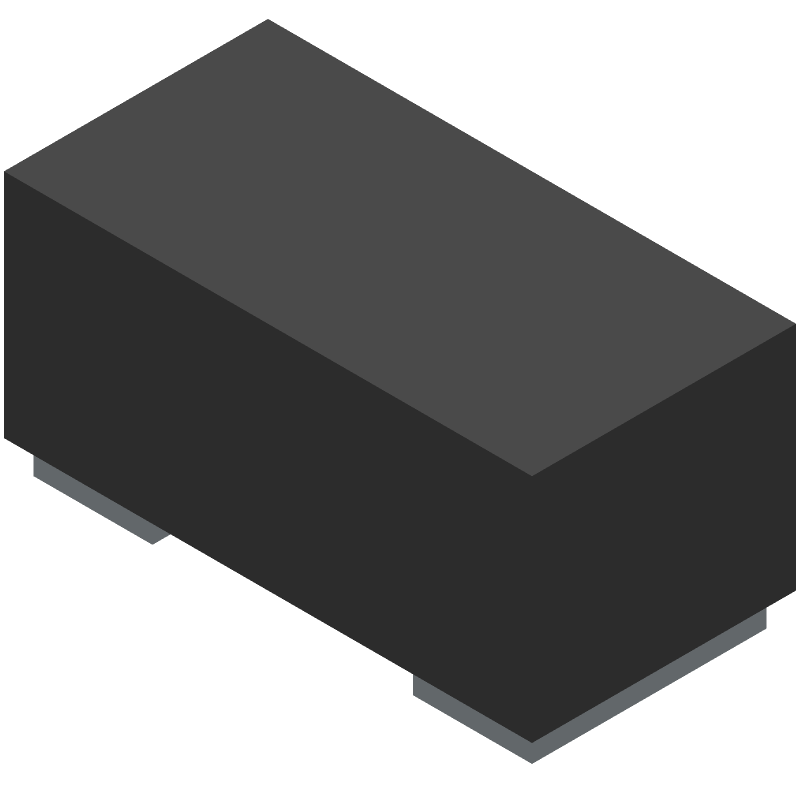

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for OSY50603C1E by OptoSupply Limited
Results Overview of OSY50603C1E by OptoSupply Limited
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Space Technology
Aerospace and Defense
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
Robotics and Drones
OSY50603C1E Information
OSY50603C1E by OptoSupply Limited is a Visible LED.
Visible LEDs are under the broader part category of Optoelectronics.
Optoelectronic components work to detect, generate, and control light. They can essentially produce and/or react to light. Read more about Optoelectronics on our Optoelectronics part category page.
Price & Stock for OSY50603C1E
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
88086674
|
Verical | OSY50603C1E Min Qty: 2100 Package Multiple: 10 | Americas - 14110 |
|
$0.0304 / $0.0335 | Buy Now |
|
DISTI #
OSY50603C1E
|
TME | LED, SMD, 0603, yellow, 15÷50mcd, 1.6x0.8x0.6mm, 120°, 5mA, 48mW Min Qty: 10 | 6400 |
|
$0.0244 / $0.0800 | Buy Now |
Part Details for OSY50603C1E
OSY50603C1E CAD Models
OSY50603C1E Part Data Attributes
|
|
OSY50603C1E
OptoSupply Limited
Buy Now
Datasheet
|
Compare Parts:
OSY50603C1E
OptoSupply Limited
Single Color LED, Yellow, 1.2mm,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Contact Manufacturer | |
| Ihs Manufacturer | OPTOSUPPLY LTD | |
| Reach Compliance Code | unknown | |
| Samacsys Manufacturer | OptoSupply | |
| Color | YELLOW | |
| Configuration | SINGLE | |
| Forward Current-Max | 0.02 A | |
| Forward Voltage-Max | 2.4 V | |
| Luminous Intensity-Min | 0.015 cd | |
| Luminous Intensity-Nom | 32.5 mcd | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Functions | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Optoelectronic Device Type | SINGLE COLOR LED | |
| Overall Height | 0.6 mm | |
| Packing Method | TR, 7 INCH | |
| Reverse Voltage-Max | 5 V | |
| Shape | RECTANGULAR | |
| Size | 1.2 mm | |
| Surface Mount | YES | |
| Terminal Pitch | 1.5 mm | |
| Viewing Angle | 120 deg |
OSY50603C1E Frequently Asked Questions (FAQ)
-
The recommended storage temperature for OSY50603C1E is -20°C to 40°C, with a relative humidity of 60% or less.
-
Yes, OSY50603C1E is designed to withstand vibrations up to 10G (10-2000Hz) and shocks up to 50G (11ms), making it suitable for high-vibration environments.
-
The typical response time of OSY50603C1E is around 10-15 microseconds, although this may vary depending on the specific application and operating conditions.
-
Yes, OSY50603C1E is compatible with lead-free soldering processes, with a peak reflow temperature of 260°C.
-
The recommended operating temperature range for OSY50603C1E is -40°C to 85°C, although the device can operate up to 100°C with reduced performance and lifespan.
