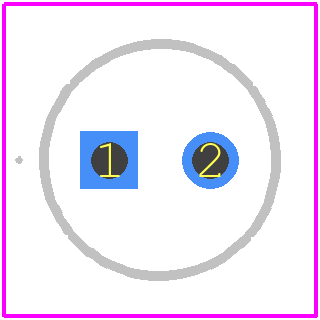

Footprint
-

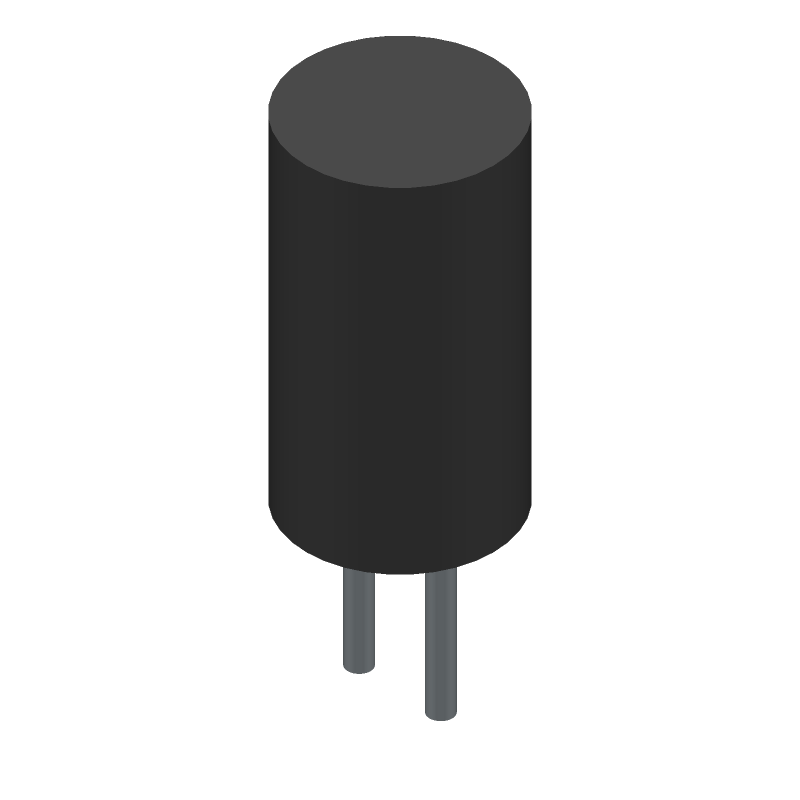

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for OSI5LA5113A by OptoSupply Limited
Results Overview of OSI5LA5113A by OptoSupply Limited
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Security and Surveillance
Audio and Video Systems
Transportation and Logistics
Renewable Energy
Automotive
Robotics and Drones
OSI5LA5113A Information
OSI5LA5113A by OptoSupply Limited is an Infrared LED.
Infrared LEDs are under the broader part category of Optoelectronics.
Optoelectronic components work to detect, generate, and control light. They can essentially produce and/or react to light. Read more about Optoelectronics on our Optoelectronics part category page.
Price & Stock for OSI5LA5113A
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
OSI5LA5113A
|
TME | IR transmitter, 5mm, 940nm, transparent,green, 12mW, 15°, THT Min Qty: 5 | 0 |
|
$0.0585 / $0.1624 | RFQ |
Part Details for OSI5LA5113A
OSI5LA5113A CAD Models
OSI5LA5113A Part Data Attributes
|
|
OSI5LA5113A
OptoSupply Limited
Buy Now
Datasheet
|
Compare Parts:
OSI5LA5113A
OptoSupply Limited
Infrared LED, 5mm, 1-Element, 940nm, ROHS AND REACH COMPLIANT, PLASTIC PACKAGE-2
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Contact Manufacturer | |
| Ihs Manufacturer | OPTOSUPPLY LTD | |
| Package Description | ROHS AND REACH COMPLIANT, PLASTIC PACKAGE-2 | |
| Reach Compliance Code | unknown | |
| HTS Code | 8541.40.20.00 | |
| Samacsys Manufacturer | OptoSupply | |
| Configuration | SINGLE | |
| Forward Current-Max | 0.1 A | |
| Number of Functions | 1 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -30 °C | |
| Optoelectronic Device Type | INFRARED LED | |
| Output Power-Nom | 12 mW | |
| Peak Wavelength | 940 nm | |
| Shape | ROUND | |
| Size | 5 mm |
