OS203011MA2QP1 Information
OS203011MA2QP1 by C&K is a Slide Switch.
Slide Switches are under the broader part category of Switches.
Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.
Price & Stock for OS203011MA2QP1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
35AH4529
|
Newark | Slide Switch, Dp3T, 0.2A, 12Vdc, Tht, Contact Configuration:Dp3T, Switch Operation:On-On-On, Switch Mounting:Through Hole, Product Range:Os Series, Contact Current Max:200Ma, Contact Voltage Ac Max:-, Contact Voltage Dc Max:12V Rohs Compliant: Yes |C&k Components OS203011MA2QP1 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 1432 |
|
$0.3180 | Buy Now |
|
DISTI #
79X5779
|
Newark | Slide Switch, Spdt, Right Angle, Through Hole, 200 Ma Rohs Compliant: Yes |C&k Components OS203011MA2QP1 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 1 |
|
$0.1050 | Buy Now |
|
DISTI #
CKN9562-ND
|
DigiKey | SWITCH SLIDE DP3T 100MA 12V Min Qty: 1 Lead time: 11 Weeks Container: Bulk |
989 In Stock |
|
$0.4814 / $0.8100 | Buy Now |
|
DISTI #
611-OS203011MA2QP1
|
Mouser Electronics | Slide Switches DP3T On-On-On RoHS: Compliant | 1566 |
|
$0.4810 / $0.8100 | Buy Now |
|
DISTI #
70128250
|
RS | Switch, Slide, Mini, DP3T, ON-ON-ON, 100mA, 12VDC, ThruHole R/A, PC Pin Min Qty: 1050 Package Multiple: 1 Lead time: 11 Weeks, 0 Days Container: Bulk | 0 |
|
$0.6100 / $0.6300 | RFQ |
|
DISTI #
54483570
|
Verical | Switch Slide ON ON ON DP3T Side Slide 0.1A 12VDC 10000Cycles PC Pins Bracket Mount/Through Hole Bulk RoHS: Compliant Min Qty: 350 Package Multiple: 350 Date Code: 2103 | Americas - 1400 |
|
$0.6332 / $0.7264 | Buy Now |
|
DISTI #
87458994
|
Verical | Switch Slide ON ON ON DP3T Side Slide 0.1A 12VDC 10000Cycles PC Pins Bracket Mount/Through Hole Bulk RoHS: Compliant Min Qty: 85 Package Multiple: 1 Date Code: 2219 | Americas - 648 |
|
$0.9800 | Buy Now |
|
|
Quest Components | SLIDE SWITCH, DP3T, LATCHED, 0.1A, 12VDC, THROUGH HOLE-RIGHT ANGLE | 5 |
|
$0.8438 / $1.0125 | Buy Now |
|
DISTI #
OS203011MA2QP1
|
TME | Switch: slide, Pos: 3, DP3T, 0.3A/30VDC, ON-ON-ON, THT, -30÷70°C Min Qty: 1050 | 0 |
|
$0.5440 | RFQ |
|
DISTI #
000000000000766977
|
Sager | Slide Switches DP3T On-On-On Min Qty: 1050 | 0 |
|
$0.4947 / $0.5456 | Buy Now |
Part Details for OS203011MA2QP1

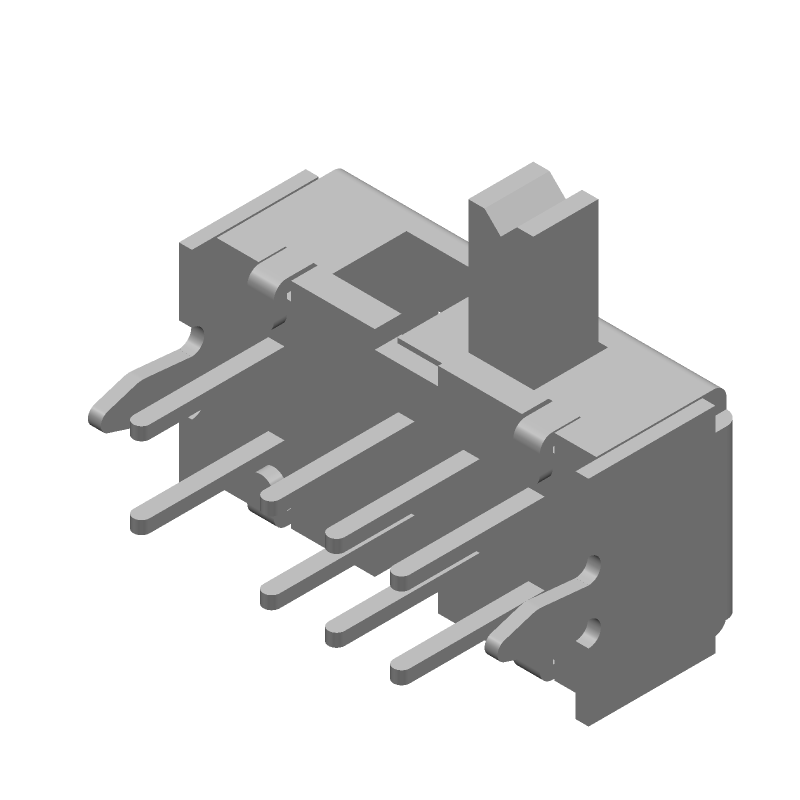

OS203011MA2QP1 CAD Models
OS203011MA2QP1 Part Data Attributes
|
|
OS203011MA2QP1
C&K
Buy Now
Datasheet
|
Compare Parts:
OS203011MA2QP1
C&K
SLIDE SWITCH, DP3T, LATCHED, 0.1A, 12VDC, THROUGH HOLE-RIGHT ANGLE, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | C & K COMPONENTS LLC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.50.90.50 | |
| Factory Lead Time | 16 Weeks | |
| Samacsys Manufacturer | C & K COMPONENTS | |
| Actuator Color | BLACK | |
| Actuator Length | 0.157 inch | |
| Actuator Material | POLYOXYMETHYLENE | |
| Actuator Type | SLIDE | |
| Body Breadth | 6.6 mm | |
| Body Height | 4.7 mm | |
| Body Length or Diameter | 12.6 mm | |
| Center Contact Material | BRASS | |
| Center Contact Plating | SILVER | |
| Contact Current(DC)-Max | 0.1 A | |
| Contact (DC) Max Rating R Load | .1A@12VDC | |
| Contact Function | ON-ON-ON | |
| Contact Resistance | 0.02 mΩ | |
| Contact Voltage(DC)-Max | 12 V | |
| Dielectric Withstand Volts | 500VAC V | |
| Electrical Life | 10000 Cycle(s) | |
| End Contact Material | COPPER ALLOY | |
| Insulation Resistance | 100000000 Ω | |
| Insulator Material | PHENOLIC | |
| JESD-609 Code | e4 | |
| Mounting Feature | THROUGH HOLE-RIGHT ANGLE | |
| Number of Positions | 1 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | -10 °C | |
| PCB Hole Count | 10 | |
| Packing Method | BULK | |
| Surface Mount | NO | |
| Switch Action | LATCHED | |
| Switch Function | DP3T | |
| Switch Type | SLIDE SWITCH | |
| Terminal Finish | SILVER | |
| Terminal Material | BRASS | |
| Termination Type | SOLDER |
