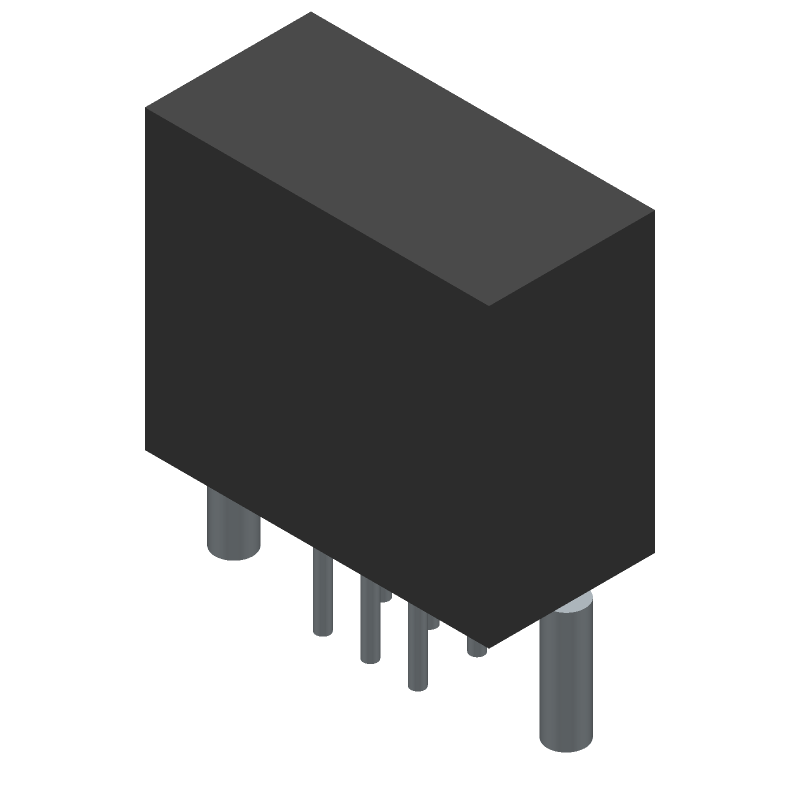

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for OS202011MV4QN1 by C&K
Results Overview of OS202011MV4QN1 by C&K
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Aerospace and Defense
OS202011MV4QN1 Information
OS202011MV4QN1 by C&K is a Slide Switch.
Slide Switches are under the broader part category of Switches.
Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.
Price & Stock for OS202011MV4QN1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
35AH4525
|
Newark | Slide Switch, Dpdt, 0.1A, 12Vdc, Tht, Contact Configuration:Dpdt, Switch Operation:On-On, Switch Mounting:Through Hole, Product Range:Os Series, Contact Current Max:100Ma, Contact Voltage Ac Max:-, Contact Voltage Dc Max:12V Rohs Compliant: Yes |C&k Components OS202011MV4QN1 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 468 |
|
$0.3300 | Buy Now |
|
DISTI #
CKN9555-ND
|
DigiKey | SWITCH SLIDE DPDT 100MA 30V Min Qty: 1 Lead time: 11 Weeks Container: Bulk |
897 In Stock |
|
$0.5912 / $1.0000 | Buy Now |
|
DISTI #
611-OS202011MV4QN1
|
Mouser Electronics | Slide Switches DPDT On-On RoHS: Compliant | 1981 |
|
$0.5810 / $0.9900 | Buy Now |
|
DISTI #
51585963
|
Verical | Switch Slide ON ON DPDT Top Slide 0.1A 30VDC 10000Cycles PC Pins Bracket Mount/Through Hole Bulk RoHS: Compliant Min Qty: 400 Package Multiple: 400 Date Code: 1533 | Americas - 2800 |
|
$0.6213 / $0.7128 | Buy Now |
|
|
Bristol Electronics | 4 |
|
RFQ | ||
|
|
Quest Components | 408 |
|
$0.7604 / $1.9010 | Buy Now | |
|
DISTI #
000000000000766973
|
Sager | Slide Switches DPDT On-On Min Qty: 1200 | 0 |
|
$0.4853 / $0.5200 | Buy Now |
Part Details for OS202011MV4QN1
OS202011MV4QN1 CAD Models
OS202011MV4QN1 Part Data Attributes
|
|
OS202011MV4QN1
C&K
Buy Now
Datasheet
|
Compare Parts:
OS202011MV4QN1
C&K
SLIDE SWITCH, DPDT, LATCHED, 0.1A, 30VDC, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | C & K COMPONENTS LLC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.50.90.50 | |
| Factory Lead Time | 11 Weeks, 3 Days | |
| Samacsys Manufacturer | C & K COMPONENTS | |
| Actuator Color | BLACK | |
| Actuator Length | 0.157 inch | |
| Actuator Material | POLYOXYMETHYLENE | |
| Actuator Type | SLIDE | |
| Body Breadth | 7 mm | |
| Body Height | 7 mm | |
| Body Length or Diameter | 14.5 mm | |
| Center Contact Material | BRASS | |
| Center Contact Plating | SILVER | |
| Contact Current(DC)-Max | 0.1 A | |
| Contact (DC) Max Rating R Load | .1A@30VDC | |
| Contact Function | ON-ON | |
| Contact Resistance | 0.02 mΩ | |
| Contact Voltage(DC)-Max | 30 V | |
| Dielectric Withstand Volts | 500VAC V | |
| Electrical Life | 10000 Cycle(s) | |
| End Contact Material | COPPER ALLOY | |
| Insulation Resistance | 100000000 Ω | |
| Insulator Material | PHENOLIC | |
| JESD-609 Code | e4 | |
| Mounting Feature | THROUGH HOLE-STRAIGHT | |
| Number of Positions | 2 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | -10 °C | |
| PCB Hole Count | 8 | |
| Packing Method | BULK | |
| Surface Mount | NO | |
| Switch Action | LATCHED | |
| Switch Function | DPDT | |
| Switch Type | SLIDE SWITCH | |
| Terminal Finish | Silver (Ag) | |
| Terminal Material | BRASS | |
| Termination Type | SOLDER |
OS202011MV4QN1 Frequently Asked Questions (FAQ)
-
C&K provides a recommended PCB layout and land pattern in their application notes, which can be found on their website or by contacting their technical support team. It's essential to follow these guidelines to ensure proper switch operation and prevent mechanical stress.
-
To ensure the OS202011MV4QN1 meets the IP67 rating, it's crucial to follow the recommended sealing procedure outlined in the datasheet. This includes applying the correct amount of force during assembly and using the recommended sealant material. Additionally, the switch should be mounted on a flat, clean, and dry PCB surface.
-
While the datasheet specifies an operating temperature range of -20°C to 70°C, it's essential to note that the switch's performance and lifespan may be affected at extreme temperatures. For optimal performance, it's recommended to operate the switch within a temperature range of 0°C to 50°C.
-
Yes, the OS202011MV4QN1 is designed to withstand vibrations up to 10G (10-2000 Hz). However, it's crucial to ensure the switch is properly mounted and secured to the PCB to prevent mechanical stress and damage. Additionally, the switch's performance may be affected by extreme vibration, so it's recommended to test the switch in the specific application environment.
-
The OS202011MV4QN1 has built-in ESD protection, but it's still essential to follow proper ESD handling procedures during assembly and testing. This includes using ESD-safe materials, grounding personnel, and using ESD-protected workstations.
