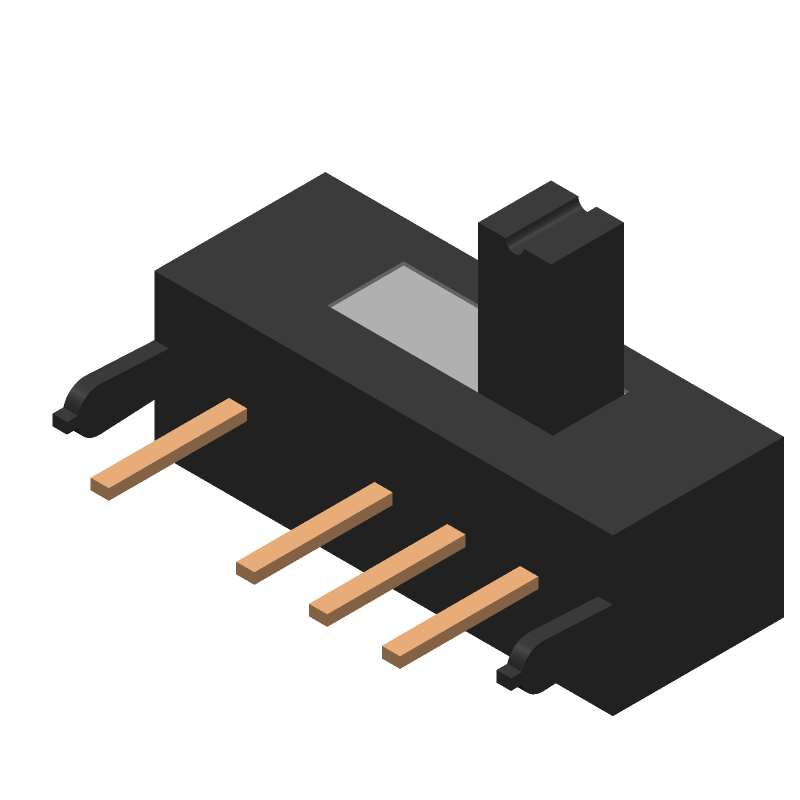

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for OS103011MA7QP1 by C&K
Results Overview of OS103011MA7QP1 by C&K
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Aerospace and Defense
OS103011MA7QP1 Information
OS103011MA7QP1 by C&K is a Slide Switch.
Slide Switches are under the broader part category of Switches.
Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.
Price & Stock for OS103011MA7QP1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
35AH4515
|
Newark | Slide Switch, Sp3T, 0.1A, 12Vdc, Tht, Contact Configuration:Sp3T, Switch Operation:On-On-On, Switch Mounting:Through Hole, Product Range:Os Series, Contact Current Max:100Ma, Contact Voltage Ac Max:-, Contact Voltage Dc Max:12V Rohs Compliant: Yes |C&k Components OS103011MA7QP1 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 17 |
|
$0.1090 | Buy Now |
|
DISTI #
CKN9561-ND
|
DigiKey | SWITCH SLIDE SP3T 100MA 12V Min Qty: 1 Lead time: 11 Weeks Container: Bulk |
2750 In Stock |
|
$0.4749 / $0.8000 | Buy Now |
|
DISTI #
5831-OS103011MA7QP1-ND
|
DigiKey | SLIDE Min Qty: 300 Container: Bulk MARKETPLACE PRODUCT |
831 In Stock |
|
$0.5800 | Buy Now |
|
DISTI #
611-OS103011MA7QP1
|
Mouser Electronics | Slide Switches SP3T On-On-On RoHS: Compliant | 1019 |
|
$0.3940 / $0.6400 | Buy Now |
|
DISTI #
OS103011MA7QP1
|
TME | Switch: slide, Pos: 3, SP3T, 0.1A/12VDC, ON-ON-ON, THT, -30÷70°C Min Qty: 3 | 574 |
|
$0.3800 / $0.5950 | Buy Now |
|
DISTI #
000000000000766965
|
Sager | Slide Switches SP3T On-On-On Min Qty: 1200 | 0 |
|
$0.3867 / $0.4265 | Buy Now |
Part Details for OS103011MA7QP1
OS103011MA7QP1 CAD Models
OS103011MA7QP1 Part Data Attributes
|
|
OS103011MA7QP1
C&K
Buy Now
Datasheet
|
Compare Parts:
OS103011MA7QP1
C&K
SLIDE SWITCH, SP3T, LATCHED, 0.1A, 12VDC, THROUGH HOLE-RIGHT ANGLE, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | C & K COMPONENTS LLC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.50.90.50 | |
| Factory Lead Time | 15 Weeks, 3 Days | |
| Samacsys Manufacturer | C & K COMPONENTS | |
| Actuator Color | BLACK | |
| Actuator Length | 0.157 inch | |
| Actuator Material | POLYOXYMETHYLENE | |
| Actuator Type | SLIDE | |
| Body Breadth | 4.3 mm | |
| Body Height | 4.7 mm | |
| Body Length or Diameter | 12.6 mm | |
| Center Contact Material | BRASS | |
| Center Contact Plating | SILVER | |
| Contact Current(DC)-Max | 0.1 A | |
| Contact (DC) Max Rating R Load | .1A@12VDC | |
| Contact Function | ON-ON-ON | |
| Contact Resistance | 0.02 mΩ | |
| Contact Voltage(DC)-Max | 12 V | |
| Dielectric Withstand Volts | 500VAC V | |
| Electrical Life | 10000 Cycle(s) | |
| End Contact Material | COPPER ALLOY | |
| Insulation Resistance | 100000000 Ω | |
| Insulator Material | PHENOLIC | |
| JESD-609 Code | e4 | |
| Mounting Feature | THROUGH HOLE-RIGHT ANGLE | |
| Number of Positions | 3 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | -10 °C | |
| PCB Hole Count | 6 | |
| Packing Method | BULK | |
| Surface Mount | NO | |
| Switch Action | LATCHED | |
| Switch Function | SP3T | |
| Switch Type | SLIDE SWITCH | |
| Terminal Finish | SILVER | |
| Terminal Material | BRASS | |
| Termination Type | SOLDER |
Alternate Parts for OS103011MA7QP1
This table gives cross-reference parts and alternative options found for OS103011MA7QP1. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of OS103011MA7QP1, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| OS103011MA7QP1 | ITT Interconnect Solutions | Check for Price | Slide Switch, SP3T, Latched, 0.1A, 12VDC, Solder Terminal, Through Hole-right Angle, ROHS COMPLIANT | OS103011MA7QP1 vs OS103011MA7QP1 |
OS103011MA7QP1 Frequently Asked Questions (FAQ)
-
The recommended PCB footprint for the OS103011MA7QP1 is a rectangular pad with dimensions of 6.5mm x 3.5mm, with a 1.5mm diameter hole in the center for the switch's locating pin.
-
To ensure reliable switch operation in high-vibration environments, it's recommended to use a switch with a higher operating force (e.g., 4N) and to secure the switch to the PCB using a suitable adhesive or mechanical fastening method.
-
The maximum allowable torque for the OS103011MA7QP1's actuator is 0.5 Nm (5.0 kgf·cm). Exceeding this torque may damage the switch or affect its reliability.
-
While the OS103011MA7QP1 is designed for general-purpose use, it's not recommended for outdoor or harsh environmental applications without proper protection. For such applications, consider using a switch with enhanced environmental sealing or protection, such as IP67-rated switches.
-
The recommended soldering temperature for the OS103011MA7QP1 is 260°C (500°F), with a maximum soldering time of 3 seconds. Exceeding these limits may damage the switch or affect its reliability.
