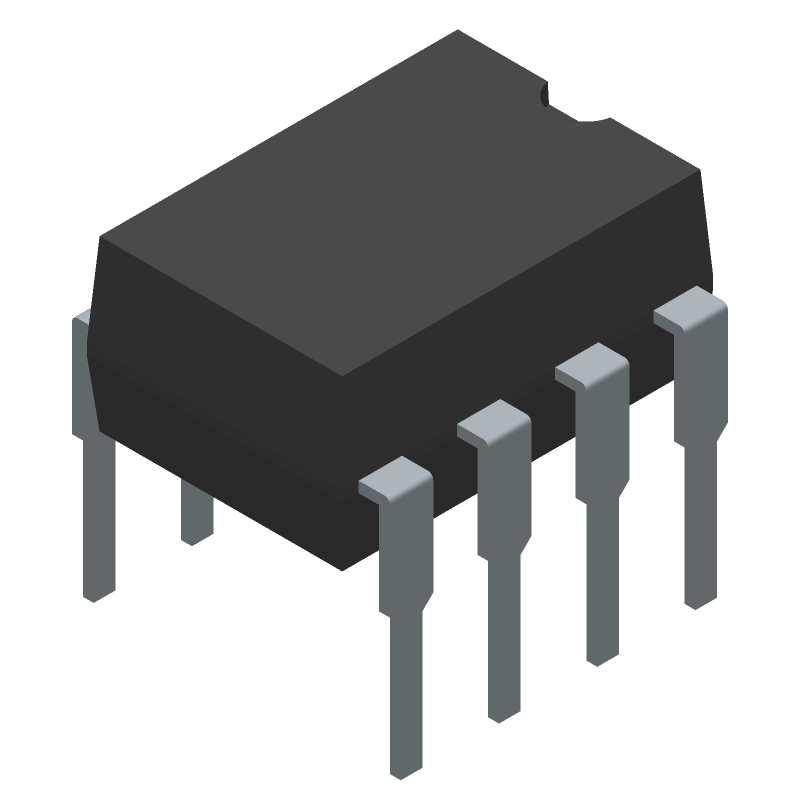

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for OP177FPZ by Analog Devices Inc
Results Overview of OP177FPZ by Analog Devices Inc
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (2 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
OP177FPZ Information
OP177FPZ by Analog Devices Inc is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for OP177FPZ
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
54AK8030
|
Newark | Op-Amp, 600Khz, -40 To 85Deg C, Dip-8, No. Of Channels:1Channels, Gain Bandwidth Product:600Khz, Supply Voltage Range:± 3V To ± 18V, Ic Case/Package:Dip, No. Of Pins:8Pins, Amplifier Type:General Purpose, Rail To Rail:- Rohs Compliant: Yes |Analog Devices OP177FPZ RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 331 |
|
$6.2000 / $12.5400 | Buy Now |
|
DISTI #
584-OP177FPZ
|
Mouser Electronics | Precision Amplifiers ULTRA-PRECISION OP AMP IC RoHS: Compliant | 64 |
|
$6.2000 / $12.5400 | Buy Now |
|
DISTI #
V36:1790_06228076
|
Arrow Electronics | Op Amp Single Precision Amplifier ±18V 8-Pin PDIP N Tube RoHS: Compliant Min Qty: 100 Package Multiple: 50 Lead time: 10 Weeks Date Code: 2502 | Americas - 50 |
|
$6.1250 / $6.4460 | Buy Now |
|
|
Analog Devices Inc | ULTRA-PRECISION OP AMP IC Package Multiple: 50 | 100 |
|
$4.8600 / $12.5400 | Buy Now |
|
DISTI #
87736939
|
Verical | Op Amp Single Precision Amplifier ±18V 8-Pin PDIP N Tube RoHS: Compliant Min Qty: 50 Package Multiple: 50 Date Code: 2502 | Americas - 50 |
|
$6.1250 / $6.4510 | Buy Now |
|
|
Quest Components | IC,OP-AMP,SINGLE,BIPOLAR,DIP,8PIN,PLASTIC,LEAD FREE | 92 |
|
$15.3738 / $19.7663 | Buy Now |
|
DISTI #
OP177FPZ
|
TME | IC: operational amplifier, 600kHz, Ch: 1, DIP8, ±3÷18VDC,6÷36VDC Min Qty: 1 | 4 |
|
$11.2900 / $15.1800 | Buy Now |
Part Details for OP177FPZ
OP177FPZ CAD Models
OP177FPZ Part Data Attributes
|
|
OP177FPZ
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
OP177FPZ
Analog Devices Inc
Ultraprecision Operational Amplifier
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | DIP | |
| Package Description | ROHS COMPLIANT, PLASTIC, MS-001BA, DIP-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | N-8 | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.33.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Architecture | VOLTAGE-FEEDBACK | |
| Average Bias Current-Max (IIB) | 0.004 µA | |
| Bias Current-Max (IIB) @25C | 0.002 µA | |
| Common-mode Reject Ratio-Min | 130 dB | |
| Common-mode Reject Ratio-Nom | 140 dB | |
| Frequency Compensation | YES | |
| Input Offset Voltage-Max | 40 µV | |
| JESD-30 Code | R-PDIP-T8 | |
| JESD-609 Code | e3 | |
| Length | 9.27 mm | |
| Low-Bias | NO | |
| Low-Offset | YES | |
| Micropower | NO | |
| Neg Supply Voltage Limit-Max | -22 V | |
| Neg Supply Voltage-Nom (Vsup) | -15 V | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | DIP | |
| Package Equivalence Code | DIP8,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | IN-LINE | |
| Power | NO | |
| Programmable Power | NO | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 5.33 mm | |
| Slew Rate-Min | 0.1 V/us | |
| Slew Rate-Nom | 0.3 V/us | |
| Supply Current-Max | 2.5 mA | |
| Supply Voltage Limit-Max | 22 V | |
| Supply Voltage-Nom (Vsup) | 15 V | |
| Surface Mount | NO | |
| Technology | BIPOLAR | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | DUAL | |
| Unity Gain BW-Nom | 600 | |
| Voltage Gain-Min | 2000000 | |
| Wideband | NO | |
| Width | 7.62 mm |
Alternate Parts for OP177FPZ
This table gives cross-reference parts and alternative options found for OP177FPZ. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of OP177FPZ, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| OP177FP | Precision Monolithics Inc | Check for Price | Operational Amplifier, 1 Func, 40uV Offset-Max, BIPolar, PDIP8, MINI, PLASTIC, DIP-8 | OP177FPZ vs OP177FP |
| OP177FP | Analog Devices Inc | Check for Price | IC OP-AMP, 40 uV OFFSET-MAX, 0.6 MHz BAND WIDTH, PDIP8, PLASTIC, MS-001BA, DIP-8, Operational Amplifier | OP177FPZ vs OP177FP |
OP177FPZ Frequently Asked Questions (FAQ)
-
The maximum power dissipation of the OP177FPZ is 670mW, which is calculated based on the maximum junction temperature (150°C) and the thermal resistance (θJA) of the package.
-
To ensure stability in a unity-gain configuration, it's recommended to add a 10nF to 22nF capacitor in parallel with a 1kΩ to 2kΩ resistor between the output and the inverting input. This helps to compensate for the op-amp's internal capacitance and ensures stability.
-
For optimal performance, it's recommended to use a star-grounding technique, where the op-amp's ground pin is connected to a central ground point. Additionally, keep the input and output traces short and separate, and avoid running digital signals near the op-amp's analog signals.
-
The OP177FPZ is rated for operation up to 125°C, but its performance may degrade at higher temperatures. If you need to operate the op-amp in a high-temperature environment, consider using a heat sink or a thermally-enhanced package, and ensure that the junction temperature remains within the recommended range.
-
To reduce noise and EMI, use a low-pass filter at the input, keep the input and output traces short and shielded, and use a ground plane to reduce electromagnetic radiation. Additionally, consider using a ferrite bead or a common-mode choke to filter out high-frequency noise.
