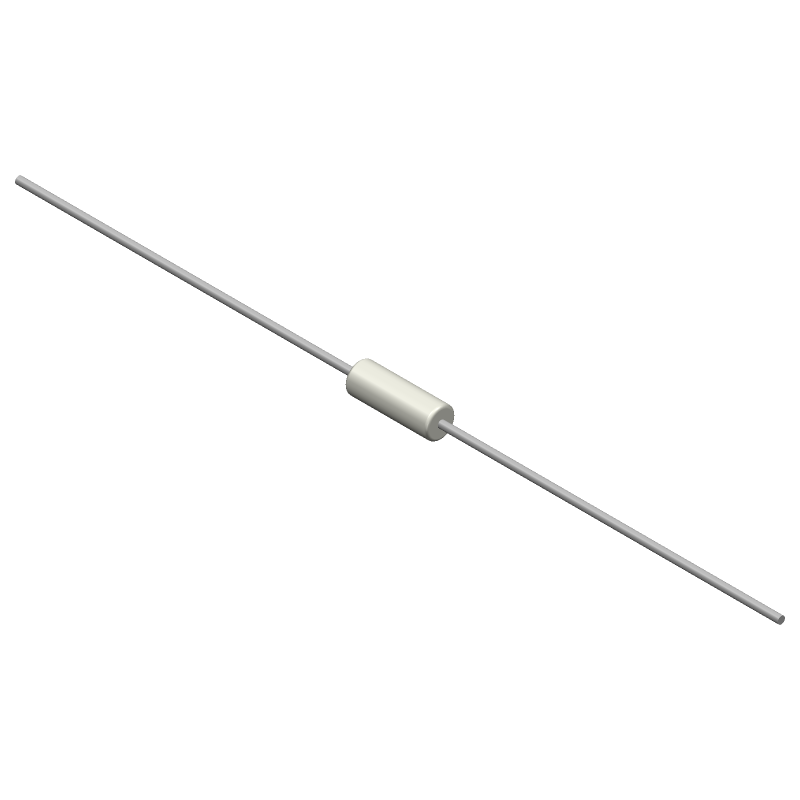

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for OD151JE by Ohmite Mfg Co
Results Overview of OD151JE by Ohmite Mfg Co
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (5 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
OD151JE Information
OD151JE by Ohmite Mfg Co is a Carbon Composition Resistor.
Carbon Composition Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for OD151JE
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
64K5093
|
Newark | Carbon Resistor, 150 Ohm, 250Mw, 5%, Resistance:150Ohm, Product Range:Little Demon Od Series, Power Rating:250Mw, Resistance Tolerance:± 5%, Resistor Case/Package:Axial Leaded, Voltage Rating:250V, Temperature Coefficient:- Rohs Compliant: Yes |Ohmite OD151JE RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 14 |
|
$0.2590 / $0.3870 | Buy Now |
|
|
Onlinecomponents.com | Res Carbon Composition 150 Ohm 5% 0.25W(1/4W) Molded AXL RoHS: Compliant |
1367 In Stock |
|
$0.2740 / $0.3900 | Buy Now |
|
DISTI #
51655220
|
Verical | Res Carbon Composition 150 Ohm 5% 0.25W(1/4W) Molded AXL RoHS: Compliant Min Qty: 200 Package Multiple: 100 Date Code: 1136 | Americas - 1300 |
|
$0.3679 / $0.5070 | Buy Now |
|
|
Quest Components | RESISTOR, CARBON COMPOSITION, 0.25 W, 5 %, 150 OHM, THROUGH HOLE MOUNT | 676 |
|
$0.2716 / $0.6790 | Buy Now |
|
|
Master Electronics | Res Carbon Composition 150 Ohm 5% 0.25W(1/4W) Molded AXL RoHS: Compliant |
1367 In Stock |
|
$0.2740 / $0.3900 | Buy Now |
Part Details for OD151JE
OD151JE CAD Models
OD151JE Part Data Attributes
|
|
OD151JE
Ohmite Mfg Co
Buy Now
Datasheet
|
Compare Parts:
OD151JE
Ohmite Mfg Co
Fixed Resistor, Carbon Composition, 0.25W, 150ohm, 250V, 5% +/-Tol, Through Hole Mount, AXIAL LEADED, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | OHMITE MANUFACTURING CO | |
| Package Description | AXIAL LEADED | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.10.00.60 | |
| Samacsys Manufacturer | Ohmite | |
| Construction | Tubular | |
| JESD-609 Code | e3 | |
| Lead Diameter | 0.6 mm | |
| Lead Length | 28.83 mm | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 130 °C | |
| Package Diameter | 2.5 mm | |
| Package Length | 7 mm | |
| Package Style | Axial | |
| Packing Method | Bulk | |
| Rated Power Dissipation (P) | 0.25 W | |
| Rated Temperature | 70 °C | |
| Resistance | 150 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Surface Mount | NO | |
| Technology | CARBON COMPOSITION | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Shape | WIRE | |
| Tolerance | 5% | |
| Working Voltage | 250 V |
Alternate Parts for OD151JE
This table gives cross-reference parts and alternative options found for OD151JE. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of OD151JE, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| RCR07151JR | Rockwell Automation / Allen-Bradley | Check for Price | RESISTOR, CARBON COMPOSITION, 0.25W, 5%, 150ohm, THROUGH HOLE MOUNT, AXIAL LEADED | OD151JE vs RCR07151JR |
| RCR07151JM | Rockwell Automation / Allen-Bradley | Check for Price | RESISTOR, CARBON COMPOSITION, 0.25W, 5%, 150ohm, THROUGH HOLE MOUNT, AXIAL LEADED | OD151JE vs RCR07151JM |
| RCR07151JS | Rockwell Automation / Allen-Bradley | Check for Price | RESISTOR, CARBON COMPOSITION, 0.25W, 5%, 150ohm, THROUGH HOLE MOUNT, AXIAL LEADED | OD151JE vs RCR07151JS |
| OD151J | Ohmite Mfg Co | Check for Price | Fixed Resistor, Carbon Composition, 0.25W, 150ohm, 250V, 5% +/-Tol, Through Hole Mount, AXIAL LEADED | OD151JE vs OD151J |
| CB1515 | Rockwell Automation / Allen-Bradley | Check for Price | Fixed Resistor, Carbon Composition, 0.25W, 150ohm, 5% +/-Tol, Through Hole Mount, AXIAL LEADED | OD151JE vs CB1515 |
OD151JE Frequently Asked Questions (FAQ)
-
The thermal resistance of the OD151JE is typically around 1.5°C/W, but this can vary depending on the specific application and mounting method.
-
Yes, the OD151JE is designed to withstand high-vibration environments. However, it's recommended to follow proper mounting and installation procedures to ensure reliable operation.
-
Yes, the OD151JE is RoHS compliant, meaning it meets the European Union's Restriction of Hazardous Substances directive.
-
The recommended torque for mounting the OD151JE is typically around 10-15 in-lbs (1.1-1.7 Nm). However, it's recommended to consult the datasheet or contact Ohmite Mfg Co for specific mounting instructions.
-
The OD151JE is designed to operate in a wide range of environmental conditions, including high humidity. However, it's recommended to follow proper sealing and protection methods to ensure reliable operation.
