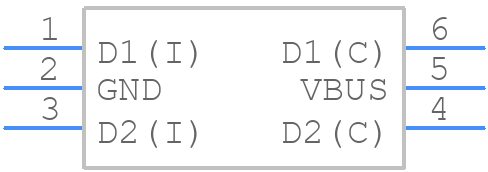

Part Symbol
-
Footprint
-

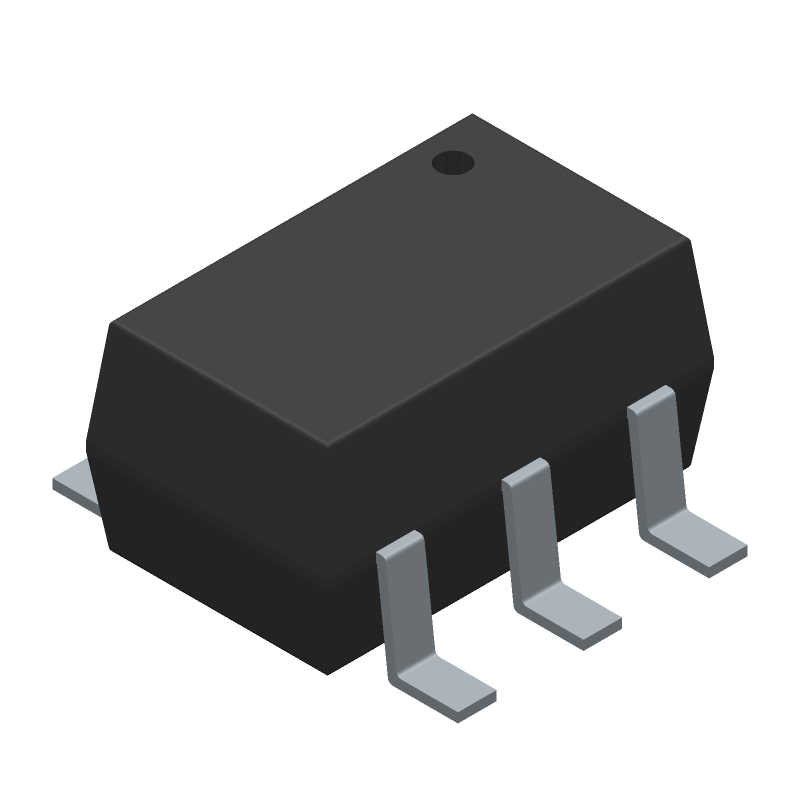

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for NUF2221W1T2G by onsemi
Results Overview of NUF2221W1T2G by onsemi
- Distributor Offerings: (24 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
NUF2221W1T2G Information
NUF2221W1T2G by onsemi is a Bus Terminator.
Bus Terminators are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for NUF2221W1T2G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
74AC1475
|
Newark | Ic, Filter, Usb, Esd Protect, Sot363, Emi Filter Type:Usb Upstream And Terminator Emi Filter With Esd, No. Of Data Lines:2 Data Lines, Filter Circuit:C-R-C Pi Filter, Filter Case Style:Sot-363, No. Of Pins:6Pins, Product Range:Nuf22 Rohs Compliant: Yes |Onsemi NUF2221W1T2G RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 771 |
|
$0.2020 / $0.3610 | Buy Now |
|
DISTI #
45J2193
|
Newark | Rc N/W Filter, 22 Ohm/42Pf, Sc-88, Full Reel, Emi Filter Type:Usb Upstream And Terminator Emi Filter With Esd, No. Of Data Lines:2 Data Lines, Filter Circuit:C-R-C Pi Filter, Filter Case Style:Sot-363, No. Of Pins:6Pins Rohs Compliant: Yes |Onsemi NUF2221W1T2G RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.1400 / $0.1640 | Buy Now |
|
DISTI #
NUF2221W1T2GOSCT-ND
|
DigiKey | FILTER RC(PI) 22 OHMS ESD SMD Min Qty: 1 Lead time: 8 Weeks Container: Digi-Reel®, Tape & Reel (TR), Cut Tape (CT) |
12816 In Stock |
|
$0.1314 / $0.3500 | Buy Now |
|
DISTI #
NUF2221W1T2G
|
Avnet Americas | EMI Filter Gull Wing SMD T/R - Tape and Reel (Alt: NUF2221W1T2G) RoHS: Compliant Min Qty: 6000 Package Multiple: 3000 Lead time: 8 Weeks, 0 Days Container: Reel | 0 |
|
$0.1298 / $0.1420 | Buy Now |
|
DISTI #
863-NUF2221W1T2G
|
Mouser Electronics | ESD Protection Diodes / TVS Diodes Zener USB Upstream Terminator w/ESD RoHS: Compliant | 55412 |
|
$0.1360 / $0.3500 | Buy Now |
|
DISTI #
V72:2272_07278767
|
Arrow Electronics | ESD Suppressor Diode Array Bi-Dir 5.25V 6-Pin SC-88 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 8 Weeks Date Code: 2224 Container: Cut Strips | Americas - 2710 |
|
$0.1348 / $0.3430 | Buy Now |
|
DISTI #
70347842
|
RS | NUF2221W1T2G, Bus Terminator, 2-Bits, 6-Pin SC-88 Min Qty: 20 Package Multiple: 1 Container: Bulk | 0 |
|
$0.2540 / $0.2990 | RFQ |
|
|
Onlinecomponents.com | RC (Pi) EMI Filter 2nd Order Low Pass 3 Channel R = 22Ohms, C = 42pF (Total) 6-TSSOP, SC-88, SOT-363 RoHS: Compliant | 0 |
|
$0.1259 / $0.1420 | Buy Now |
|
DISTI #
62298857
|
Verical | ESD Suppressor Diode Array Bi-Dir 5.25V 6-Pin SC-88 T/R RoHS: Compliant Min Qty: 44 Package Multiple: 1 Date Code: 2224 | Americas - 2710 |
|
$0.1348 / $0.2389 | Buy Now |
|
DISTI #
87892570
|
Verical | ESD Suppressor Diode Array Bi-Dir 5.25V 6-Pin SC-88 T/R RoHS: Compliant Min Qty: 225 Package Multiple: 1 Date Code: 2302 | Americas - 1725 |
|
$0.2030 / $0.3290 | Buy Now |
Part Details for NUF2221W1T2G
NUF2221W1T2G CAD Models
NUF2221W1T2G Part Data Attributes
|
|
NUF2221W1T2G
onsemi
Buy Now
Datasheet
|
Compare Parts:
NUF2221W1T2G
onsemi
EMI Filter, Upstream Terminator with ESD Protection, SC-88/SC70-6/SOT-363 6 LEAD, 3000-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | SC-88/SC70-6/SOT-363 6 LEAD | |
| Package Description | 6 PIN | |
| Pin Count | 6 | |
| Manufacturer Package Code | 419B-02 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 8 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Differential Output | YES | |
| Interface IC Type | OTHER TERMINATOR | |
| JESD-30 Code | R-PDSO-G6 | |
| JESD-609 Code | e3 | |
| Length | 2 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Signal Lines | 2 | |
| Number of Terminals | 6 | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Pull-up Resistance-Nom | 1500 Ω | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.1 mm | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 1.25 mm |
NUF2221W1T2G Frequently Asked Questions (FAQ)
-
A good PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the exposed pad to the ground plane. This helps to dissipate heat efficiently.
-
To ensure proper biasing, make sure to follow the recommended voltage and current ratings specified in the datasheet. Additionally, use a stable voltage source and decouple the power supply lines with capacitors to minimize noise and ripple.
-
Handle the device by the body, not the leads, to prevent damage. Avoid touching the leads or exposed pads to prevent electrostatic discharge (ESD) damage. Use an anti-static wrist strap or mat when handling the device.
-
To determine the suitable heat sink, calculate the maximum power dissipation (PD) using the formula PD = (VIN - VOUT) x IOUT. Then, select a heat sink with a thermal resistance (RθJA) that meets the calculated PD. Consult the datasheet for thermal resistance values.
-
To minimize EMI, use a multi-layer PCB with a solid ground plane, keep the power supply lines short and away from sensitive signals, and use shielding or filtering components as needed. Also, ensure the device is placed away from other noise-sensitive components.
