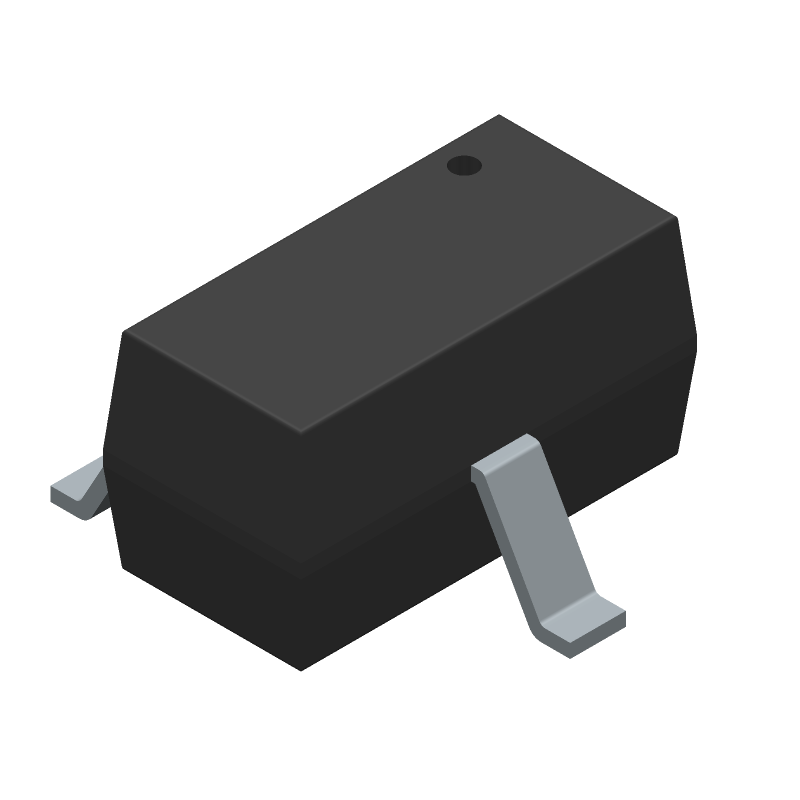

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for NTA7002NT1G by onsemi
Results Overview of NTA7002NT1G by onsemi
- Distributor Offerings: (41 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (3 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
NTA7002NT1G Information
NTA7002NT1G by onsemi is a Small Signal Field-Effect Transistor.
Small Signal Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for NTA7002NT1G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
10N9709
|
Newark | N Channel Mosfet, 30V, 154Ma, Sc-75, Channel Type:N Channel, Drain Source Voltage Vds:30V, Continuous Drain Current Id:154Ma, Transistor Mounting:Surface Mount, Rds(On) Test Voltage:4.5V, Gate Source Threshold Voltage Max:1V Rohs Compliant: Yes |Onsemi NTA7002NT1G RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 17787 |
|
$0.0280 | Buy Now |
|
DISTI #
69AK4511
|
Newark | Nfet Sc75 30V 154Ma 7Ohm, Transistor Polarity:N Channel, Continuous Drain Current Id:154Ma, Drain Source Voltage Vds:30V, On Resistance Rds(On):1.4Ohm, Rds(On) Test Voltage Vgs:4.5V, Threshold Voltage Vgs:1V, Power Dissipation Rohs Compliant: Yes |Onsemi NTA7002NT1G RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 1 Container: Reel | 3000 |
|
$0.0510 / $0.0580 | Buy Now |
|
DISTI #
NTA7002NT1GOSCT-ND
|
DigiKey | MOSFET N-CH 30V 154MA SC75 Min Qty: 1 Lead time: 11 Weeks Container: Digi-Reel®, Tape & Reel (TR), Cut Tape (CT) |
76728 In Stock |
|
$0.0320 / $0.2100 | Buy Now |
|
DISTI #
NTA7002NT1G
|
Avnet Americas | Trans MOSFET N-CH 30V 0.154A 3-Pin SOT-416 T/R - Tape and Reel (Alt: NTA7002NT1G) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 11 Weeks, 0 Days Container: Reel | 12000 |
|
$0.0320 / $0.0341 | Buy Now |
|
DISTI #
10N9709
|
Avnet Americas | Trans MOSFET N-CH 30V 0.154A 3-Pin SOT-416 T/R - Product that comes on tape, but is not reeled (Alt: 10N9709) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 55 Weeks, 2 Days Container: Ammo Pack | 17787 Partner Stock |
|
$0.0760 / $0.1890 | Buy Now |
|
DISTI #
863-NTA7002NT1G
|
Mouser Electronics | MOSFETs 30V 154mA N-Channel RoHS: Compliant | 348510 |
|
$0.0320 / $0.2100 | Buy Now |
|
DISTI #
V36:1790_07304120
|
Arrow Electronics | Trans MOSFET N-CH 30V 0.154A 3-Pin SOT-416 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 11 Weeks Date Code: 2428 | Americas - 204000 |
|
$0.0196 / $0.0329 | Buy Now |
|
DISTI #
E02:0323_00018903
|
Arrow Electronics | Trans MOSFET N-CH 30V 0.154A 3-Pin SOT-416 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 11 Weeks Date Code: 2508 | Europe - 102000 |
|
$0.0220 / $0.0370 | Buy Now |
|
DISTI #
V79:2366_30504824
|
Arrow Electronics | Trans MOSFET N-CH 30V 0.154A 3-Pin SOT-416 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 2305 | Americas - 72000 |
|
$0.0263 / $0.1000 | Buy Now |
|
DISTI #
V72:2272_07304120
|
Arrow Electronics | Trans MOSFET N-CH 30V 0.154A 3-Pin SOT-416 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 11 Weeks Date Code: 2301 Container: Cut Strips | Americas - 53143 |
|
$0.1010 / $0.1911 | Buy Now |
Part Details for NTA7002NT1G
NTA7002NT1G CAD Models
NTA7002NT1G Part Data Attributes
|
|
NTA7002NT1G
onsemi
Buy Now
Datasheet
|
Compare Parts:
NTA7002NT1G
onsemi
Single N-Channel Gate ESD Protection Small Signal MOSFET 30V, 154mA, 7Ω, SC-75 (SOT-416) 3 LEAD, 3000-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | SC-75 (SOT-416) 3 LEAD | |
| Package Description | SC-75, 3 PIN | |
| Pin Count | 3 | |
| Manufacturer Package Code | 463-01 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.21.00.95 | |
| Factory Lead Time | 55 Weeks, 2 Days | |
| Samacsys Manufacturer | onsemi | |
| Configuration | SINGLE WITH BUILT-IN DIODE AND RESISTOR | |
| DS Breakdown Voltage-Min | 30 V | |
| Drain Current-Max (ID) | 0.154 A | |
| Drain-source On Resistance-Max | 7.5 Ω | |
| FET Technology | METAL-OXIDE SEMICONDUCTOR | |
| Feedback Cap-Max (Crss) | 6 pF | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Mode | ENHANCEMENT MODE | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | N-CHANNEL | |
| Power Dissipation-Max (Abs) | 0.3 W | |
| Qualification Status | Not Qualified | |
| Surface Mount | YES | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON |
Alternate Parts for NTA7002NT1G
This table gives cross-reference parts and alternative options found for NTA7002NT1G. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of NTA7002NT1G, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 3LN01C | SANYO Semiconductor Co Ltd | Check for Price | Small Signal Field-Effect Transistor, 0.15A I(D), 30V, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, CP, 3 PIN | NTA7002NT1G vs 3LN01C |
| 3LN01C-TB-E | onsemi | Check for Price | Small Signal MOSFET 30V 150mA 3.7 Ohm Single N-Channel CP, SC-59 / CP, 3000-REEL | NTA7002NT1G vs 3LN01C-TB-E |
| 3LN01C-TB-H | onsemi | Check for Price | Small Signal MOSFET 30V 150mA 3.7 Ohm Single N-Channel CP, SC-59 / CP, 3000-REEL | NTA7002NT1G vs 3LN01C-TB-H |
