Capacitors / Special Capacitors / NOJA106M010RWJ
Datasheets
NOJA106M010RWJ by:

Special Capacitor, Niobium, 10V, 20% +Tol, 20% -Tol, 10uF, Surface Mount, 1206, CHIP

Part Details for NOJA106M010RWJ by Kyocera AVX Components

Results Overview of NOJA106M010RWJ by Kyocera AVX Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Industrial Automation

NOJA106M010RWJ Information

NOJA106M010RWJ by Kyocera AVX Components is a Special Capacitor.
Special Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for NOJA106M010RWJ

Part # Distributor Description Stock Price Buy
DISTI # 58M9800
Newark Cap, 10Μf, 10V, 20%, 1206, Smd, Capacitance:10Μf, Voltage Rating:10V, Product Range:Oxicap Noj Series, Operating Temperature Max:105°C, Esr:2.2Ohm, Capacitor Case Style:1206 [3216 Metric], Automotive Qualification Standard:Aec-Q200, Rohs Compliant: Yes |Kyocera Avx NOJA106M010RWJ RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape 1255
  • 1 $0.4000
  • 10 $0.2080
  • 25 $0.2000
  • 50 $0.1930
$0.1930 / $0.4000 Buy Now
DISTI # 22K1453
Newark Capacitor Niobium Oxide 10Uf, 10V, 20%, 1206, Capacitance:10Μf, Voltage(Dc):10V, Esr:2.2Ohm, Capacitor Case/Package:1206 [3216 Metric], Capacitance Tolerance:± 20%, Capacitor Mounting:Surface Mount, Product Length:3.2Mm Rohs Compliant: Yes |Kyocera Avx NOJA106M010RWJ RoHS: Compliant Min Qty: 2000 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 1 $0.1780
  • 5,000 $0.1680
  • 10,000 $0.1480
  • 20,000 $0.1330
  • 30,000 $0.1230
  • 50,000 $0.1130
$0.1130 / $0.1780 Buy Now
DISTI # 478-3121-1-ND
DigiKey CAP NIOB OXIDE 10UF 20% 10V 1206 Min Qty: 1 Lead time: 17 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 26950
In Stock
  • 1 $0.4100
  • 10 $0.2490
  • 50 $0.1846
  • 100 $0.1647
  • 500 $0.1312
  • 1,000 $0.1209
  • 2,000 $0.1124
  • 4,000 $0.1054
  • 6,000 $0.1019
  • 10,000 $0.0980
  • 14,000 $0.0958
  • 20,000 $0.0936
  • 50,000 $0.0889
  • 100,000 $0.0861
$0.0861 / $0.4100 Buy Now
DISTI # NOJA106M010RWJ
Avnet Americas Niobium Oxide Capacitor, 10 uF, 10 V, ? 20%, 2200 mohm, 105 ?C, 1206 [3216 Metric] - Tape and Reel (Alt: NOJA106M010RWJ) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 17 Weeks, 0 Days Container: Reel 0
  • 2,000 $0.1331
  • 4,000 $0.1315
  • 8,000 $0.1293
  • 12,000 $0.1276
  • 16,000 $0.1260
$0.1260 / $0.1331 Buy Now
DISTI # 581-NOJA106M010
Mouser Electronics Niobium Oxide Capacitors 10V 10uF 20% RoHS: Compliant 2835
  • 1 $0.3900
  • 10 $0.1980
  • 100 $0.1750
  • 500 $0.1420
  • 1,000 $0.1300
  • 2,000 $0.1090
  • 10,000 $0.0980
  • 50,000 $0.0890
$0.0890 / $0.3900 Buy Now
DISTI # 70001329
RS Capacitor, Niobium Oxide, Cap 10 uF, Tol 20%,10 VDC, SMT, 3216-18 Min Qty: 1 Package Multiple: 1 Container: Bulk 26
  • 1 $0.3100
  • 10 $0.2940
  • 50 $0.2790
  • 100 $0.2630
$0.2630 / $0.3100 Buy Now
Future Electronics NOJ Series 1206 10 uF ±20 % 10 V Surface Mount Niobium Oxide Capacitor RoHS: Compliant pbFree: Yes Min Qty: 2000 Package Multiple: 2000 Lead time: 17 Weeks Container: Reel 2000
Reel
  • 2,000 $0.0753
  • 4,000 $0.0740
  • 6,000 $0.0732
  • 8,000 $0.0726
  • 10,000 $0.0709
$0.0709 / $0.0753 Buy Now
DISTI # NOJA106M010RWJ
TTI Niobium Oxide Capacitors 10V 10uF 20% RoHS: Compliant pbFree: Pb-Free Min Qty: 2000 Package Multiple: 2000 Container: Reel Americas - 0
  • 2,000 $0.0770
  • 4,000 $0.0760
  • 6,000 $0.0740
  • 10,000 $0.0730
  • 20,000 $0.0710
  • 50,000 $0.0700
$0.0700 / $0.0770 Buy Now
Future Electronics NOJ Series 1206 10 uF �20 % 10 V Surface Mount Niobium Oxide Capacitor Min Qty: 2000 Package Multiple: 2000 2000
null
  • 2,000 $0.0753
  • 4,000 $0.0740
  • 6,000 $0.0732
  • 8,000 $0.0726
  • 10,000 $0.0709
$0.0709 / $0.0753 Buy Now
DISTI # NOJA106M010
TME Capacitor: niobium, OxiCap, SMD, 10uF, 10VDC, A, 1206, ±20% Min Qty: 500 0
  • 500 $0.2330
  • 1,000 $0.2160
  • 2,000 $0.1940
  • 6,000 $0.1160
$0.1160 / $0.2330 RFQ
DISTI # SMC-NOJA106M010RWJ
Sensible Micro Corporation OEM Excess 5-7 Days Leadtime, We are an AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days 24199
RFQ
DISTI # NOJA106M010RWJ
Avnet Abacus Niobium Oxide Capacitor 10 uF 10 V 20 2200 mohm 105 C 1206 3216 Metric - Tape and Reel (Alt: NOJA106M010RWJ) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 16 Weeks, 0 Days Container: Reel Abacus - 0
Buy Now
DISTI # NOJA106M010RWJ
Avnet Asia Niobium Oxide Capacitor, 10 uF, 10 V, ? 20%, 2200 mohm, 105 ?C, 1206 [3216 Metric] (Alt: NOJA106M010RWJ) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 14 Weeks, 0 Days 0
RFQ

Part Details for NOJA106M010RWJ

NOJA106M010RWJ CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

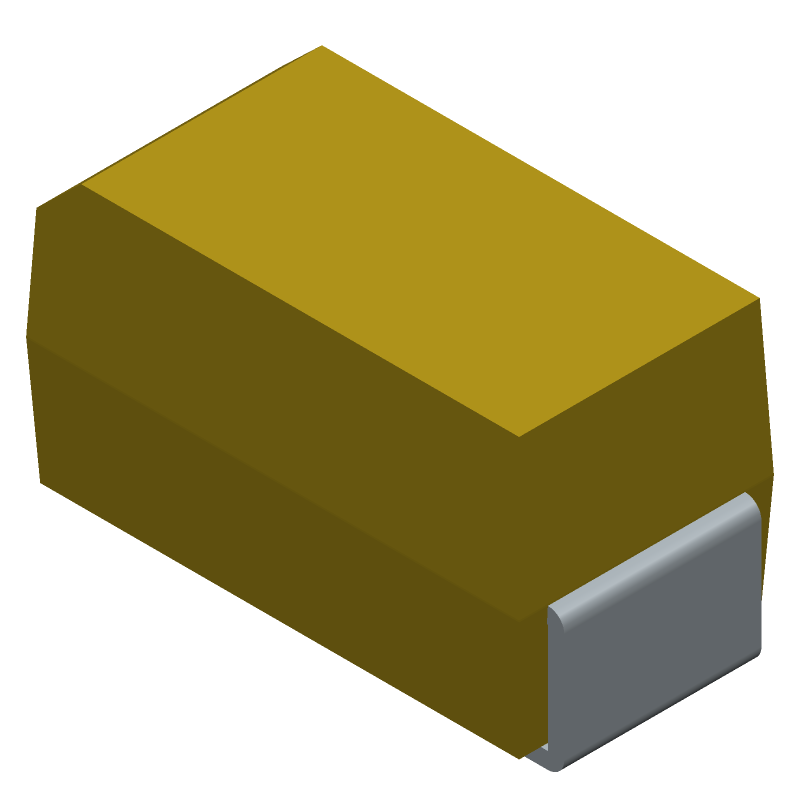

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

NOJA106M010RWJ Part Data Attributes

Parametric Data
NOJA106M010RWJ Kyocera AVX Components
Buy Now Datasheet
Compare Parts:
NOJA106M010RWJ Kyocera AVX Components Special Capacitor, Niobium, 10V, 20% +Tol, 20% -Tol, 10uF, Surface Mount, 1206, CHIP
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer KYOCERA AVX COMPONENTS CORP
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
Factory Lead Time 17 Weeks
Samacsys Manufacturer Kyocera AVX
Additional Feature ESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ
Capacitance 10 µF
Capacitor Type NIOBIUM CAPACITOR
Dielectric Material NIOBIUM OXIDE
ESR 2200 mΩ
Height 1.6 mm
JESD-609 Code e3
Leakage Current 0.002 mA
Length 3.2 mm
Mounting Feature SURFACE MOUNT
Negative Tolerance 20%
Number of Terminals 2
Operating Temperature-Max 105 °C
Operating Temperature-Min -55 °C
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Packing Method TR, 7 INCH
Polarity POLARIZED
Positive Tolerance 20%
Rated (DC) Voltage (URdc) 10 V
Reference Standard AEC-Q200
Ripple Current 81 mA
Size Code 1206
Surface Mount YES
Tan Delta 0.06
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal Shape J BEND
Width 1.6 mm

NOJA106M010RWJ Related Parts

NOJA106M010RWJ Frequently Asked Questions (FAQ)

  • The recommended soldering temperature profile for the NOJA106M010RWJ is a peak temperature of 260°C for 10-30 seconds, with a ramp-up rate of 3°C/s and a ramp-down rate of 6°C/s.

  • Yes, the NOJA106M010RWJ is designed to withstand high-vibration environments. It has a vibration rating of 10-2000 Hz, 10G peak acceleration, and can operate in environments with high mechanical stress.

  • Yes, the NOJA106M010RWJ is compatible with lead-free soldering processes and is RoHS compliant.

  • The maximum operating temperature range for the NOJA106M010RWJ is -55°C to 125°C.

  • Yes, the NOJA106M010RWJ is designed to operate in high-humidity environments and has a moisture sensitivity level (MSL) rating of 3.
