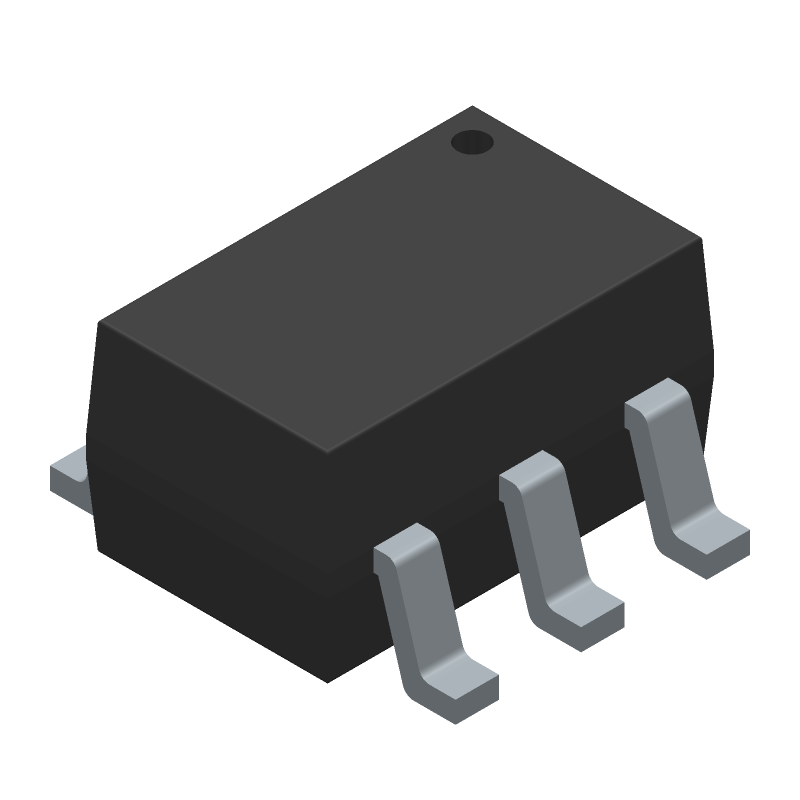

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for NC7WZ17P6X by onsemi
Results Overview of NC7WZ17P6X by onsemi
- Distributor Offerings: (33 listings)
- Number of FFF Equivalents: (4 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Renewable Energy
Automotive
NC7WZ17P6X Information
NC7WZ17P6X by onsemi is a Gate.
Gates are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for NC7WZ17P6X
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
26AC2651
|
Newark | Uhs 2 Buffer Schmitt Rohs Compliant: Yes |Onsemi NC7WZ17P6X RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 6000 |
|
$0.0210 | Buy Now |
|
DISTI #
NC7WZ17P6XCT-ND
|
DigiKey | IC BUFFER NON-INVERT 5.5V SC88 Min Qty: 1 Lead time: 5 Weeks Container: Digi-ReelĀ®, Cut Tape (CT), Tape & Reel (TR) | Temporarily Out of Stock |
|
$0.0262 / $0.1000 | Buy Now |
|
DISTI #
512-NC7WZ17P6X
|
Mouser Electronics | Buffers & Line Drivers UHS 2 BUFFER SCHMITT RoHS: Compliant | 97516 |
|
$0.0370 / $0.2900 | Buy Now |
|
DISTI #
V72:2272_06305432
|
Arrow Electronics | Schmitt Trigger Buffer 2-CH Non-Inverting CMOS 6-Pin SC-88 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 5 Weeks Date Code: 2422 Container: Cut Strips | Americas - 16258 |
|
$0.0975 / $0.1010 | Buy Now |
|
DISTI #
V79:2366_17787351
|
Arrow Electronics | Schmitt Trigger Buffer 2-CH Non-Inverting CMOS 6-Pin SC-88 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 36 Weeks Date Code: 2225 | Americas - 350 |
|
$0.0314 / $0.0965 | Buy Now |
|
|
Future Electronics | NC7WZ17 Series 5.5 V TinyLogic UHS Dual Buffer w/ Schmitt Trigger Inputs-SC-70-6 RoHS: Not Compliant pbFree: Yes Min Qty: 3000 Package Multiple: 3000 Lead time: 6 Weeks Container: Reel | 6000Reel |
|
$0.0198 / $0.0217 | Buy Now |
|
|
Future Electronics | NC7WZ17 Series 5.5 V TinyLogic UHS Dual Buffer w/ Schmitt Trigger Inputs-SC-70-6 RoHS: Not Compliant pbFree: Yes Min Qty: 30000 Package Multiple: 3000 Lead time: 6 Weeks Container: Reel | 0Reel |
|
$0.0198 / $0.0217 | Buy Now |
|
|
Onlinecomponents.com | NC7WZ17 Series 5.5 V TinyLogic UHS Dual Buffer w/ Schmitt Trigger Inputs-SC-70-6 RoHS: Compliant |
27000 In Stock |
|
$0.0354 / $0.0468 | Buy Now |
|
DISTI #
83637667
|
Verical | Schmitt Trigger Buffer 2-CH Non-Inverting CMOS 6-Pin SC-88 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Date Code: 2429 | Americas - 27000 |
|
$0.0427 / $0.0551 | Buy Now |
|
DISTI #
82727041
|
Verical | Schmitt Trigger Buffer 2-CH Non-Inverting CMOS 6-Pin SC-88 T/R RoHS: Compliant Min Qty: 258 Package Multiple: 1 Date Code: 2422 | Americas - 16258 |
|
$0.0975 / $0.0994 | Buy Now |
Part Details for NC7WZ17P6X
NC7WZ17P6X CAD Models
NC7WZ17P6X Part Data Attributes
|
|
NC7WZ17P6X
onsemi
Buy Now
Datasheet
|
Compare Parts:
NC7WZ17P6X
onsemi
TinyLogic UHS Dual Buffer with Schmitt Trigger Inputs, SC-88-6 / SC-70-6 / SOT-363-6, 3000-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | SC-88-6 / SC-70-6 / SOT-363-6 | |
| Package Description | SC-70, 6 PIN | |
| Manufacturer Package Code | 419B-02 | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 5 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Family | LVC/LCX/Z | |
| JESD-30 Code | R-PDSO-G6 | |
| JESD-609 Code | e3 | |
| Length | 2 mm | |
| Load Capacitance (CL) | 50 pF | |
| Logic IC Type | BUFFER | |
| Max I(ol) | 0.032 A | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 2 | |
| Number of Inputs | 1 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP6,.08 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Supply Current-Max (ICC) | 100 mA | |
| Prop. Delay@Nom-Sup | 13.1 ns | |
| Propagation Delay (tpd) | 15.8 ns | |
| Qualification Status | Not Qualified | |
| Schmitt Trigger | YES | |
| Seated Height-Max | 1.1 mm | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 1.65 V | |
| Supply Voltage-Nom (Vsup) | 1.8 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 1.25 mm |
Alternate Parts for NC7WZ17P6X
This table gives cross-reference parts and alternative options found for NC7WZ17P6X. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of NC7WZ17P6X, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 74LVC2G17DW-7 | Diodes Incorporated | $0.1454 | Buffer, LVC/LCX/Z Series, 2-Func, 1-Input, CMOS, PDSO6, GREEN, SOT-363, 6 PIN | NC7WZ17P6X vs 74LVC2G17DW-7 |
| NC7WZ17P6_NL | Fairchild Semiconductor Corporation | Check for Price | Buffer, LVC/LCX/Z Series, 2-Func, 1-Input, CMOS, PDSO6, 1.25 MM, LEAD FREE, EIAJ, SC-88, SC-70, 6 PIN | NC7WZ17P6X vs NC7WZ17P6_NL |
| NC7WZ17P6X-G | Fairchild Semiconductor Corporation | Check for Price | Gate | NC7WZ17P6X vs NC7WZ17P6X-G |
| NC7WZ17P6 | onsemi | Check for Price | TinyLogic UHS Dual Buffer with Schmitt Trigger Inputs, 250-REEL | NC7WZ17P6X vs NC7WZ17P6 |
NC7WZ17P6X Frequently Asked Questions (FAQ)
-
The maximum operating frequency of the NC7WZ17P6X is 250 MHz.
-
Yes, the NC7WZ17P6X is compatible with both 3.3V and 5V systems, making it a versatile component for various applications.
-
The propagation delay of the NC7WZ17P6X is typically around 3.5 ns, but this can vary depending on the operating conditions and load capacitance.
-
Yes, the NC7WZ17P6X is rated for operation up to 125Ā°C, making it suitable for high-temperature applications.
-
Yes, the NC7WZ17P6X is a low-power device, with a typical quiescent current of around 10 Ī¼A, making it suitable for battery-powered and low-power applications.
