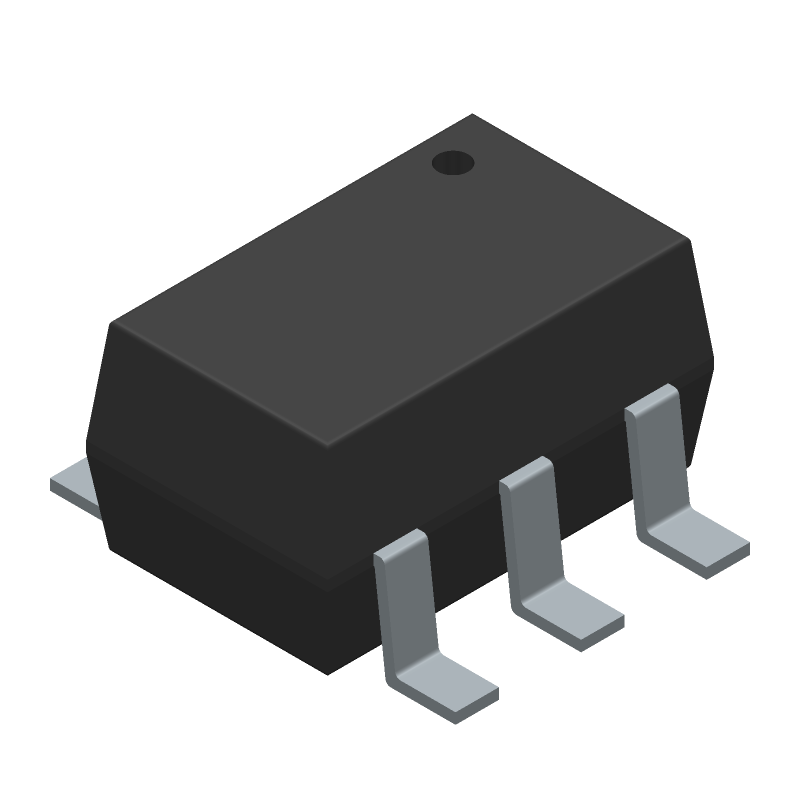

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for NC7WZ07P6X by onsemi
Results Overview of NC7WZ07P6X by onsemi
- Distributor Offerings: (32 listings)
- Number of FFF Equivalents: (3 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Automotive
NC7WZ07P6X Information
NC7WZ07P6X by onsemi is a Gate.
Gates are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for NC7WZ07P6X
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
12X9048
|
Newark | Buffer, Non-Inverting, Sc-70-6, Full Reel, Logic Device Type:Buffer, Non Inverting, Logic Family/Base Number:-, Ic Case/Package:Sc-70, No. Of Pins:6Pins, Supply Voltage Min:1.65V, Supply Voltage Max:5.5V, Logic Ic Family:Nc7W Rohs Compliant: Yes |Onsemi NC7WZ07P6X RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 1 Container: Reel | 165000 |
|
$0.0320 / $0.0390 | Buy Now |
|
DISTI #
58K9469
|
Newark | Non Inverting Buffer, Open Drain, Sc-70-6, Logic Device Type:Buffer, Non Inverting, Logic Family/Base Number:-, Ic Case/Package:Sc-70, No. Of Pins:6Pins, Supply Voltage Min:1.65V, Supply Voltage Max:5.5V, Logic Ic Family:Nc7W Rohs Compliant: Yes |Onsemi NC7WZ07P6X RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 5716 |
|
$0.0330 | Buy Now |
|
DISTI #
26AC2646
|
Newark | Dual Buffer O/D Rohs Compliant: Yes |Onsemi NC7WZ07P6X RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0270 | Buy Now |
|
DISTI #
NC7WZ07P6XCT-ND
|
DigiKey | IC BUFFER NON-INVERT 5.5V SC88 Min Qty: 1 Lead time: 6 Weeks Container: Digi-Reel®, Tape & Reel (TR), Cut Tape (CT) | Temporarily Out of Stock |
|
$0.0239 / $0.1000 | Buy Now |
|
DISTI #
12X9048
|
Avnet Americas | Buffer, Dual, 1 Input, 6 Pins, SC-88, NC7WZ07 - Tape and Reel (Alt: 12X9048) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 53 Weeks, 5 Days Container: Reel | 165000 Partner Stock |
|
$0.0440 / $0.0490 | Buy Now |
|
DISTI #
58K9469
|
Avnet Americas | Buffer, Dual, 1 Input, 6 Pins, SC-88, NC7WZ07 - Product that comes on tape, but is not reeled (Alt: 58K9469) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 16 Weeks, 4 Days Container: Ammo Pack | 5716 Partner Stock |
|
$0.0740 / $0.3150 | Buy Now |
|
DISTI #
512-NC7WZ07P6X
|
Mouser Electronics | Buffers & Line Drivers UHS Dual Buffer RoHS: Compliant | 86756 |
|
$0.0290 / $0.1000 | Buy Now |
|
DISTI #
E02:0323_00037075
|
Arrow Electronics | Buffer/Driver 2-CH Non-Inverting Open Drain CMOS 6-Pin SC-88 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 6 Weeks Date Code: 2513 | Europe - 51000 |
|
$0.0216 / $0.0268 | Buy Now |
|
|
Future Electronics | NC7WZ07 Series 5.5 V TinyLogic UHS Dual Buffer (Open Drain Output) - SC-70-6 RoHS: Compliant pbFree: Yes Min Qty: 3000 Package Multiple: 3000 Lead time: 6 Weeks Container: Reel | 6000Reel |
|
$0.0228 / $0.0250 | Buy Now |
|
|
Future Electronics | NC7WZ07 Series 5.5 V TinyLogic UHS Dual Buffer (Open Drain Output) - SC-70-6 RoHS: Compliant pbFree: Yes Min Qty: 3000 Package Multiple: 3000 Lead time: 6 Weeks Container: Reel | 0Reel |
|
$0.0228 / $0.0250 | Buy Now |
Part Details for NC7WZ07P6X
NC7WZ07P6X CAD Models
NC7WZ07P6X Part Data Attributes
|
|
NC7WZ07P6X
onsemi
Buy Now
Datasheet
|
Compare Parts:
NC7WZ07P6X
onsemi
TinyLogic UHS Dual Buffer (Open-Drain Outputs), SC-88-6 / SC-70-6 / SOT-363-6, 3000-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | SC-88-6 / SC-70-6 / SOT-363-6 | |
| Manufacturer Package Code | 419B-02 | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 16 Weeks, 4 Days | |
| Samacsys Manufacturer | onsemi | |
| Family | LVC/LCX/Z | |
| JESD-30 Code | R-PDSO-G6 | |
| JESD-609 Code | e3 | |
| Length | 2 mm | |
| Load Capacitance (CL) | 50 pF | |
| Logic IC Type | BUFFER | |
| Max I(ol) | 0.032 A | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 2 | |
| Number of Inputs | 1 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Characteristics | OPEN-DRAIN | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP6,.08 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Packing Method | TR, 7 INCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Supply Current-Max (ICC) | 0.00001 mA | |
| Prop. Delay@Nom-Sup | 4.8 ns | |
| Propagation Delay (tpd) | 12.6 ns | |
| Qualification Status | Not Qualified | |
| Schmitt Trigger | NO | |
| Seated Height-Max | 1.1 mm | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 1.65 V | |
| Supply Voltage-Nom (Vsup) | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 1.25 mm |
Alternate Parts for NC7WZ07P6X
This table gives cross-reference parts and alternative options found for NC7WZ07P6X. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of NC7WZ07P6X, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| NC7WZ07P6 | onsemi | Check for Price | TinyLogic UHS Dual Buffer (Open-Drain Outputs), 250-REEL | NC7WZ07P6X vs NC7WZ07P6 |
| NC7WZ07P6X_F042 | Fairchild Semiconductor Corporation | Check for Price | Buffer, CMOS, PDSO6 | NC7WZ07P6X vs NC7WZ07P6X_F042 |
| NC7WZ07P6X | Fairchild Semiconductor Corporation | Check for Price | Buffer, LVC/LCX/Z Series, 2-Func, 1-Input, CMOS, PDSO6, 1.25 MM, EIAJ, SC-88, SC-70, 6 PIN | NC7WZ07P6X vs NC7WZ07P6X |
NC7WZ07P6X Frequently Asked Questions (FAQ)
-
The recommended operating voltage range for the NC7WZ07P6X is 1.65V to 5.5V.
-
To properly power down the NC7WZ07P6X, ensure that the input voltage (VCC) is reduced to 0V and the input signals are held at a valid logic level (either VCC or GND).
-
The maximum frequency of operation for the NC7WZ07P6X is 250 MHz.
-
To handle ESD protection for the NC7WZ07P6X, ensure that the device is handled and stored in an ESD-protected environment, and use ESD-protected equipment and tools during assembly and testing.
-
The thermal resistance (RθJA) of the NC7WZ07P6X is 145°C/W.
