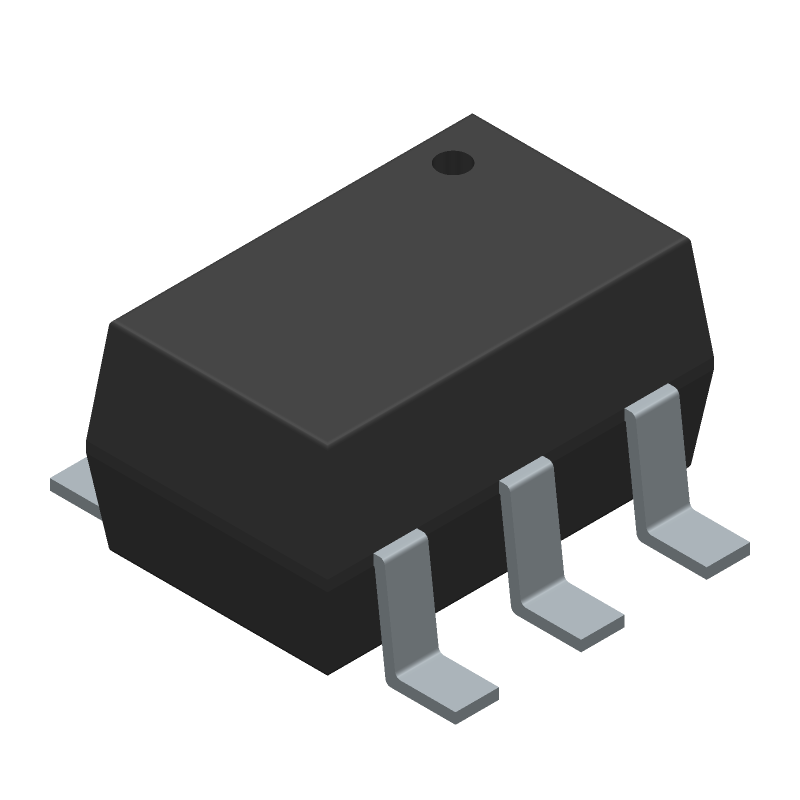

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for NC7SZ58P6X by onsemi
Results Overview of NC7SZ58P6X by onsemi
- Distributor Offerings: (21 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (7 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Financial Technology (Fintech)
Smart Cities
Transportation and Logistics
Agriculture Technology
Telecommunications
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Education and Research
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Healthcare
Entertainment and Gaming
NC7SZ58P6X Information
NC7SZ58P6X by onsemi is an Other Logic IC.
Other Logic ICs are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for NC7SZ58P6X
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
53M9508
|
Newark | Ic, Nc7Sz Tiny, Smd, Sc70-6, Logic Family/Base Number:Nc7S58, Logic Type:Multi-Function Logic Gate, Output Current:32Ma, No. Of Inputs:2, Supply Voltage Min:1.65V, Supply Voltage Max:5.5V, Logic Case Style:Sc-70, No. Of Pins:6Pins, rohs Compliant: Yes |Onsemi NC7SZ58P6X RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 4394 |
|
$0.0840 / $0.3170 | Buy Now |
|
DISTI #
26AC2628
|
Newark | Uhs 2-Input Logic Gate Rohs Compliant: Yes |Onsemi NC7SZ58P6X RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0260 | Buy Now |
|
DISTI #
29X6806
|
Newark | Logic Function:Configurable Multiple Function Gate, No. Of Elements:Single, No. Of Inputs:2Inputs, No. Of Pins:6Pins, Ic Case/Package:Sc-70, Product Range:7S58, Logic Ic Family:7Sz, Supply Voltage Min:1.65V, Supply Voltage Max:5.5Vrohs Compliant: Yes |Onsemi NC7SZ58P6X RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0330 / $0.0560 | Buy Now |
|
DISTI #
NC7SZ58P6XCT-ND
|
DigiKey | IC MF CFG 1-CIR 3-IN SC88 Min Qty: 1 Lead time: 6 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
22975 In Stock |
|
$0.0316 / $0.1000 | Buy Now |
|
DISTI #
512-NC7SZ58P6X
|
Mouser Electronics | Logic Gates UHS 2-Inp Logic Gate RoHS: Compliant | 16892 |
|
$0.0340 / $0.1000 | Buy Now |
|
|
Future Electronics | NC7SZ58 Series 5.5V TinyLogic® Universal Configurable 2-Input Logic Gate-SC-70-6 RoHS: Compliant pbFree: Yes Min Qty: 3000 Package Multiple: 3000 Lead time: 6 Weeks Container: Reel | 27000Reel |
|
$0.0228 / $0.0250 | Buy Now |
|
|
Future Electronics | NC7SZ58 Series 5.5V TinyLogic® Universal Configurable 2-Input Logic Gate-SC-70-6 RoHS: Compliant pbFree: Yes Min Qty: 3000 Package Multiple: 3000 Lead time: 6 Weeks Container: Reel | 0Reel |
|
$0.0228 / $0.0250 | Buy Now |
|
|
Onlinecomponents.com | TinyLogic UHS Universal Configurable 2-Input Logic Gates RoHS: Compliant | 0 |
|
$0.0293 / $0.0346 | Buy Now |
|
|
Quest Components | SPECIALTY LOGIC CIRCUIT, PDSO6 | 225 |
|
$0.0658 / $0.1052 | Buy Now |
|
|
Future Electronics | NC7SZ58 Series 5.5V TinyLogic� Universal Configurable 2-Input Logic Gate-SC-70-6 Min Qty: 3000 Package Multiple: 3000 |
27000 null |
|
$0.0228 / $0.0250 | Buy Now |
Part Details for NC7SZ58P6X
NC7SZ58P6X CAD Models
NC7SZ58P6X Part Data Attributes
|
|
NC7SZ58P6X
onsemi
Buy Now
Datasheet
|
Compare Parts:
NC7SZ58P6X
onsemi
TinyLogic UHS Universal Configurable 2-Input Logic Gates, SC-88-6 / SC-70-6 / SOT-363-6, 3000-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | SC-88-6 / SC-70-6 / SOT-363-6 | |
| Manufacturer Package Code | 419B-02 | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 6 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Additional Feature | IT ALSO HAS SC-88 PACKAGE | |
| Family | LVC/LCX/Z | |
| JESD-30 Code | R-PDSO-G6 | |
| JESD-609 Code | e3 | |
| Length | 2 mm | |
| Load Capacitance (CL) | 50 pF | |
| Logic IC Type | MAJORITY LOGIC GATE | |
| Max I(ol) | 0.032 A | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Inputs | 2 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP6,.08 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Supply Current-Max (ICC) | 50 mA | |
| Prop. Delay@Nom-Sup | 8.5 ns | |
| Propagation Delay (tpd) | 14.5 ns | |
| Qualification Status | Not Qualified | |
| Schmitt Trigger | NO | |
| Seated Height-Max | 1.1 mm | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 1.65 V | |
| Supply Voltage-Nom (Vsup) | 2.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 1.25 mm |
Alternate Parts for NC7SZ58P6X
This table gives cross-reference parts and alternative options found for NC7SZ58P6X. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of NC7SZ58P6X, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| NC7SZ58P6X | Fairchild Semiconductor Corporation | Check for Price | Logic Circuit, CMOS, PDSO6, ROHS COMPLIANT, SC70, SC-88A, 6 PIN | NC7SZ58P6X vs NC7SZ58P6X |
| NLV7SZ58DFT2G | onsemi | Check for Price | Flexible Choice Logic (9 Configurable Functions), Inverting, SC-88-6 / SC-70-6 / SOT-363-6, 3000-REEL, Automotive Qualified | NC7SZ58P6X vs NLV7SZ58DFT2G |
| 74LVC1G98GW | Nexperia | Check for Price | Logic Circuit, CMOS, PDSO6 | NC7SZ58P6X vs 74LVC1G98GW |
| 74LVC1G97GW | NXP Semiconductors | Check for Price | SPECIALTY LOGIC CIRCUIT, PDSO6, PLASTIC, SOT-363, SC-88, 6 PIN | NC7SZ58P6X vs 74LVC1G97GW |
| 74LVC1G97GW | Nexperia | Check for Price | Logic Circuit, CMOS, PDSO6 | NC7SZ58P6X vs 74LVC1G97GW |
| 74LVC1G57GW | NXP Semiconductors | Check for Price | IC SPECIALTY LOGIC CIRCUIT, PDSO6, PLASTIC, SOT-363, SC-88, 6 PIN, Logic IC:Other | NC7SZ58P6X vs 74LVC1G57GW |
| 74LVC1G58GW | Nexperia | Check for Price | Logic Circuit, CMOS, PDSO6 | NC7SZ58P6X vs 74LVC1G58GW |
