Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT

Part Details for N3432-6002RB by 3M Interconnect

Results Overview of N3432-6002RB by 3M Interconnect

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

N3432-6002RB Information

N3432-6002RB by 3M Interconnect is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for N3432-6002RB

Part # Distributor Description Stock Price Buy
DISTI # 69K7221
Newark Wire-Board Connector, Header, 40 Position, 2.54Mm, Connector Systems:Wire-To-Board, Pitch Spacing:2.54Mm, No. Of Rows:2Rows, No. Of Contacts:40Contacts, Contact Termination Type:Through Hole Straight, Product Range:3000 Series Rohs Compliant: Yes |3M N3432-6002RB RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 68
  • 1 $4.1100
  • 10 $4.1100
  • 25 $4.1100
  • 50 $3.7900
  • 100 $3.7900
  • 250 $3.7900
  • 500 $3.7900
  • 1,000 $3.2900
$3.2900 / $4.1100 Buy Now
DISTI # MHS40L-ND
DigiKey CONN HEADER VERT 40POS 2.54MM Min Qty: 1 Lead time: 8 Weeks Container: Bulk 216
In Stock
  • 1 $5.5000
  • 10 $4.6710
  • 200 $3.7805
  • 600 $3.4986
  • 1,000 $3.3748
$3.3748 / $5.5000 Buy Now
DISTI # 69K7221
Avnet Americas Conn Ejector Header HDR 40 POS 2.54mm Solder ST Thru-Hole - Bulk (Alt: 69K7221) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 9 Weeks, 4 Days Container: Bulk 68 Partner Stock
  • 1 $5.9900
  • 10 $5.7400
  • 25 $5.3000
  • 50 $5.0000
  • 100 $4.7800
$4.7800 / $5.9900 Buy Now
DISTI # 7000057582
Avnet Americas Conn Ejector Header HDR 40 POS 2.54mm Solder ST Thru-Hole - Bulk (Alt: 7000057582) RoHS: Compliant Min Qty: 200 Package Multiple: 200 Lead time: 111 Weeks, 0 Days Container: Bulk 0
RFQ
DISTI # 7100251456
Avnet Americas Conn Ejector Header HDR 40 POS 2.54mm Solder ST Thru-Hole - Bulk (Alt: 7100251456) RoHS: Compliant Min Qty: 200 Package Multiple: 200 Lead time: 13 Weeks, 4 Days Container: Bulk 0
  • 200 $3.3157
  • 400 $3.2669
  • 800 $3.2181
  • 1,200 $3.2913
  • 1,600 $3.2182
$3.2181 / $3.3157 Buy Now
DISTI # 517-N3432-6002RB
Mouser Electronics Headers & Wire Housings BOARDMT HDR 40P NO LATCH/EJECTOR RoHS: Compliant 166
  • 1 $5.4500
  • 10 $4.6700
  • 25 $4.6300
  • 50 $4.6000
  • 100 $3.9100
  • 200 $3.7800
  • 600 $3.4900
  • 1,000 $3.3700
$3.3700 / $5.4500 Buy Now
DISTI # V36:1790_06628600
Arrow Electronics Conn Ejector Header HDR 40 POS 2.54mm Solder ST Top Entry Thru-Hole RoHS: Compliant Min Qty: 17 Package Multiple: 1 Lead time: 9 Weeks Americas - 17
  • 17 $3.7240
  • 25 $3.7060
  • 50 $3.6600
  • 100 $3.3590
  • 200 $3.1890
  • 600 $3.1220
  • 1,000 $2.9760
$2.9760 / $3.7240 Buy Now
DISTI # MMM7100251456
Heilind Electronics 7000057582 80400027886 40/HDR/STR/HT/.112/30AVG/ROHS Americas - 0 in Stock
  • 200 $3.9323
  • 400 $3.8698
  • 600 $3.8094
  • 2,200 $3.7508
$3.7508 / $3.9323 Buy Now
DISTI # 77824404
Verical Conn Ejector Header HDR 40 POS 2.54mm Solder ST Top Entry Thru-Hole RoHS: Compliant Min Qty: 17 Package Multiple: 1 Americas - 17
  • 17 $3.5960
$3.5960 Buy Now
Bristol Electronics   32
RFQ
DISTI # N3432-6002RB
TTI Headers & Wire Housings BOARDMT HDR 40P NO LATCH/EJECTOR RoHS: Compliant pbFree: Pb-Free Min Qty: 1 Package Multiple: 1 Container: Tray Americas - 109
In Stock
  • 1 $5.3400
  • 10 $4.5300
  • 20 $4.4400
  • 50 $4.3500
  • 100 $3.8700
  • 400 $3.3900
  • 600 $3.2900
$3.2900 / $5.3400 Buy Now

Part Details for N3432-6002RB

N3432-6002RB CAD Models

  • Part Symbol

    Part Symbol

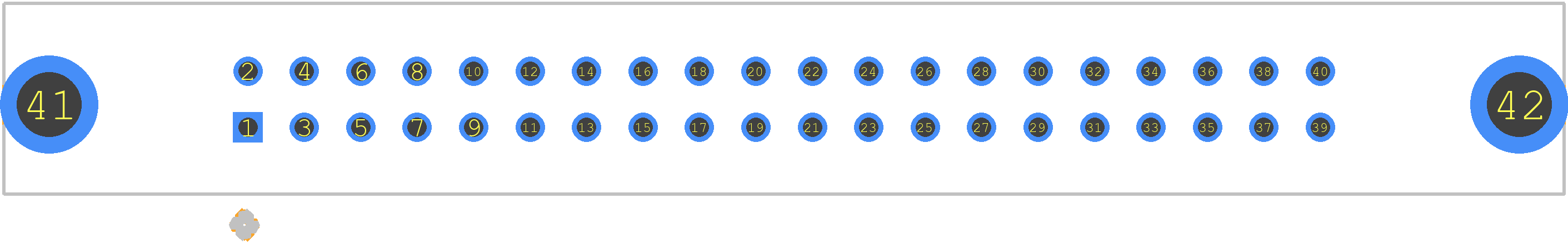

  • Footprint

    footprint

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

N3432-6002RB Part Data Attributes

Parametric Data
N3432-6002RB 3M Interconnect
Buy Now Datasheet
Compare Parts:
N3432-6002RB 3M Interconnect Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer 3M ELECTRONIC PRODUCTS DIVISION
Package Description ROHS COMPLIANT
Reach Compliance Code compliant
Factory Lead Time 111 Weeks
Samacsys Manufacturer 3M
Additional Feature 3M, POLARIZED
Body Breadth 0.34 inch
Body Depth 0.68 inch
Body Length 2.76 inch
Connector Type BOARD CONNECTOR
Contact Finish Mating NOT SPECIFIED
Contact Finish Termination Matte Tin (Sn) - with Nickel (Ni) barrier
Contact Gender MALE
Contact Material NOT SPECIFIED
Contact Pattern RECTANGULAR
Contact Style SQ PIN-SKT
DIN Conformance NO
Filter Feature NO
IEC Conformance NO
Insulator Material GLASS FILLED POLYESTER
JESD-609 Code e3
MIL Conformance NO
Mating Contact Pitch 0.1 inch
Mixed Contacts NO
Mounting Style STRAIGHT
Mounting Type BOARD
Number Of Connectors ONE
Number Of PCB Rows 2
Number of Rows Loaded 2
Option GENERAL PURPOSE
Terminal Pitch 2.54 mm
Termination Type SOLDER
Total Number of Contacts 40
UL Flammability Code 94V-0

Alternate Parts for N3432-6002RB

This table gives cross-reference parts and alternative options found for N3432-6002RB. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of N3432-6002RB, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
842-816-4030-435 Amphenol Corporation Check for Price Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Latch, Receptacle, ROHS COMPLIANT N3432-6002RB vs 842-816-4030-435
3432-660T02TC 3M Interconnect Check for Price Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Latch & Eject, Gray Insulator, Receptacle N3432-6002RB vs 3432-660T02TC
N3432-6502RB 3M Interconnect Check for Price Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT N3432-6002RB vs N3432-6502RB
N3432-650T02RB 3M Interconnect Check for Price Board Connector, 40 Contact(s), 1 Row(s), Male, Straight, Press Fit Terminal, ROHS COMPLIANT N3432-6002RB vs N3432-650T02RB
