Memory / Flash Memories / MX25L3233FZNI-08G
Datasheets
MX25L3233FZNI-08G by: Macronix International Co Ltd

Flash, 8MX4, PDSO8, WSON-8

Part Details for MX25L3233FZNI-08G by Macronix International Co Ltd

Results Overview of MX25L3233FZNI-08G by Macronix International Co Ltd

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Internet of Things (IoT) Environmental Monitoring Financial Technology (Fintech) Smart Cities Transportation and Logistics Agriculture Technology Telecommunications Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Education and Research Consumer Electronics Security and Surveillance Audio and Video Systems Computing and Data Storage Healthcare Entertainment and Gaming

MX25L3233FZNI-08G Information

MX25L3233FZNI-08G by Macronix International Co Ltd is a Flash Memory.
Flash Memories are under the broader part category of Memory Components.

Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.

Price & Stock for MX25L3233FZNI-08G

Part # Distributor Description Stock Price Buy
DISTI # 07AH6745
Newark Flash Memory, 32Mbit, -40 To 85Deg C, Flash Memory Type:Serial Nor, Memory Size:32Mbit, Flash Memory Configuration:4M X 8Bit, Ic Interface Type:Spi, Memory Case Style:Wson, No. Of Pins:8Pins, Clock Frequency:133Mhz, Access Time:-, Rohs Compliant: Yes |Macronix MX25L3233FZNI-08G RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 230
  • 1 $0.8200
  • 10 $0.7720
  • 100 $0.7240
  • 500 $0.6990
  • 1,140 $0.6770
  • 2,850 $0.6610
  • 10,260 $0.6260
$0.6260 / $0.8200 Buy Now
DISTI # MX25L3233FZNI-08G-ND
DigiKey IC FLASH 32MBIT SPI/QUAD 8WSON Min Qty: 1 Lead time: 10 Weeks Container: Tray 4642
In Stock
  • 1 $0.6600
  • 10 $0.6230
  • 25 $0.6064
  • 50 $0.5936
  • 100 $0.5806
  • 250 $0.5632
  • 570 $0.5476
  • 1,140 $0.5345
  • 5,130 $0.5064
$0.5064 / $0.6600 Buy Now
DISTI # MX25L3233FZNI-08G
Avnet Americas Flash Memory, Serial NOR, 32 Mbit, 4M x 8bit, SPI, WSON, 8 Pins - Trays (Alt: MX25L3233FZNI-08G) RoHS: Compliant Min Qty: 570 Package Multiple: 1 Lead time: 10 Weeks, 0 Days Container: Tray 2670
  • 2,850 $0.3968
  • 3,990 $0.3872
  • 6,840 $0.3776
  • 14,250 $0.3680
  • 28,500 $0.3584
$0.3584 / $0.3968 Buy Now
DISTI # V36:1790_14709821
Arrow Electronics NOR Flash Serial (SPI, Dual SPI, Quad SPI) 3V/3.3V 32M-bit 32M/16M/8M x 1/2-bit/4-bit 8ns 8-Pin WSON EP RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2427 Americas - 1948
  • 1 $0.9168
  • 10 $0.8163
  • 25 $0.7458
  • 100 $0.6813
  • 500 $0.6200
  • 1,000 $0.5637
$0.5637 / $0.9168 Buy Now
DISTI # 84991397
Verical NOR Flash Serial (SPI, Dual SPI, Quad SPI) 3V/3.3V 32M-bit 32M/16M/8M x 1/2-bit/4-bit 8ns 8-Pin WSON EP RoHS: Compliant Min Qty: 16 Package Multiple: 1 Date Code: 2427 Americas - 1948
  • 16 $0.8163
  • 25 $0.7458
  • 100 $0.6813
  • 500 $0.6200
  • 1,000 $0.5637
$0.5637 / $0.8163 Buy Now
Future Electronics MX25L3233F Series 32 Mb (x1/x2/x4) 3 V 133 MHz CMOS MXSMIO Flash Memory - WSON-8 Min Qty: 570 Package Multiple: 570 2278
null
  • 570 $0.4200
  • 1,710 $0.4100
  • 2,850 $0.4050
  • 8,550 $0.4000
  • 14,250 $0.3900
$0.3900 / $0.4200 Buy Now
DISTI # MX25L3233FZNI-08G
TME IC: FLASH memory, 32MbFLASH, SPI, 4Mx8bit, 133MHz, 2.65÷3.6V, WSON8 Min Qty: 1 0
  • 1 $0.8900
  • 5 $0.8100
  • 25 $0.7600
  • 100 $0.7200
  • 570 $0.6900
$0.6900 / $0.8900 RFQ
DISTI # MX25L3233FZNI-08G/TRAY
Avnet Silica Flash Memory Serial NOR 32 Mbit 4M x 8bit SPI WSON 8 Pins (Alt: MX25L3233FZNI-08G/TRAY) RoHS: Compliant Min Qty: 570 Package Multiple: 570 Lead time: 12 Weeks, 0 Days Silica - 3420
Buy Now
New Advantage Corporation MX25L3233F Series 32 Mb (x1/x2/x4) 3 V 133 MHz CMOS MXSMIO Flash Memory - WSON-8 RoHS: Compliant Min Qty: 1 Package Multiple: 570 1140
  • 570 $0.7000
  • 1,140 $0.6462
$0.6462 / $0.7000 Buy Now

Part Details for MX25L3233FZNI-08G

MX25L3233FZNI-08G CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

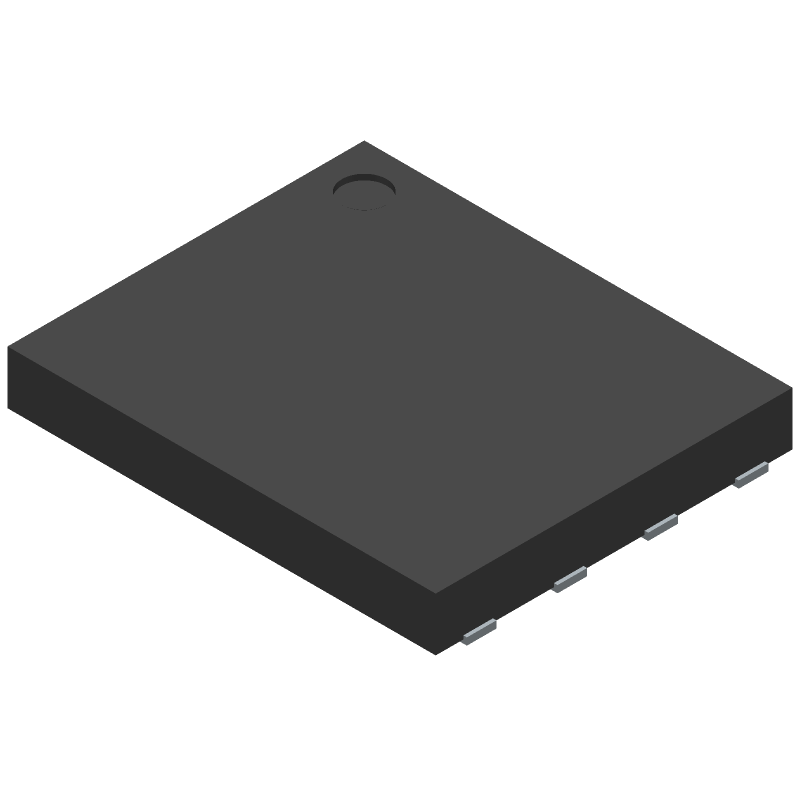

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MX25L3233FZNI-08G Part Data Attributes

Parametric Data
MX25L3233FZNI-08G Macronix International Co Ltd
Buy Now Datasheet
Compare Parts:
MX25L3233FZNI-08G Macronix International Co Ltd Flash, 8MX4, PDSO8, WSON-8
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MACRONIX INTERNATIONAL CO LTD
Package Description WSON-8
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.32.00.51
Factory Lead Time 10 Weeks
Samacsys Manufacturer Macronix
Additional Feature ALSO ORGANISED AS 32MX1
Alternate Memory Width 4
Clock Frequency-Max (fCLK) 133 MHz
Data Retention Time-Min 20
Endurance 100000 Write/Erase Cycles
JESD-30 Code R-PDSO-N8
Length 6 mm
Memory Density 33554432 bit
Memory IC Type FLASH
Memory Width 8
Number of Functions 1
Number of Terminals 8
Number of Words 4194304 words
Number of Words Code 4000000
Operating Mode SYNCHRONOUS
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Organization 4MX8
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code HVSON
Package Equivalence Code SOLCC8,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE
Parallel/Serial SERIAL
Peak Reflow Temperature (Cel) NOT SPECIFIED
Programming Voltage 3 V
Seated Height-Max 0.8 mm
Serial Bus Type SPI
Standby Current-Max 0.00005 A
Supply Current-Max 0.017 mA
Supply Voltage-Max (Vsup) 3.6 V
Supply Voltage-Min (Vsup) 2.65 V
Supply Voltage-Nom (Vsup) 3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Form NO LEAD
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Type NOR TYPE
Width 5 mm
Write Protection HARDWARE/SOFTWARE

MX25L3233FZNI-08G Related Parts

MX25L3233FZNI-08G Frequently Asked Questions (FAQ)

  • The MX25L3233FZNI-08G has a minimum of 100,000 erase cycles, but the actual number of cycles may vary depending on the usage and operating conditions.

  • The hold pin (HOLD#) should be pulled high during power-up and power-down sequences to prevent any unwanted commands from being executed. It's recommended to tie the HOLD# pin to VCC through a resistor to ensure it's in a high state during power transitions.

  • The recommended clock frequency for the MX25L3233FZNI-08G is up to 104 MHz. However, the actual clock frequency may vary depending on the system design and operating conditions.

  • The WP# pin should be tied to VCC or left floating during normal operation to allow write operations. Tying the WP# pin to GND will enable write protection and prevent any write operations.

  • The Deep Power-Down (DPD) mode is a low-power state that reduces the current consumption of the device to a minimum. It's useful for battery-powered devices or systems that require low power consumption during idle periods.
