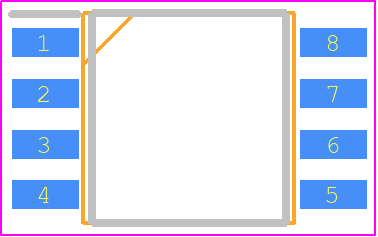

Footprint
-

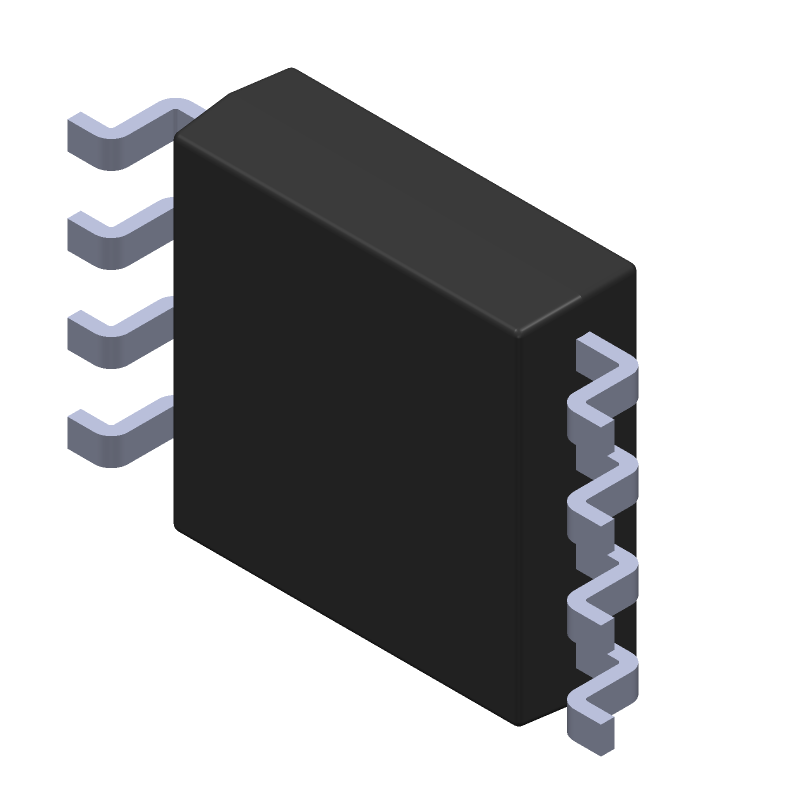

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MX25L3233FM2I-08G by Macronix International Co Ltd
Results Overview of MX25L3233FM2I-08G by Macronix International Co Ltd
- Distributor Offerings: (12 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Financial Technology (Fintech)
Smart Cities
Transportation and Logistics
Agriculture Technology
Telecommunications
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Education and Research
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Healthcare
Entertainment and Gaming
MX25L3233FM2I-08G Information
MX25L3233FM2I-08G by Macronix International Co Ltd is a Flash Memory.
Flash Memories are under the broader part category of Memory Components.
Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.
Price & Stock for MX25L3233FM2I-08G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
07AH6744
|
Newark | Flash Memory, 32Mbit, -40 To 85Deg C, Flash Memory Type:Serial Nor, Memory Size:32Mbit, Flash Memory Configuration:4M X 8Bit, Ic Interface Type:Spi, Memory Case Style:Sop, No. Of Pins:8Pins, Clock Frequency:133Mhz, Access Time:-, Rohs Compliant: Yes |Macronix MX25L3233FM2I-08G RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 60 |
|
$0.5060 / $0.6600 | Buy Now |
|
DISTI #
MX25L3233FM2I-08G-ND
|
DigiKey | IC FLASH 32MBIT SPI/QUAD 8SOP Min Qty: 1 Lead time: 10 Weeks Container: Tube |
17693 In Stock |
|
$0.4458 / $0.5800 | Buy Now |
|
DISTI #
MX25L3233FM2I-08G
|
Avnet Americas | Flash Memory, Serial NOR, 32 Mbit, 4M x 8bit, SPI, SOP, 8 Pins - Rail/Tube (Alt: MX25L3233FM2I-08G) RoHS: Compliant Min Qty: 92 Package Multiple: 1 Lead time: 10 Weeks, 0 Days Container: Tube | 2204 |
|
$0.3136 / $0.3472 | Buy Now |
|
|
Future Electronics | MX25L3233F Series 32 Mb (x1/x2/x4) 3 V SMT CMOS MXSMIO Flash Memory - SOP-8 RoHS: Compliant pbFree: Yes Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Container: Tube | 1671Tube |
|
$0.3500 / $0.3900 | Buy Now |
|
|
Quest Components | FLASH, 4MX8, PDSO8 | 222 |
|
$0.8000 / $2.0000 | Buy Now |
|
|
Quest Components | FLASH, 4MX8, PDSO8 | 24 |
|
$0.7200 / $1.2000 | Buy Now |
|
|
Future Electronics | MX25L3233F Series 32 Mb (x1/x2/x4) 3 V SMT CMOS MXSMIO Flash Memory - SOP-8 Min Qty: 1 Package Multiple: 1 |
1947 null |
|
$0.3500 / $0.3900 | Buy Now |
|
|
Future Electronics | MX25L3233F Series 32 Mb (x1/x2/x4) 3 V SMT CMOS MXSMIO Flash Memory - SOP-8 Min Qty: 92 Package Multiple: 92 |
13734 null |
|
$0.3400 / $0.3800 | Buy Now |
|
DISTI #
MX25L3233FM2I-08G
|
TME | IC: FLASH memory, 32MbFLASH, SPI, 133MHz, 2.65÷3.6V, SOP8, serial Min Qty: 1 | 26 |
|
$0.9000 / $1.0900 | Buy Now |
|
DISTI #
SMC-MX25L3233FM2I-08G
|
Sensible Micro Corporation | AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days | 24044 |
|
RFQ |
Part Details for MX25L3233FM2I-08G
MX25L3233FM2I-08G CAD Models
MX25L3233FM2I-08G Part Data Attributes
|
|
MX25L3233FM2I-08G
Macronix International Co Ltd
Buy Now
Datasheet
|
Compare Parts:
MX25L3233FM2I-08G
Macronix International Co Ltd
Flash, 8MX4, PDSO8, SOP-8
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MACRONIX INTERNATIONAL CO LTD | |
| Package Description | SOP-8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.32.00.51 | |
| Factory Lead Time | 10 Weeks | |
| Samacsys Manufacturer | Macronix | |
| Additional Feature | ALSO ORGANISED AS 32MX1 | |
| Alternate Memory Width | 4 | |
| Clock Frequency-Max (fCLK) | 133 MHz | |
| Data Retention Time-Min | 20 | |
| Endurance | 100000 Write/Erase Cycles | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 5.28 mm | |
| Memory Density | 33554432 bit | |
| Memory IC Type | FLASH | |
| Memory Width | 8 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Number of Words | 4194304 words | |
| Number of Words Code | 4000000 | |
| Operating Mode | SYNCHRONOUS | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Organization | 4MX8 | |
| Output Characteristics | 3-STATE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Parallel/Serial | SERIAL | |
| Programming Voltage | 3 V | |
| Seated Height-Max | 2.16 mm | |
| Serial Bus Type | SPI | |
| Standby Current-Max | 0.00005 A | |
| Supply Current-Max | 0.017 mA | |
| Supply Voltage-Max (Vsup) | 3.6 V | |
| Supply Voltage-Min (Vsup) | 2.65 V | |
| Supply Voltage-Nom (Vsup) | 3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | TIN | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Type | NOR TYPE | |
| Width | 5.23 mm | |
| Write Protection | HARDWARE/SOFTWARE |
Alternate Parts for MX25L3233FM2I-08G
This table gives cross-reference parts and alternative options found for MX25L3233FM2I-08G. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MX25L3233FM2I-08G, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| M25PX32SOVMW6F | Numonyx Memory Solutions | Check for Price | Flash, 4KX8, PDSO8, 0.208 INCH, ROHS COMPLIANT, PLASTIC, SOP-8 | MX25L3233FM2I-08G vs M25PX32SOVMW6F |
| W25Q32BVSSIGT | Winbond Electronics Corp | Check for Price | Flash, 32MX1, PDSO8, 0.208 INCH, GREEN, PLASTIC, SOIC-8 | MX25L3233FM2I-08G vs W25Q32BVSSIGT |
| S25FL032P0XMFI013 | Spansion | Check for Price | Flash, 4KX16, PDSO8, 0.208 INCH, LEAD FREE, PLASTIC, SOP-8 | MX25L3233FM2I-08G vs S25FL032P0XMFI013 |
| M25P32-VMN6TP/4 | Numonyx Memory Solutions | Check for Price | Flash, 4MX8, PDSO8, 0.150 INCH, ROHS COMPLIANT, PLASTIC, SOP-8 | MX25L3233FM2I-08G vs M25P32-VMN6TP/4 |
| SST26VF032-80-5C-QAF | Microchip Technology Inc | Check for Price | 32M X 1 FLASH 2.7V PROM, DSO8, 5 X 6 MM, ROHS COMPLIANT, WSON-8 | MX25L3233FM2I-08G vs SST26VF032-80-5C-QAF |
| M25P32-VMN6P/4 | Numonyx Memory Solutions | Check for Price | Flash, 4MX8, PDSO8, 0.150 INCH, ROHS COMPLIANT, PLASTIC, SOP-8 | MX25L3233FM2I-08G vs M25P32-VMN6P/4 |
| M25PX32-VMW6E | Micron Technology Inc | Check for Price | Flash, 4KX8, PDSO8, 0.208 INCH, ROHS COMPLIANT, PLASTIC, SOP-8 | MX25L3233FM2I-08G vs M25PX32-VMW6E |
| MX25L3205DM2I-12G | Macronix International Co Ltd | Check for Price | Flash, 16MX2, PDSO8, 0.200 INCH, ROHS COMPLIANT, SOP-8 | MX25L3233FM2I-08G vs MX25L3205DM2I-12G |
| SST26VF032-80-5I-S2AF | Microchip Technology Inc | Check for Price | 32M X 1 FLASH 2.7V PROM, PDSO8, 0.200 INCH, ROHS COMPLIANT, SOIC-8 | MX25L3233FM2I-08G vs SST26VF032-80-5I-S2AF |
| S25FL032P0XMFI010 | Spansion | Check for Price | Flash, 4KX16, PDSO8, 0.208 INCH, LEAD FREE, PLASTIC, SOP-8 | MX25L3233FM2I-08G vs S25FL032P0XMFI010 |
MX25L3233FM2I-08G Frequently Asked Questions (FAQ)
-
The MX25L3233FM2I-08G has a minimum of 100,000 erase cycles, but the actual number of cycles may vary depending on the usage and operating conditions.
-
The HOLD# signal should be kept low during read and write operations. If the HOLD# signal is asserted high, the device will enter a 'hold' state, and all operations will be suspended until the HOLD# signal is de-asserted.
-
The recommended power-up sequence is to apply VCC first, followed by VPP (if used), and then the clock signal. This ensures that the device is properly initialized and ready for operation.
-
The WP# signal should be tied high to enable write operations. If WP# is tied low, the device will be in a write-protected state, and all write operations will be ignored.
-
The maximum operating frequency for the MX25L3233FM2I-08G is 133 MHz, but the actual frequency may vary depending on the system design and operating conditions.
