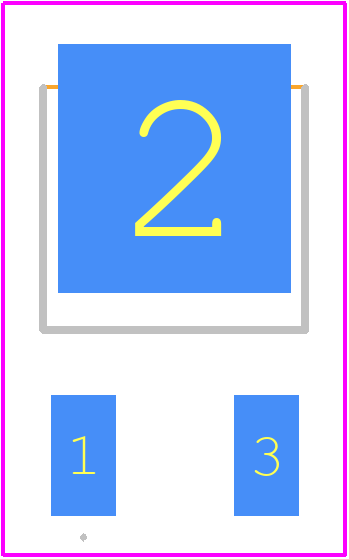

Footprint
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MSRD620CTRG by onsemi
Results Overview of MSRD620CTRG by onsemi
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
MSRD620CTRG Information
MSRD620CTRG by onsemi is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for MSRD620CTRG
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
MSRD620CTRG
|
Avnet Americas | Fast / Ultrafast Diode, 200 V, 6 A, Dual Common Anode, 1.3 V, 75 ns, 45 A - Rail/Tube (Alt: MSRD620CTRG) RoHS: Compliant Min Qty: 2174 Package Multiple: 1 Lead time: 0 Weeks, 2 Days Container: Tube | 0 |
|
$0.3285 / $0.3354 | Buy Now |
|
|
Rochester Electronics | MSRD620 - 200 V, 6.0 A Reverse Polarity Power Rectifier RoHS: Compliant Status: Obsolete Min Qty: 1 | 855 |
|
$0.2867 / $0.4624 | Buy Now |
|
DISTI #
MSRD620CTRG
|
Avnet Silica | Fast Ultrafast Diode 200 V 6 A Dual Common Anode 13 V 75 ns 45 A (Alt: MSRD620CTRG) RoHS: Compliant Min Qty: 75 Package Multiple: 75 Lead time: 143 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
MSRD620CTRG
|
EBV Elektronik | Fast Ultrafast Diode 200 V 6 A Dual Common Anode 13 V 75 ns 45 A (Alt: MSRD620CTRG) RoHS: Compliant Min Qty: 75 Package Multiple: 75 Lead time: 143 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
Flip Electronics | Stock, ship today | 3525 |
|
RFQ |
Part Details for MSRD620CTRG
MSRD620CTRG CAD Models
MSRD620CTRG Part Data Attributes
|
|
MSRD620CTRG
onsemi
Buy Now
Datasheet
|
Compare Parts:
MSRD620CTRG
onsemi
200 V, 6.0 A Reverse Polarity Power Rectifier, DPAK (SINGLE GAUGE) TO-252, 75-TUBE
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | DPAK (SINGLE GAUGE) TO-252 | |
| Pin Count | 3 | |
| Manufacturer Package Code | 369C | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.80 | |
| Factory Lead Time | 2 Days | |
| Samacsys Manufacturer | onsemi | |
| Additional Feature | FREE WHEELING DIODE | |
| Application | ULTRA FAST SOFT RECOVERY | |
| Case Connection | ANODE | |
| Configuration | COMMON ANODE, 2 ELEMENTS | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 0.95 V | |
| JESD-30 Code | R-PSSO-G2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Pk Forward Current-Max | 45 A | |
| Number of Elements | 2 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 175 °C | |
| Operating Temperature-Min | -65 °C | |
| Output Current-Max | 3 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 200 V | |
| Reverse Recovery Time-Max | 0.075 µs | |
| Surface Mount | YES | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | GULL WING | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
MSRD620CTRG Frequently Asked Questions (FAQ)
-
A good PCB layout for the MSRD620CTRG should include a solid ground plane, wide copper traces for power and ground, and a thermal relief pattern under the device. A minimum of 2oz copper thickness is recommended. Refer to onsemi's application note AND9093/D for more details.
-
To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal design and management practices. This includes providing adequate heat sinking, using thermal interface materials, and ensuring good airflow. The device should be operated within its specified temperature range, and derating may be necessary for high-temperature applications.
-
The recommended soldering conditions for the MSRD620CTRG are: peak temperature of 260°C, time above 217°C of 30 seconds, and a soldering time of 10 seconds. It's essential to follow the soldering profile recommended by onsemi to prevent damage to the device.
-
The MSRD620CTRG has built-in ESD protection, but it's still essential to follow proper ESD handling procedures during assembly and testing. This includes using ESD-safe materials, grounding personnel, and using ESD protection devices such as wrist straps and mats.
-
The high current rating of the MSRD620CTRG requires careful consideration of PCB design and layout. This includes using thick copper traces, wide bus bars, and multiple vias to ensure low impedance and minimal voltage drop. It's also essential to ensure that the PCB can handle the high current density and thermal demands of the device.
