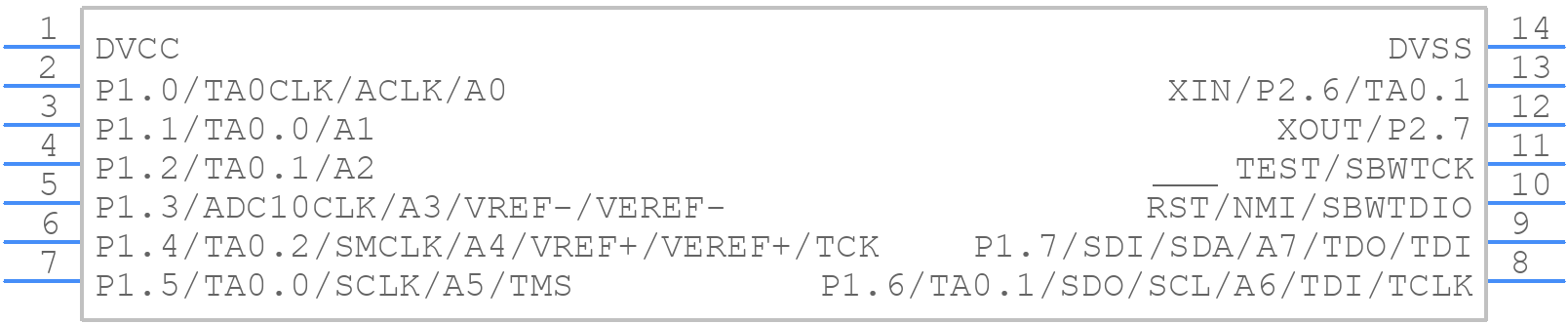

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MSP430G2132IPW14R by Texas Instruments
Results Overview of MSP430G2132IPW14R by Texas Instruments
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (8 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Security and Surveillance
Space Technology
Internet of Things (IoT)
Environmental Monitoring
Smart Cities
Transportation and Logistics
Agriculture Technology
Telecommunications
Communication and Networking
Automotive
Robotics and Drones
MSP430G2132IPW14R Information
MSP430G2132IPW14R by Texas Instruments is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| MSP430G2132IPW14R | Texas Instruments | MSP430G2x32, MSP430G2x02 Mixed Signal Microcontroller 14-TSSOP -40 to 85 |
Price & Stock for MSP430G2132IPW14R
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-MSP430G2132IPW14RCT-ND
|
DigiKey | IC MCU 16BIT 1KB FLASH 14TSSOP Min Qty: 1 Lead time: 18 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
2609 In Stock |
|
$0.5922 / $1.2800 | Buy Now |
|
DISTI #
595-SP430G2132IPW14R
|
Mouser Electronics | 16-bit Microcontrollers - MCU Mixed Signal Micro c ontroller A 595-MSP430G2132IPW14 RoHS: Compliant | 2658 |
|
$0.5730 / $1.2800 | Buy Now |
Part Details for MSP430G2132IPW14R
MSP430G2132IPW14R CAD Models
MSP430G2132IPW14R Part Data Attributes
|
|
MSP430G2132IPW14R
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
MSP430G2132IPW14R
Texas Instruments
16 MHz MCU with 1KB Flash, 128B SRAM, 10-bit ADC, SPI/I2C, timer 14-TSSOP -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | TSSOP | |
| Package Description | GREEN, PLASTIC, TSSOP-14 | |
| Pin Count | 14 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.31.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Has ADC | YES | |
| Additional Feature | ALSO OPERATES 1.8 V MINIMUM SUPPLY AT 6 MHZ AND 2.7 V MINIMUM SUPPLY AT 12 MHZ | |
| Address Bus Width | ||
| Bit Size | 16 | |
| Boundary Scan | YES | |
| CPU Family | MSP430 | |
| Clock Frequency-Max | 0.032 MHz | |
| DAC Channels | NO | |
| DMA Channels | YES | |
| External Data Bus Width | ||
| Format | FIXED POINT | |
| Integrated Cache | NO | |
| JESD-30 Code | R-PDSO-G14 | |
| JESD-609 Code | e4 | |
| Length | 5 mm | |
| Low Power Mode | YES | |
| Moisture Sensitivity Level | 1 | |
| Number of DMA Channels | 1 | |
| Number of I/O Lines | 16 | |
| Number of Serial I/Os | ||
| Number of Terminals | 14 | |
| Number of Timers | 4 | |
| On Chip Data RAM Width | 8 | |
| On Chip Program ROM Width | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | YES | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP14,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| RAM (bytes) | 128 | |
| RAM (words) | 0.125 | |
| ROM (words) | 1024 | |
| ROM Programmability | FLASH | |
| Seated Height-Max | 1.2 mm | |
| Speed | 16 MHz | |
| Supply Current-Max | 0.4 mA | |
| Supply Voltage-Max | 3.6 V | |
| Supply Voltage-Min | 2.2 V | |
| Supply Voltage-Nom | 2.2 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 4.4 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER, RISC |
Alternate Parts for MSP430G2132IPW14R
This table gives cross-reference parts and alternative options found for MSP430G2132IPW14R. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MSP430G2132IPW14R, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MSP430G2131IRSA16R | Texas Instruments | $0.5452 | 16 MHz MCU with 1KB Flash, 128B SRAM, 10-bit ADC, SPI/I2C, timer 16-QFN -40 to 85 | MSP430G2132IPW14R vs MSP430G2131IRSA16R |
| MSP430G2131IPW14R | Texas Instruments | $0.5650 | 16 MHz MCU with 1KB Flash, 128B SRAM, 10-bit ADC, SPI/I2C, timer 14-TSSOP -40 to 85 | MSP430G2132IPW14R vs MSP430G2131IPW14R |
| MSP430G2131IPW14 | Texas Instruments | $0.6341 | 16 MHz MCU with 1KB Flash, 128B SRAM, 10-bit ADC, SPI/I2C, timer 14-TSSOP -40 to 85 | MSP430G2132IPW14R vs MSP430G2131IPW14 |
| MSP430G2131IRSA16T | Texas Instruments | $0.6879 | 16 MHz MCU with 1KB Flash, 128B SRAM, 10-bit ADC, SPI/I2C, timer 16-QFN -40 to 85 | MSP430G2132IPW14R vs MSP430G2131IRSA16T |
| MSP430G2131IN14 | Texas Instruments | $0.8215 | 16 MHz MCU with 1KB Flash, 128B SRAM, 10-bit ADC, SPI/I2C, timer 14-PDIP -40 to 85 | MSP430G2132IPW14R vs MSP430G2131IN14 |
| MSP430G2132IPW14 | Texas Instruments | $1.1175 | 16 MHz MCU with 1KB Flash, 128B SRAM, 10-bit ADC, SPI/I2C, timer 14-TSSOP -40 to 85 | MSP430G2132IPW14R vs MSP430G2132IPW14 |
| MSP430G2131IRSA16 | Texas Instruments | Check for Price | 16-BIT, FLASH, RISC MICROCONTROLLER, PQCC16, GREEN, PLASTIC, QFN-16 | MSP430G2132IPW14R vs MSP430G2131IRSA16 |
| MSP430G2121IRSA16 | Texas Instruments | Check for Price | 16-BIT, FLASH, RISC MICROCONTROLLER, PQCC16, GREEN, PLASTIC, QFN-16 | MSP430G2132IPW14R vs MSP430G2121IRSA16 |
MSP430G2132IPW14R Frequently Asked Questions (FAQ)
-
The maximum clock frequency that can be used with the internal oscillator is 16 MHz, but it's recommended to use 12 MHz or lower for optimal performance and to ensure that the device operates within its specifications.
-
The GPIO pins can be configured as inputs or outputs by writing to the PxDIR (Direction) register. A '0' in the PxDIR register sets the pin as an input, while a '1' sets it as an output.
-
The RST/NMI pin is a dual-function pin that can be used as either a reset input or a non-maskable interrupt (NMI) input. To use it as a reset input, connect it to a reset source and ensure that the RST/NMI pin is not configured as an NMI input. To use it as an NMI input, configure the pin as an NMI input and connect it to an NMI source.
-
The watchdog timer (WDT) can be enabled by setting the WDTCTL (Watchdog Timer Control) register. The WDT interval can be set using the WDTPW (Watchdog Timer Password) and WDTSSEL (Watchdog Timer Clock Source Select) registers. The WDT can be reset by writing to the WDTCTL register or by using the watchdog timer reset signal.
-
The power consumption of the MSP430G2132 varies depending on the operating mode. In active mode, the typical current consumption is around 230 μA/MHz. In low-power mode 3 (LPM3), the typical current consumption is around 1.1 μA. In low-power mode 4 (LPM4), the typical current consumption is around 0.3 μA.
