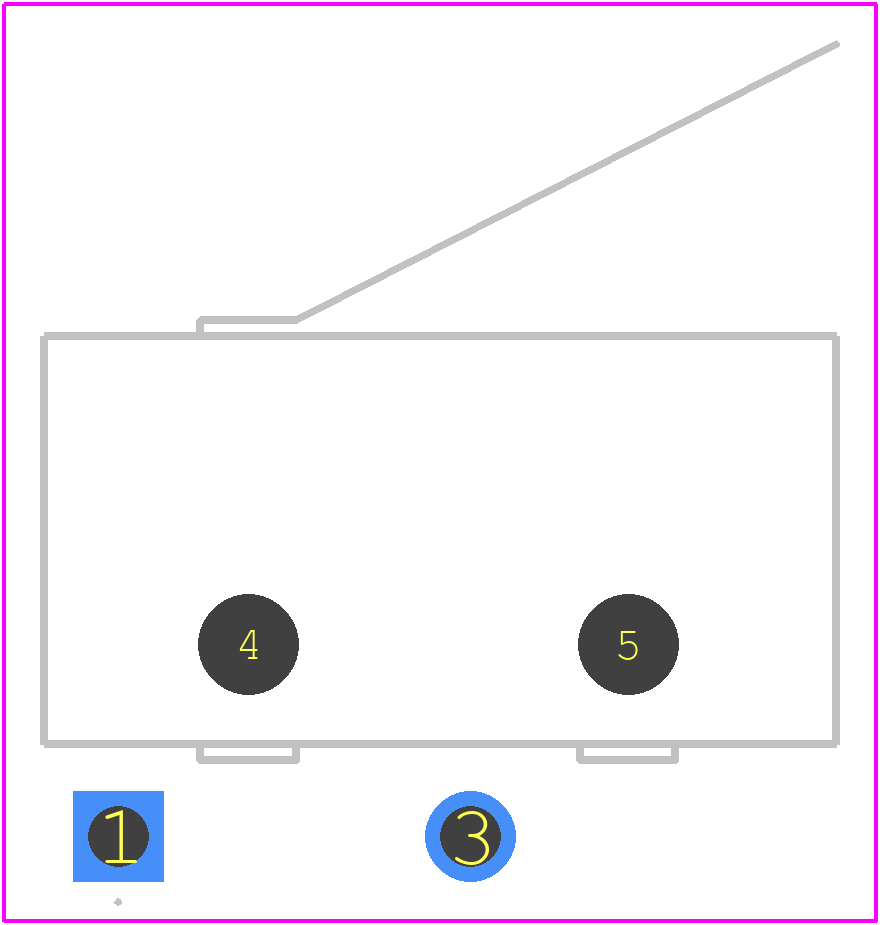

Footprint
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MS0850506F035V1C by E-Switch Inc
Results Overview of MS0850506F035V1C by E-Switch Inc
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
MS0850506F035V1C Information
MS0850506F035V1C by E-Switch Inc is a Snap Acting/Limit Switch.
Snap Acting/Limit Switches are under the broader part category of Switches.
Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.
Price & Stock for MS0850506F035V1C
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
15N8367
|
Newark | Ea Rohs Compliant: Yes |E-Switch MS0850506F035V1C RoHS: Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$0.9430 / $1.0900 | Buy Now |
|
DISTI #
612-MS0850506F035V1C
|
Mouser Electronics | Basic / Snap Action Switches 5A 125/250VAC SPSTNO Right Angle PCB Pin RoHS: Compliant | 76 |
|
$0.6760 / $1.2900 | Buy Now |
|
DISTI #
74851948
|
RS | Snap-Action Switch, SPST-NO, OFF-(ON), 5A, 125V AC , PC Pin, MS Series Min Qty: 1000 Package Multiple: 1 Lead time: 14 Weeks, 0 Days Container: Bulk | 0 |
|
$1.4200 | RFQ |
Part Details for MS0850506F035V1C
MS0850506F035V1C CAD Models
MS0850506F035V1C Part Data Attributes
|
|
MS0850506F035V1C
E-Switch Inc
Buy Now
Datasheet
|
Compare Parts:
MS0850506F035V1C
E-Switch Inc
Snap Acting/Limit Switch, SPST, 4 PCB Hole Cnt, Solder Terminal, Leaf Lever Actuator, Through Hole-right Angle
|
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | E-SWITCH INC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.50.70.00 | |
| Samacsys Manufacturer | E-Switch | |
| Actuator Length | 0.571 inch | |
| Actuator Type | LEAF LEVER | |
| Body Breadth | 6.4008 mm | |
| Body Height | 13.8938 mm | |
| Body Length or Diameter | 19.812 mm | |
| Center Contact Plating | SILVER | |
| Contact (AC) Max Rating R Load | 5A@250VAC | |
| Contact Current(AC)-Max | 5 A | |
| Contact Resistance | 0.1 mΩ | |
| Contact Timing | SNAP ACTION | |
| Contact Voltage(AC)-Max | 250 V | |
| Dielectric Withstand Volts | 1000VAC V | |
| Electrical Life | 50000 Cycle(s) | |
| End Contact Plating | SILVER | |
| Housing Material | POLYBUTYLENE TEREPHTHALATE | |
| Insulation Resistance | 100000000 Ω | |
| Mounting Feature | THROUGH HOLE-RIGHT ANGLE | |
| Operating Force-Max | 0.3419 N | |
| Operating Position | 0.547 inch | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -25 °C | |
| PCB Hole Count | 4 | |
| Surface Mount | NO | |
| Switch Function | SPST | |
| Switch Type | SNAP ACTING/LIMIT SWITCH | |
| Terminal Length | 0.134 inch | |
| Terminal Material | COPPER ALLOY | |
| Termination Type | SOLDER |
MS0850506F035V1C Frequently Asked Questions (FAQ)
-
The recommended soldering temperature is 250°C (482°F) with a maximum soldering time of 3 seconds. It's essential to follow the recommended soldering profile to prevent damage to the switch.
-
Yes, the switch is compatible with lead-free soldering. E-Switch Inc uses lead-free materials and processes to ensure RoHS compliance.
-
The expected lifespan of the switch is 10,000 to 20,000 cycles, depending on the operating conditions and usage. However, this can vary depending on the specific application and environmental factors.
-
Yes, the switch is designed to withstand moderate levels of vibration and shock. However, it's essential to consult with E-Switch Inc or a qualified engineer to determine the suitability of the switch for specific high-vibration or high-shock applications.
-
The switch is designed for general-purpose use and may not be suitable for harsh environments. However, E-Switch Inc offers customized or specialized switches for specific harsh environment applications. Consult with E-Switch Inc or a qualified engineer to determine the suitability of the switch for your specific application.
