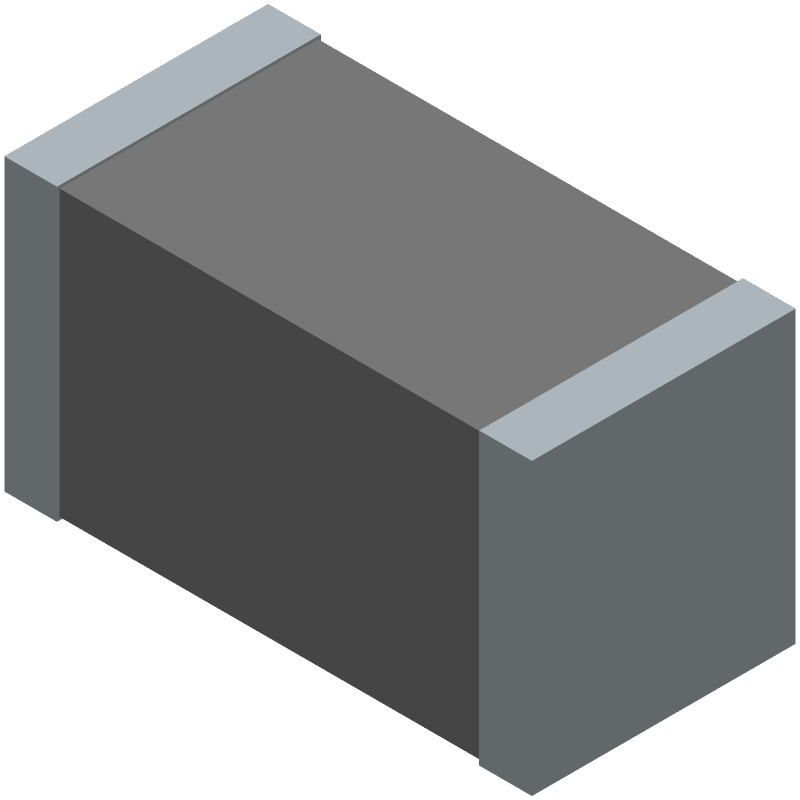

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MMZ1005S102CT000 by TDK Corporation
Results Overview of MMZ1005S102CT000 by TDK Corporation
- Distributor Offerings: (17 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (6 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Environmental Monitoring
Industrial Automation
MMZ1005S102CT000 Information
MMZ1005S102CT000 by TDK Corporation is a Data Line Filter.
Data Line Filters are under the broader part category of Filters.
A filter is an electronic circuit that selectively allows certain frequencies to pass while attenuating others. They are used to extract desired signals and remove noise. Read more about Filters on our Filters part category page.
Price & Stock for MMZ1005S102CT000
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
33P7569
|
Newark | Ferrite Bead, 0402, 0.2A, 0.75Ohm, Ferrite Bead Case/Package:0402 [1005 Metric], Impedance:1Kohm, Dc Current Rating:200Ma, Product Range:Mmz Series, Dc Resistance Max:0.75Ohm, Impedance Tolerance:± 25%, Product Length:1Mm Rohs Compliant: Yes |Tdk MMZ1005S102CT000 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 9245 |
|
$0.0110 | Buy Now |
|
DISTI #
445-2163-1-ND
|
DigiKey | FERRITE BEAD 1 KOHM 0402 1LN Min Qty: 1 Lead time: 10 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
54510 In Stock |
|
$0.0150 / $0.1000 | Buy Now |
|
DISTI #
MMZ1005S102CT000
|
Avnet Americas | Ferrite Bead, 0402 [1005 Metric], 1 kohm, 200 mA, MMZ Series, 0.75 ohm, ? 25% - Tape and Reel (Alt: MMZ1005S102CT000) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 10 Weeks, 0 Days Container: Reel | 0 |
|
$0.0129 / $0.0143 | Buy Now |
|
DISTI #
33P7569
|
Avnet Americas | Ferrite Bead, 0402 [1005 Metric], 1 kohm, 200 mA, MMZ Series, 0.75 ohm, ? 25% - Product that comes on tape, but is not reeled (Alt: 33P7569) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 16 Weeks, 4 Days Container: Ammo Pack | 0 |
|
$0.0290 / $0.0980 | Buy Now |
|
DISTI #
810-MMZ1005S102CT000
|
Mouser Electronics | Ferrite Beads 1000 OHM 25% 0.2A RoHS: Compliant | 156551 |
|
$0.0140 / $0.1000 | Buy Now |
|
DISTI #
E02:0323_04037788
|
Arrow Electronics | Ferrite Beads Multi-Layer 1KOhm 25% 100MHz 0.2A 0.75Ohm DCR 0402 T/R RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 14 Weeks Date Code: 2319 | Europe - 240000 |
|
$0.0103 | Buy Now |
|
DISTI #
V72:2272_06596137
|
Arrow Electronics | Ferrite Beads Multi-Layer 1KOhm 25% 100MHz 0.2A 0.75Ohm DCR 0402 T/R RoHS: Compliant Min Qty: 6494 Package Multiple: 1 Lead time: 10 Weeks Date Code: 1844 Container: Cut Strips | Americas - 10256 |
|
$0.0154 | Buy Now |
|
DISTI #
69090714
|
Verical | Ferrite Beads Multi-Layer 1KOhm 25% 100MHz 0.2A 0.75Ohm DCR 0402 T/R RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Date Code: 2319 | Americas - 240000 |
|
$0.0104 | Buy Now |
|
DISTI #
31647567
|
Verical | Ferrite Beads Multi-Layer 1KOhm 25% 100MHz 0.2A 0.75Ohm DCR 0402 T/R RoHS: Compliant Min Qty: 6494 Package Multiple: 1 Date Code: 1844 | Americas - 10256 |
|
$0.0154 | Buy Now |
|
DISTI #
87341156
|
Verical | Ferrite Beads Multi-Layer 1KOhm 25% 100MHz 0.2A 0.75Ohm DCR 0402 T/R RoHS: Compliant Min Qty: 3630 Package Multiple: 10 | Americas - 9860 |
|
$0.0193 | Buy Now |
Part Details for MMZ1005S102CT000
MMZ1005S102CT000 CAD Models
MMZ1005S102CT000 Part Data Attributes
|
|
MMZ1005S102CT000
TDK Corporation
Buy Now
Datasheet
|
Compare Parts:
MMZ1005S102CT000
TDK Corporation
Ferrite Chip, 1 Function(s), 0.2A,
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TDK CORP | |
| Package Description | EIA STD PACKAGE SIZE 0402, SMD, 2 PIN | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8504.50.80.00 | |
| Factory Lead Time | 16 Weeks, 4 Days | |
| Samacsys Manufacturer | TDK | |
| Case Code | 0402 | |
| Construction | Chip Bead | |
| DC Resistance-Max | 1 Ω | |
| Filter Type | FERRITE CHIP | |
| Height | 0.5 mm | |
| JESD-609 Code | e3 | |
| Length | 1 mm | |
| Mounting Type | SURFACE MOUNT | |
| Number of Functions | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Impedance | 1000 OHM Ω | |
| Packing Method | TR, 7 INCH | |
| Rated Current | 0.2 A | |
| Terminal Finish | Tin (Sn) - with Nickel (Ni) barrier | |
| Width | 0.5 mm |
Alternate Parts for MMZ1005S102CT000
This table gives cross-reference parts and alternative options found for MMZ1005S102CT000. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MMZ1005S102CT000, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| BLM15AG102SN1D | Murata Manufacturing Co Ltd | $0.0242 | Ferrite Chip, 1 Function(s), 0.3A, EIA STD PACKAGE SIZE 0402, 2 PIN | MMZ1005S102CT000 vs BLM15AG102SN1D |
