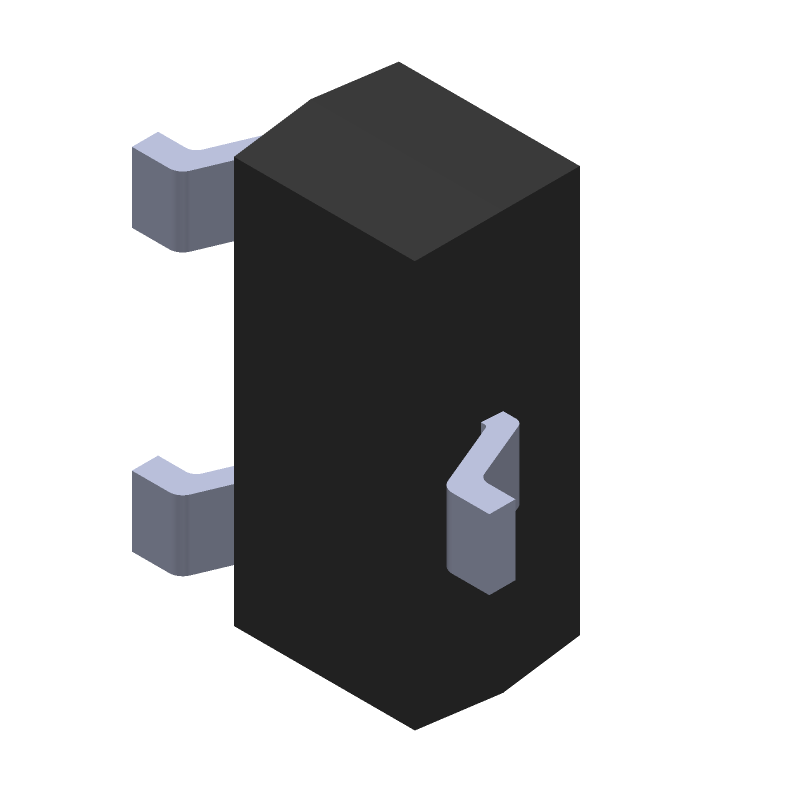

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MMBT7002K-AQ by Diotec Semiconductor AG
Results Overview of MMBT7002K-AQ by Diotec Semiconductor AG
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
MMBT7002K-AQ Information
MMBT7002K-AQ by Diotec Semiconductor AG is a Small Signal Field-Effect Transistor.
Small Signal Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for MMBT7002K-AQ
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
4878-MMBT7002K-AQCT-ND
|
DigiKey | MOSFET N-CH 60V 300MA SOT23-3 Min Qty: 1 Lead time: 2 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
1388 In Stock |
|
$0.0151 / $0.1000 | Buy Now |
|
DISTI #
637-MMBT7002K-AQ
|
Mouser Electronics | MOSFETs MOSFET, SOT-23, 60V, 0.3A, 150C, N, AEC-Q101 RoHS: Compliant | 6737 |
|
$0.0150 / $0.1000 | Buy Now |
|
|
Onlinecomponents.com | MOSFET - SOT-23 - 60V - 0.3A - N - 0.35W - AEC-Q101 RoHS: Compliant | 0 |
|
$0.0131 / $0.0194 | Buy Now |
|
DISTI #
MMBT7002K-AQ-DIO
|
TME | Transistor: N-MOSFET, unipolar, 60V, 0.3A, Idm: 0.8A, 0.35W, SOT23 Min Qty: 25 | 2325 |
|
$0.0144 / $0.0287 | Buy Now |
Part Details for MMBT7002K-AQ
MMBT7002K-AQ CAD Models
MMBT7002K-AQ Part Data Attributes
|
|
MMBT7002K-AQ
Diotec Semiconductor AG
Buy Now
Datasheet
|
Compare Parts:
MMBT7002K-AQ
Diotec Semiconductor AG
Small Signal Field-Effect Transistor,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | DIOTEC SEMICONDUCTOR AG | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| Date Of Intro | 2019-05-03 | |
| Samacsys Manufacturer | Diotec | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Peak Reflow Temperature (Cel) | 260 | |
| Terminal Finish | MATTE TIN | |
| Time@Peak Reflow Temperature-Max (s) | 10 |
MMBT7002K-AQ Frequently Asked Questions (FAQ)
-
The recommended operating temperature range for MMBT7002K-AQ is -55°C to 150°C, although the device can withstand storage temperatures up to 200°C.
-
To ensure reliability, it's essential to follow proper derating guidelines, use a suitable heat sink, and ensure good thermal conductivity between the device and the heat sink. Additionally, consider using a thermally conductive interface material and ensuring the device is operated within its specified power dissipation limits.
-
The maximum allowable power dissipation for MMBT7002K-AQ is 625 mW at an ambient temperature of 25°C. However, this value decreases as the ambient temperature increases, so be sure to consult the datasheet for derating information.
-
While MMBT7002K-AQ is primarily designed for linear applications, it can be used in switching applications with caution. However, the device's switching characteristics, such as transition times and switching losses, may not be optimized for high-frequency switching. Be sure to carefully evaluate the device's performance in your specific application.
-
To prevent electrostatic discharge (ESD) damage, handle MMBT7002K-AQ devices with proper ESD protection equipment, such as wrist straps, mats, and bags. Ensure that all equipment and personnel are properly grounded, and avoid touching the device's pins or leads.
