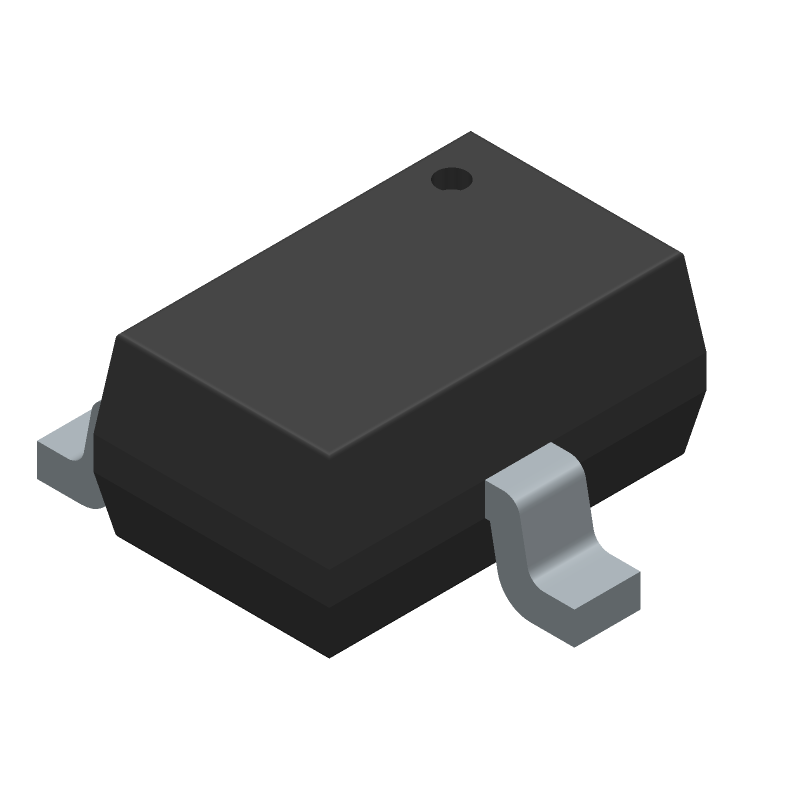

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MMBT2907AWT1G by onsemi
Results Overview of MMBT2907AWT1G by onsemi
- Distributor Offerings: (39 listings)
- Number of FFF Equivalents: (2 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
MMBT2907AWT1G Information
MMBT2907AWT1G by onsemi is a Small Signal Bipolar Transistor.
Small Signal Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for MMBT2907AWT1G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
84K8796
|
Newark | Bipolar Transistor, Transistor Polarity:Pnp, Collector Emitter Voltage Max:60V, Continuous Collector Current:600Ma, Power Dissipation:150Mw, Transistor Mounting:Surface Mount, No. Of Pins:3Pins, Transition Frequency:200Mhz Rohs Compliant: Yes |Onsemi MMBT2907AWT1G RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 4397 |
|
$0.0200 / $0.0210 | Buy Now |
|
DISTI #
94W9001
|
Newark | Transistor, Pnp, 60 V, 0.6 A, Sot-323-3, Transistor Polarity:Pnp, Collector Emitter Voltage Max:60V, Continuous Collector Current:600Ma, Power Dissipation:150Mw, Transistor Mounting:Surface Mount, No. Of Pins:3Pins, Product Range:- Rohs Compliant: Yes |Onsemi MMBT2907AWT1G RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 3000 |
|
$0.0140 | Buy Now |
|
DISTI #
MMBT2907AWT1GOSCT-ND
|
DigiKey | TRANS PNP 60V 0.6A SC70-3 Min Qty: 1 Lead time: 10 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
21328 In Stock |
|
$0.0157 / $0.1500 | Buy Now |
|
DISTI #
MMBT2907AWT1G
|
Avnet Americas | Single Bipolar Transistor, PNP, 60 V, 600 mA, 150 mW, SC-70 (SOT-323), 3 Pins, Surface Mount - Tape and Reel (Alt: MMBT2907AWT1G) RoHS: Compliant Min Qty: 50000 Package Multiple: 1 Lead time: 0 Weeks, 2 Days Container: Reel | 522000 Partner Stock |
|
$0.0134 / $0.0137 | Buy Now |
|
DISTI #
84K8796
|
Avnet Americas | Single Bipolar Transistor, PNP, 60 V, 600 mA, 150 mW, SC-70 (SOT-323), 3 Pins, Surface Mount - Product that comes on tape, but is not reeled (Alt: 84K8796) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 31 Weeks, 4 Days Container: Ammo Pack | 0 |
|
$0.0370 / $0.1060 | Buy Now |
|
DISTI #
863-MMBT2907AWT1G
|
Mouser Electronics | Bipolar Transistors - BJT 600mA 60V PNP RoHS: Compliant | 88894 |
|
$0.0160 / $0.1400 | Buy Now |
|
DISTI #
V36:1790_07323061
|
Arrow Electronics | Trans GP BJT PNP 60V 0.6A 150mW 3-Pin SC-70 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 10 Weeks Date Code: 2419 | Americas - 135000 |
|
$0.0140 / $0.0250 | Buy Now |
|
DISTI #
E02:0323_00077624
|
Arrow Electronics | Trans GP BJT PNP 60V 0.6A 150mW 3-Pin SC-70 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 10 Weeks Date Code: 2452 | Europe - 15000 |
|
$0.0150 / $0.0250 | Buy Now |
|
|
Future Electronics | MMBT Series 60 V 600 mA SMT PNP Silicon General Purpose Transistor - SOT-323 RoHS: Compliant pbFree: Yes Min Qty: 3000 Package Multiple: 3000 Lead time: 10 Weeks Container: Reel | 258000Reel |
|
$0.0146 / $0.0159 | Buy Now |
|
|
Future Electronics | MMBT Series 60 V 600 mA SMT PNP Silicon General Purpose Transistor - SOT-323 RoHS: Compliant pbFree: Yes Min Qty: 3000 Package Multiple: 3000 Lead time: 10 Weeks Container: Reel | 165000Reel |
|
$0.0146 / $0.0159 | Buy Now |
Part Details for MMBT2907AWT1G
MMBT2907AWT1G CAD Models
MMBT2907AWT1G Part Data Attributes
|
|
MMBT2907AWT1G
onsemi
Buy Now
Datasheet
|
Compare Parts:
MMBT2907AWT1G
onsemi
PNP Bipolar Transistor, SC-70 (SOT-323) 3 LEAD, 3000-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | SC-70 (SOT-323) 3 LEAD | |
| Package Description | HALOGEN FREE AND ROHS COMPLIANT, CASE 419-04, SC-70, 3 PIN | |
| Pin Count | 3 | |
| Manufacturer Package Code | 419-04 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.21.00.95 | |
| Factory Lead Time | 2 Days | |
| Samacsys Manufacturer | onsemi | |
| Collector Current-Max (IC) | 0.6 A | |
| Collector-Emitter Voltage-Max | 60 V | |
| Configuration | SINGLE | |
| DC Current Gain-Min (hFE) | 50 | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | PNP | |
| Power Dissipation-Max (Abs) | 0.15 W | |
| Qualification Status | Not Qualified | |
| Surface Mount | YES | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transistor Application | AMPLIFIER | |
| Transistor Element Material | SILICON | |
| Transition Frequency-Nom (fT) | 200 MHz | |
| Turn-off Time-Max (toff) | 100 ns | |
| Turn-on Time-Max (ton) | 45 ns |
Alternate Parts for MMBT2907AWT1G
This table gives cross-reference parts and alternative options found for MMBT2907AWT1G. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MMBT2907AWT1G, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MMBT2907AWT1 | LRC Leshan Radio Co Ltd | Check for Price | Small Signal Bipolar Transistor, 0.6A I(C), 60V V(BR)CEO, 1-Element, PNP, Silicon, 419-02, SC-70, 3 PIN | MMBT2907AWT1G vs MMBT2907AWT1 |
| MMBT2907AWT1G | Rochester Electronics LLC | Check for Price | Small Signal Bipolar Transistor, 0.6A I(C), 60V V(BR)CEO, 1-Element, PNP, Silicon, HALOGEN FREE AND ROHS COMPLIANT, CASE 419-04, SC-70, 3 PIN | MMBT2907AWT1G vs MMBT2907AWT1G |
MMBT2907AWT1G Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the MMBT2907AWT1G is -55°C to 150°C.
-
Yes, the MMBT2907AWT1G is suitable for high-frequency applications up to 1 GHz due to its low capacitance and high transition frequency (fT).
-
The recommended storage temperature range for the MMBT2907AWT1G is -55°C to 150°C.
-
Yes, the MMBT2907AWT1G can be used in switching applications due to its low saturation voltage and high current gain.
-
Yes, the MMBT2907AWT1G is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, and cadmium.
