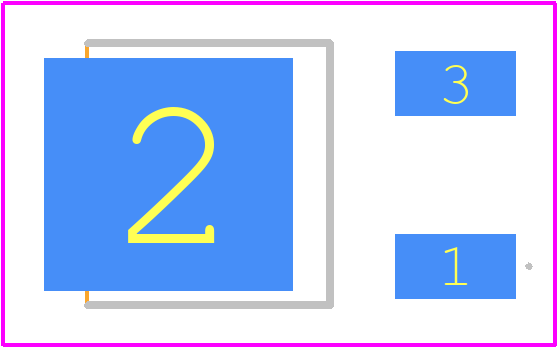

Footprint
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MJD31T4G by onsemi
Results Overview of MJD31T4G by onsemi
- Distributor Offerings: (21 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Energy and Power Systems
Renewable Energy
MJD31T4G Information
MJD31T4G by onsemi is a Power Bipolar Transistor.
Power Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for MJD31T4G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
09R9438
|
Newark | Bipolar Transistor, Npn, 40V, D-Pak, Transistor Polarity:Npn, Pnp, Collector Emitter Voltage Max:40V, Continuous Collector Current:3A, Power Dissipation:15W, Transistor Mounting:Surface Mount, No. Of Pins:3Pins, Qualification:- Rohs Compliant: Yes |Onsemi MJD31T4G RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 250 |
|
$0.0530 | Buy Now |
|
DISTI #
71J5849
|
Newark | Bipolar Transistor, Npn, 40V, D-Pak, Full Reel, Transistor Polarity:Npn, Collector Emitter Voltage Max:40V, Continuous Collector Current:3A, Power Dissipation:15W, Transistor Mounting:Surface Mount, No. Of Pins:3Pins, Product Range:-Rohs Compliant: Yes |Onsemi MJD31T4G RoHS: Compliant Min Qty: 2500 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.3380 / $0.4500 | Buy Now |
|
DISTI #
MJD31T4GOSCT-ND
|
DigiKey | TRANS NPN 40V 3A DPAK Min Qty: 1 Lead time: 12 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
3224 In Stock |
|
$0.3720 / $1.5600 | Buy Now |
|
DISTI #
09R9438
|
Avnet Americas | Bipolar (BJT) Single Transistor, NPN, 40 V, 3 A, 15 W, TO-252 (DPAK), Surface Mount - Product that comes on tape, but is not reeled (Alt: 09R9438) RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Lead time: 51 Weeks, 0 Days Container: Ammo Pack | 250 Partner Stock |
|
$0.4690 | Buy Now |
|
DISTI #
MJD31T4G
|
Avnet Americas | Bipolar (BJT) Single Transistor, NPN, 40 V, 3 A, 15 W, TO-252 (DPAK), Surface Mount - Tape and Reel (Alt: MJD31T4G) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 12 Weeks, 0 Days Container: Reel | 0 |
|
$0.2906 / $0.3353 | Buy Now |
|
DISTI #
863-MJD31T4G
|
Mouser Electronics | Bipolar Transistors - BJT 3A 40V 15W NPN RoHS: Compliant | 2316 |
|
$0.3480 / $1.0900 | Buy Now |
|
DISTI #
V79:2366_28988826
|
Arrow Electronics | Trans GP BJT NPN 40V 3A 1560mW 3-Pin(2+Tab) DPAK T/R Min Qty: 1 Package Multiple: 1 Date Code: 2243 | Americas - 4985 |
|
$0.2531 / $0.3989 | Buy Now |
|
DISTI #
V72:2272_07322542
|
Arrow Electronics | Trans GP BJT NPN 40V 3A 1560mW 3-Pin(2+Tab) DPAK T/R Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2349 Container: Cut Strips | Americas - 473 |
|
$0.4029 / $0.5900 | Buy Now |
|
DISTI #
70466684
|
RS | ON Semi MJD31T4G NPN Bipolar Transistor, 3 A, 40 V, 3-Pin DPAK Min Qty: 100 Package Multiple: 1 Container: Bulk | 0 |
|
$0.6300 / $0.7500 | RFQ |
|
|
Onlinecomponents.com | 3.0 A, 40 V NPN Bipolar Power Transistor RoHS: Compliant | 0 |
|
$0.3116 / $0.3396 | Buy Now |
Part Details for MJD31T4G
MJD31T4G CAD Models
MJD31T4G Part Data Attributes
|
|
MJD31T4G
onsemi
Buy Now
Datasheet
|
Compare Parts:
MJD31T4G
onsemi
3.0 A, 40 V NPN Bipolar Power Transistor, DPAK (SINGLE GAUGE) TO-252, 2500-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | DPAK (SINGLE GAUGE) TO-252 | |
| Package Description | DPAK-3 | |
| Pin Count | 3 | |
| Manufacturer Package Code | 369C | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.29.00.95 | |
| Factory Lead Time | 51 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Case Connection | COLLECTOR | |
| Collector Current-Max (IC) | 3 A | |
| Collector-Emitter Voltage-Max | 40 V | |
| Configuration | SINGLE | |
| DC Current Gain-Min (hFE) | 10 | |
| JESD-30 Code | R-PSSO-G2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | NPN | |
| Power Dissipation-Max (Abs) | 15 W | |
| Qualification Status | Not Qualified | |
| Surface Mount | YES | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | GULL WING | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transistor Application | AMPLIFIER | |
| Transistor Element Material | SILICON | |
| Transition Frequency-Nom (fT) | 3 MHz |
