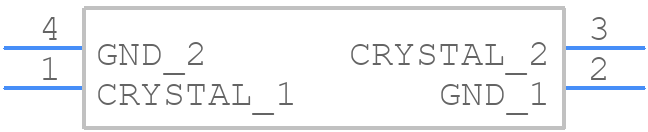

Part Symbol
-
Footprint
-

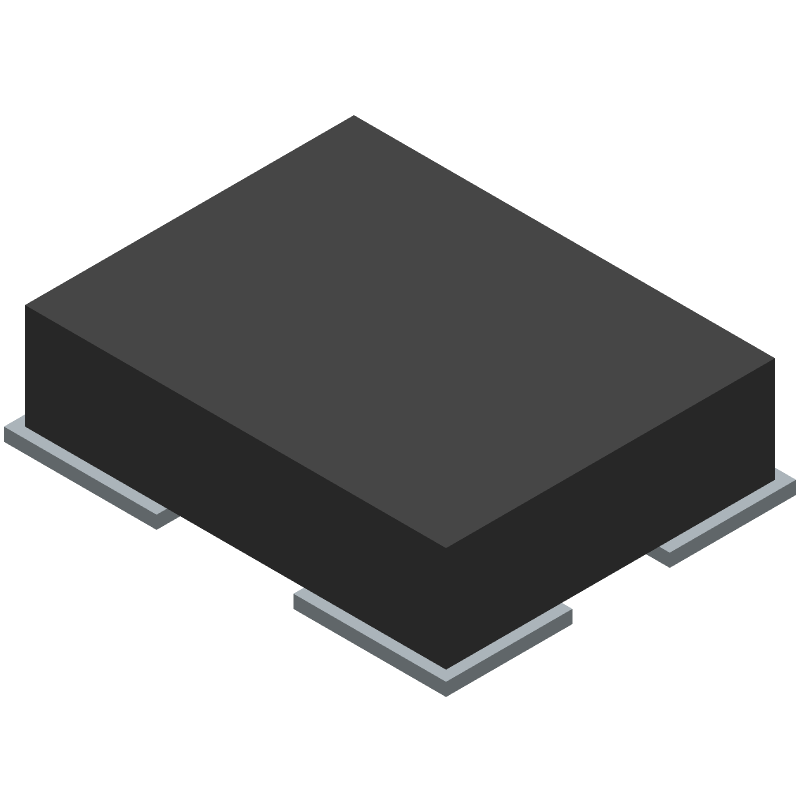

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MCSJK-7U-12.00-10-10-80-B-10 by SPC Multicomp
Results Overview of MCSJK-7U-12.00-10-10-80-B-10 by SPC Multicomp
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
MCSJK-7U-12.00-10-10-80-B-10 Information
MCSJK-7U-12.00-10-10-80-B-10 by SPC Multicomp is a Quartz Crystal.
Quartz Crystals are under the broader part category of Crystals/Resonators.
Crystals and resonators are key components in electronic circuits that provide precise frequency signals for applications like timing and data processing. Read more about Crystals/Resonators on our Crystals/Resonators part category page.
Price & Stock for MCSJK-7U-12.00-10-10-80-B-10
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
56AC8904
|
Newark | Crystal, 12Mhz, 10Pf, 3.2Mm X 2.5Mm Frequency Nom 12Mhz Crystal Case Smd Rohs Compliant: Yes |Multicomp Pro MCSJK-7U-12.00-10-10-80-B-10 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 399 |
|
$0.0370 | Buy Now |
Part Details for MCSJK-7U-12.00-10-10-80-B-10
MCSJK-7U-12.00-10-10-80-B-10 CAD Models
MCSJK-7U-12.00-10-10-80-B-10 Part Data Attributes
|
|
MCSJK-7U-12.00-10-10-80-B-10
SPC Multicomp
Buy Now
Datasheet
|
Compare Parts:
MCSJK-7U-12.00-10-10-80-B-10
SPC Multicomp
Parallel - Fundamental Quartz Crystal,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MULTICOMP PRO | |
| Package Description | SMD, 4 PIN | |
| Reach Compliance Code | unknown | |
| HTS Code | 8541.60.00.50 | |
| Samacsys Manufacturer | Multicomp Pro | |
| Aging | 3 PPM/YEAR | |
| Crystal/Resonator Type | PARALLEL - FUNDAMENTAL | |
| Drive Level | 100 µW | |
| Frequency Stability | 0.001% | |
| Frequency Tolerance | 10 ppm | |
| Load Capacitance | 10 pF | |
| Mounting Feature | SURFACE MOUNT | |
| Operating Frequency-Nom | 12 MHz | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | -20 °C | |
| Physical Dimension | 3.2mm x 2.5mm x 0.7mm | |
| Series Resistance | 80 Ω | |
| Surface Mount | YES |
MCSJK-7U-12.00-10-10-80-B-10 Frequently Asked Questions (FAQ)
-
The operating temperature range of the MCSJK-7U-12.00-10-10-80-B-10 is -40°C to +85°C.
-
Yes, the MCSJK-7U-12.00-10-10-80-B-10 is RoHS compliant, meaning it meets the European Union's Restriction of Hazardous Substances directive.
-
The MCSJK-7U-12.00-10-10-80-B-10 is typically used in wireless communication systems, such as cellular base stations, Wi-Fi routers, and satellite communication systems.
-
The MCSJK-7U-12.00-10-10-80-B-10 has a power handling capability of up to 80 watts.
-
Yes, the MCSJK-7U-12.00-10-10-80-B-10 is suitable for outdoor use, with a rugged design and environmental protection rating of IP67.
