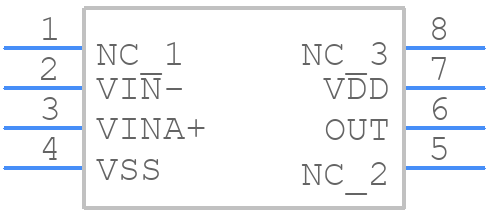

Part Symbol
-

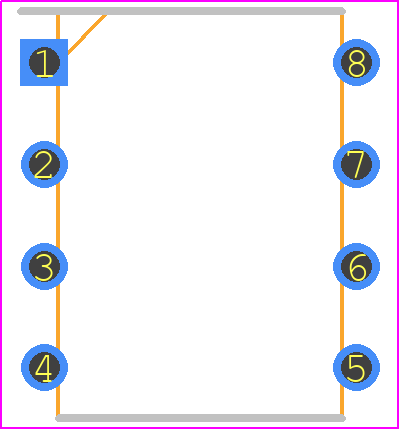

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MCP6541-E/P by Microchip Technology Inc
Results Overview of MCP6541-E/P by Microchip Technology Inc
- Distributor Offerings: (14 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
MCP6541-E/P Information
MCP6541-E/P by Microchip Technology Inc is a Comparator.
Comparators are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for MCP6541-E/P
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
71J5313
|
Newark | Comparator, 4Us, -40 To 125Deg C, Comparator Type:Low Power, No. Of Channels:1Channels, Response Time/Propogation Delay:4Μs, Supply Voltage Range:1.6V To 5.5V, Ic Case/Package:Dip, No. Of Pins:8Pins, Ic Mounting:Through Hole Rohs Compliant: Yes |Microchip MCP6541-E/P RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 1 |
|
$0.1250 | Buy Now |
|
DISTI #
MCP6541-E/P-ND
|
DigiKey | IC COMPARATOR 1 GEN PUR 8DIP Min Qty: 1 Lead time: 52 Weeks Container: Tube |
269 In Stock |
|
$0.4100 / $0.5400 | Buy Now |
|
DISTI #
71J5313
|
Avnet Americas | Comparator Single R-R I/O 5.5V 8-Pin PDIP Tube - Bulk (Alt: 71J5313) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 5 Weeks, 4 Days Container: Bulk | 1 Partner Stock |
|
$0.4260 | Buy Now |
|
DISTI #
MCP6541-E/P
|
Avnet Americas | Comparator Single R-R I/O 5.5V 8-Pin PDIP Tube - Rail/Tube (Alt: MCP6541-E/P) RoHS: Compliant Min Qty: 720 Package Multiple: 60 Lead time: 52 Weeks, 0 Days Container: Tube | 0 |
|
$0.4100 / $0.5400 | Buy Now |
|
DISTI #
579-MCP6541-E/P
|
Mouser Electronics | Analog Comparators Single 1.6V Push/ Pull Comp RoHS: Compliant | 682 |
|
$0.4100 / $0.5400 | Buy Now |
|
DISTI #
MCP6541-E/P
|
Microchip Technology Inc | Single 1.6V Push/Pull Comparator, E temp, PDIP, Projected EOL: 2034-03-03 COO: Thailand ECCN: EAR99 RoHS: Compliant Container: Tube |
50 Alternates Available |
|
$0.4000 / $0.5400 | Buy Now |
|
DISTI #
70046178
|
RS | Amplifier, Single 1.6V Push/Pull Comparator, E Temperature Min Qty: 900 Package Multiple: 1 Lead time: 52 Weeks, 0 Days Container: Bulk | 0 |
|
$0.4640 / $0.5450 | RFQ |
|
|
Onlinecomponents.com | Single Comparator - Push-Pull Output - 1.6V to 5.5V - 600nA/comparator - Rail to Rail Input - 8-lead PDIP - -40°C to +125°C RoHS: Compliant |
1260 In Stock 10560 Factory Stock |
|
$0.3508 / $0.4328 | Buy Now |
|
DISTI #
88748690
|
Verical | Comparator Single R-R I/O 5.5V Automotive AEC-Q100 8-Pin PDIP Tube RoHS: Compliant Min Qty: 120 Package Multiple: 60 Date Code: 2226 | Americas - 1260 |
|
$0.4772 / $0.5626 | Buy Now |
|
DISTI #
MCP6541-E/P
|
TME | IC: comparator, Cmp: 1, 4us, 1.6÷5.5V, THT, DIP8, tube, OUT: push-pull Min Qty: 1 | 0 |
|
$0.5550 / $0.8330 | RFQ |
Part Details for MCP6541-E/P
MCP6541-E/P CAD Models
MCP6541-E/P Part Data Attributes
|
|
MCP6541-E/P
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
MCP6541-E/P
Microchip Technology Inc
COMPARATOR, 7000 uV OFFSET-MAX, 4000 ns RESPONSE TIME, PDIP8, 0.300 INCH, LEAD FREE, PLASTIC, DIP-8
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICROCHIP TECHNOLOGY INC | |
| Part Package Code | DIP | |
| Pin Count | 8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Factory Lead Time | 5 Weeks, 4 Days | |
| Samacsys Manufacturer | Microchip | |
| Amplifier Type | COMPARATOR | |
| Average Bias Current-Max (IIB) | 0.005 µA | |
| Input Offset Voltage-Max | 7000 µV | |
| JESD-30 Code | R-PDIP-T8 | |
| JESD-609 Code | e3 | |
| Length | 9.271 mm | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Type | PUSH-PULL | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | DIP | |
| Package Equivalence Code | DIP8,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | IN-LINE | |
| Packing Method | TUBE | |
| Qualification Status | Not Qualified | |
| Response Time-Nom | 4000 ns | |
| Seated Height-Max | 5.334 mm | |
| Supply Current-Max | 0.001 mA | |
| Supply Voltage Limit-Max | 7 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | NO | |
| Technology | CMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | DUAL | |
| Width | 7.62 mm |
Alternate Parts for MCP6541-E/P
This table gives cross-reference parts and alternative options found for MCP6541-E/P. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MCP6541-E/P, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MCP6541-I/P | Microchip Technology Inc | $0.4380 | COMPARATOR, 7000 uV OFFSET-MAX, 4000 ns RESPONSE TIME, PDIP8, 0.300 INCH, PLASTIC, DIP-8 | MCP6541-E/P vs MCP6541-I/P |
MCP6541-E/P Frequently Asked Questions (FAQ)
-
To minimize noise and ensure reliable operation, it is recommended to follow good PCB layout practices, such as keeping the input traces short and away from noise sources, using a ground plane, and placing decoupling capacitors close to the power pins. Additionally, the output pin should be routed away from the input pins to prevent feedback.
-
The pull-up resistor value depends on the specific application and the load connected to the output pin. A general rule of thumb is to choose a value between 1 kΩ and 10 kΩ. A higher value reduces power consumption but increases the rise time, while a lower value increases power consumption but reduces the rise time.
-
The maximum allowed voltage on the input pins is the supply voltage (VDD) + 0.3V. To protect the input pins from overvoltage, it is recommended to use clamping diodes or voltage-limiting resistors in series with the input pins.
-
To ensure a clean and oscillation-free output, it is recommended to use a pull-up resistor on the output pin, and to add a small capacitor (e.g. 10 nF) between the output pin and ground to filter out high-frequency noise.
-
Yes, the MCP6541-E/P can be used as a voltage reference. The internal voltage reference is accurate to within ±1.5% of the nominal value (1.2V) over the operating temperature range.
