MCP4011-502E/SN by: Microchip Technology Inc

5K DIGITAL POTENTIOMETER, INCREMENT/DECREMENT CONTROL INTERFACE, 64 POSITIONS, PDSO8, 0.150 INCH, PLASTIC, MS-012, SOIC-8

Part Details for MCP4011-502E/SN by Microchip Technology Inc

Results Overview of MCP4011-502E/SN by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Industrial Automation

MCP4011-502E/SN Information

MCP4011-502E/SN by Microchip Technology Inc is a Digital Potentiometer.
Digital Potentiometers are under the broader part category of Converters.

A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.

Price & Stock for MCP4011-502E/SN

Part # Distributor Description Stock Price Buy
DISTI # 34M7453
Newark Digital Potentiometer, -40 To 125Deg C, End To End Resistance:5Kohm, No. Of Pots:Single, Control Interface:Up, Down, Track Taper:Linear, Resistance Tolerance:± 20%, Supply Voltage Min:2.7V, Supply Voltage Max:5.5V, No. Of Pins:8Pins Rohs Compliant: Yes |Microchip MCP4011-502E/SN RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 460
  • 1 $0.6800
  • 10 $0.6250
  • 25 $0.5700
  • 50 $0.5500
  • 100 $0.5300
$0.5300 / $0.6800 Buy Now
DISTI # MCP4011-502E/SN-ND
DigiKey IC DGTL POT 5KOHM 64TAP 8SOIC Min Qty: 1 Lead time: 8 Weeks Container: Tube 887
In Stock
  • 1 $0.6800
  • 25 $0.5700
  • 100 $0.5300
$0.5300 / $0.6800 Buy Now
DISTI # MCP4011-502E/SN
Avnet Americas Digital Potentiometer, Volatile, 5 kOhm, Single, 64 Steps, ? 150 ppm/?C, 1.8 V to 5.5 V, 8 Pins, NSOIC - Rail/Tube (Alt: MCP4011-502E/SN) RoHS: Compliant Min Qty: 600 Package Multiple: 100 Lead time: 8 Weeks, 0 Days Container: Tube 0
  • 1 $0.6800
  • 25 $0.5700
  • 100 $0.5300
$0.5300 / $0.6800 Buy Now
DISTI # 579-MCP4011-502E/SN
Mouser Electronics Digital Potentiometer ICs 5k U/Dsingle 6-bit V POT RoHS: Compliant 6101
  • 1 $0.6800
  • 25 $0.5700
  • 100 $0.5300
$0.5300 / $0.6800 Buy Now
DISTI # MCP4011-502E/SN
Microchip Technology Inc Low-cost volatile, Digital Potentiometer, SOIC, Projected EOL: 2034-12-08 COO: Thailand ECCN: EAR99 RoHS: Compliant Lead time: 8 Weeks, 0 Days Container: Tube 43

Alternates Available
  • 1 $0.6800
  • 25 $0.5700
  • 100 $0.5300
  • 1,000 $0.5000
  • 5,000 $0.4900
$0.4900 / $0.6800 Buy Now
DISTI # 70046150
RS MCP4011-502E/SN, Digi Potentiometer 5kOhm 64-Position Serial-2 Wire 8-Pin SOIC Min Qty: 700 Package Multiple: 1 Lead time: 6 Weeks, 0 Days Container: Bulk 0
  • 700 $0.6800
  • 7,000 $0.6500
  • 35,000 $0.6100
  • 70,000 $0.5800
$0.5800 / $0.6800 RFQ
Onlinecomponents.com Digital Potentiometer - 5kOhm - 64 Position - Volatile - Automotive - 8-Pin SOIC N - Tube RoHS: Compliant 2600 In Stock
  • 100 $0.5370
  • 300 $0.4931
  • 1,000 $0.4858
  • 2,500 $0.4615
  • 5,000 $0.4546
  • 7,500 $0.4444
  • 10,000 $0.4378
  • 15,000 $0.4312
$0.4312 / $0.5370 Buy Now
DISTI # 77929948
Verical Digital Potentiometer 5kOhm 64POS Volatile Linear Automotive AEC-Q100 8-Pin SOIC N Tube RoHS: Compliant Min Qty: 100 Package Multiple: 100 Date Code: 2305 Americas - 2600
  • 100 $0.6985
  • 300 $0.6410
  • 1,000 $0.6315
  • 2,500 $0.6000
  • 5,000 $0.5910
$0.5910 / $0.6985 Buy Now
DISTI # MCP4011-502E/SN
TME IC: digital potentiometer, 5kΩ, Up/Down Protocol, 6bit, SO8, SMD Min Qty: 1 0
  • 1 $0.8200
  • 5 $0.6930
  • 25 $0.5990
  • 100 $0.5590
$0.5590 / $0.8200 RFQ
DISTI # MCP4011-502E/SN
IBS Electronics DIGITAL POTENTIOMETER 5KOHM 64POS VOLATILE LINEAR AUTOMOTIVE 8-PIN SOIC N TUBE Min Qty: 100 Package Multiple: 1 2600
  • 100 $0.6981
  • 300 $0.6410
  • 1,000 $0.6315
  • 2,500 $0.5999
  • 5,000 $0.5910
  • 7,500 $0.5777
  • 10,000 $0.5691
  • 15,000 $0.5606
$0.5606 / $0.6981 Buy Now
NAC 5k, U/D single, 6-bit V, POT - Package: 8 SOIC 3.90mm(.150in) TUBE RoHS: Compliant Min Qty: 600 Package Multiple: 100 Container: Tube 0
  • 1 $0.6800
  • 100 $0.6100
  • 500 $0.5600
  • 1,000 $0.5500
$0.5500 / $0.6800 Buy Now
DISTI # MCP4011-502E/SN
Avnet Silica Digital Potentiometer Volatile 5 kOhm Single 64 Steps 150 ppmC 18 V to 55 V 8 Pins NSOIC (Alt: MCP4011-502E/SN) RoHS: Compliant Min Qty: 100 Package Multiple: 100 Lead time: 10 Weeks, 0 Days Silica - 0
Buy Now
DISTI # MCP4011-502E/SN
EBV Elektronik Digital Potentiometer Volatile 5 kOhm Single 64 Steps 150 ppmC 18 V to 55 V 8 Pins NSOIC (Alt: MCP4011-502E/SN) RoHS: Compliant Min Qty: 100 Package Multiple: 100 Lead time: 9 Weeks, 0 Days EBV - 0
Buy Now
LCSC 20% 1.8V5.5V 5k SOIC-8-150mil Digital Potentiometers ROHS 4
  • 1 $1.1200
  • 10 $1.0973
  • 30 $1.0837
  • 100 $0.9736
$0.9736 / $1.1200 Buy Now
Master Electronics Digital Potentiometer - 5kOhm - 64 Position - Volatile - Automotive - 8-Pin SOIC N - Tube RoHS: Compliant 2600 In Stock
  • 100 $0.5370
  • 300 $0.4931
  • 1,000 $0.4858
  • 2,500 $0.4615
  • 5,000 $0.4546
  • 7,500 $0.4444
  • 10,000 $0.4378
  • 15,000 $0.4312
$0.4312 / $0.5370 Buy Now

Part Details for MCP4011-502E/SN

MCP4011-502E/SN CAD Models

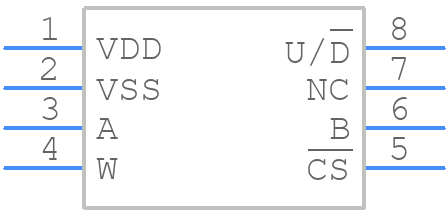

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MCP4011-502E/SN Part Data Attributes

Parametric Data
MCP4011-502E/SN Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
MCP4011-502E/SN Microchip Technology Inc 5K DIGITAL POTENTIOMETER, INCREMENT/DECREMENT CONTROL INTERFACE, 64 POSITIONS, PDSO8, 0.150 INCH, PLASTIC, MS-012, SOIC-8
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Part Package Code SOIC
Pin Count 8
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Factory Lead Time 8 Weeks
Samacsys Manufacturer Microchip
Bandwidth-Nom 2 kHz
Control Interface INCREMENT/DECREMENT
Converter Type DIGITAL POTENTIOMETER
JESD-30 Code R-PDSO-G8
JESD-609 Code e3
Length 4.9 mm
Moisture Sensitivity Level 1
Number of Functions 1
Number of Positions 64
Number of Terminals 8
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP8,.23
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Resistance Law LINEAR
Resistance Tolerance-Max 20%
Resistor Terminal Voltage-Max 5 V
Resistor Terminal Voltage-Min
Screening Level TS 16949
Seated Height-Max 1.75 mm
Supply Current-Max 0.45 mA
Supply Voltage-Nom 5 V
Surface Mount YES
Technology CMOS
Temperature Coefficient-Nom 150 ppm/°C
Temperature Grade AUTOMOTIVE
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Total Resistance-Nom 5000 Ω
Width 3.9 mm
