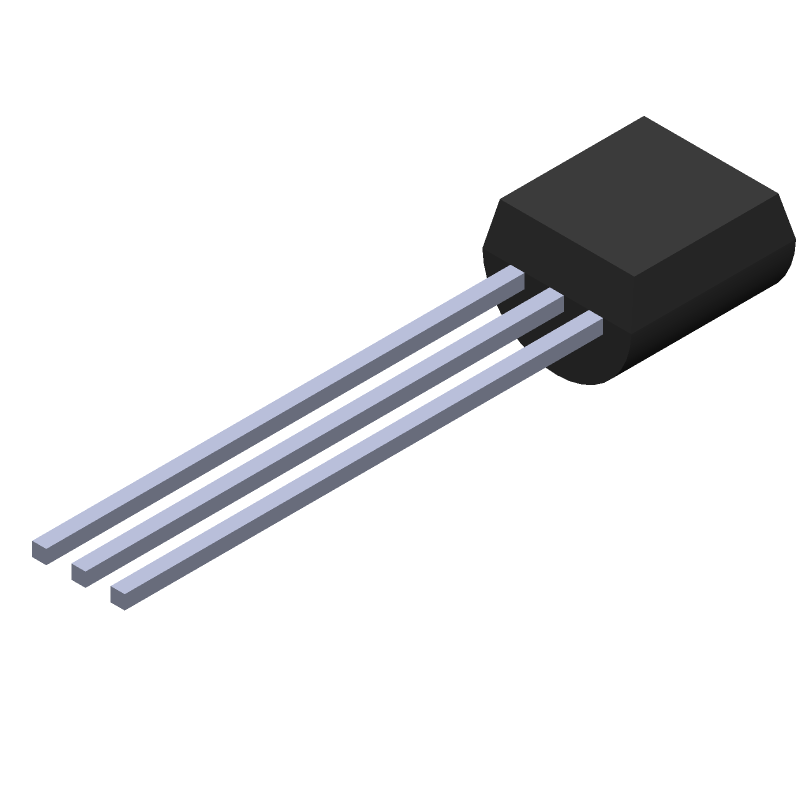

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MCP130-315DI/TO by Microchip Technology Inc
Results Overview of MCP130-315DI/TO by Microchip Technology Inc
- Distributor Offerings: (12 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Automotive
MCP130-315DI/TO Information
MCP130-315DI/TO by Microchip Technology Inc is a Power Management Circuit.
Power Management Circuits are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for MCP130-315DI/TO
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
19C7167
|
Newark | Microcontroller Mcu Voltage Supervisor 45 Ua 5.5V To92-3, Reset Threshold Voltage ? Min:-, Reset Threshold Voltage ? Max:-, Reset Threshold Voltage - Nom:3.075V, No. Of Monitored Voltages:1Monitors, Supply Voltage Min:1V, Msl:- Rohs Compliant: Yes |Microchip MCP130-315DI/TO RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 16 |
|
$0.0850 | Buy Now |
|
DISTI #
MCP130-315DI/TO-ND
|
DigiKey | IC SUPERVISOR 1 CHANNEL TO92-3 Min Qty: 1 Lead time: 7 Weeks Container: Bag |
1245 In Stock |
|
$0.4900 / $0.6400 | Buy Now |
|
DISTI #
19C7167
|
Avnet Americas | Processor Supervisor 3.075V 3V/3.3V/5V 3-Pin TO-92 Bag - Bulk (Alt: 19C7167) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 7 Weeks, 1 Days Container: Bulk | 16 Partner Stock |
|
$0.5100 | Buy Now |
|
DISTI #
MCP130-315DI/TO
|
Avnet Americas | Processor Supervisor 3.075V 3V/3.3V/5V 3-Pin TO-92 Bag - Bag (Alt: MCP130-315DI/TO) RoHS: Compliant Min Qty: 3000 Package Multiple: 1000 Lead time: 7 Weeks, 0 Days Container: Bag | 0 |
|
$0.1984 / $0.2332 | Buy Now |
|
DISTI #
579-MCP130-315DI/TO
|
Mouser Electronics | Supervisory Circuits w/5K Pull-Up Low RoHS: Compliant | 2014 |
|
$0.4900 / $0.6400 | Buy Now |
|
DISTI #
MCP130-315DI/TO
|
Microchip Technology Inc | Supervisor w/5K Pull-Up Active Low, TO-92, Projected EOL: 2034-05-16 COO: Philippines ECCN: EAR99 RoHS: Compliant Lead time: 7 Weeks, 0 Days Container: Bag |
17000 Alternates Available |
|
$0.3700 / $0.6400 | Buy Now |
|
DISTI #
70414949
|
RS | Microchip MCP130-315DI/TO, Voltage Supervisor 3 - 3.15 V, 3-Pin TO-92 Min Qty: 2000 Package Multiple: 1 Lead time: 52 Weeks, 0 Days Container: Bulk | 0 |
|
$0.5200 / $0.6100 | RFQ |
|
|
Onlinecomponents.com | Processor Supervisor 3.075V 1 Active Low/Open Drain Automotive 3-Pin TO-92 Bag RoHS: Compliant | 17000 Factory Stock |
|
$0.2903 / $0.3582 | Buy Now |
|
|
NAC | Supervisor w/5K Pull-Up Active Low - Package: 3 TO-92 BAG RoHS: Compliant Min Qty: 2000 Package Multiple: 1000 Container: Bag | 0 |
|
$0.3000 / $0.3700 | Buy Now |
|
DISTI #
MCP130-315DI/TO
|
Avnet Silica | Processor Supervisor 3075V 3V33V5V 3Pin TO92 Bag (Alt: MCP130-315DI/TO) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 9 Weeks, 0 Days | Silica - 0 |
|
Buy Now |
Part Details for MCP130-315DI/TO
MCP130-315DI/TO CAD Models
MCP130-315DI/TO Part Data Attributes
|
|
MCP130-315DI/TO
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
MCP130-315DI/TO
Microchip Technology Inc
1-CHANNEL POWER SUPPLY SUPPORT CKT, PBCY3, PLASTIC, TO-92, 3 PIN
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICROCHIP TECHNOLOGY INC | |
| Part Package Code | TO-92 | |
| Package Description | PLASTIC, TO-92, 3 PIN | |
| Pin Count | 3 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 7 Weeks, 1 Day | |
| Samacsys Manufacturer | Microchip | |
| Additional Feature | MNL RST:N;PW FL IO:N;PRG RST DLY:N;WD:N;WDO:N;WWD:N | |
| Adjustable Threshold | NO | |
| Analog IC - Other Type | VOLTAGE SUPERVISOR/RESET IC | |
| JESD-30 Code | O-PBCY-T3 | |
| JESD-609 Code | e3 | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TO-92 | |
| Package Equivalence Code | SIP3,.1,50 | |
| Package Shape | ROUND | |
| Package Style | CYLINDRICAL | |
| Qualification Status | Not Qualified | |
| Supply Current-Max (Isup) | 0.06 mA | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 1 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | NO | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | BOTTOM | |
| Threshold Voltage-Nom | +3.08V |
