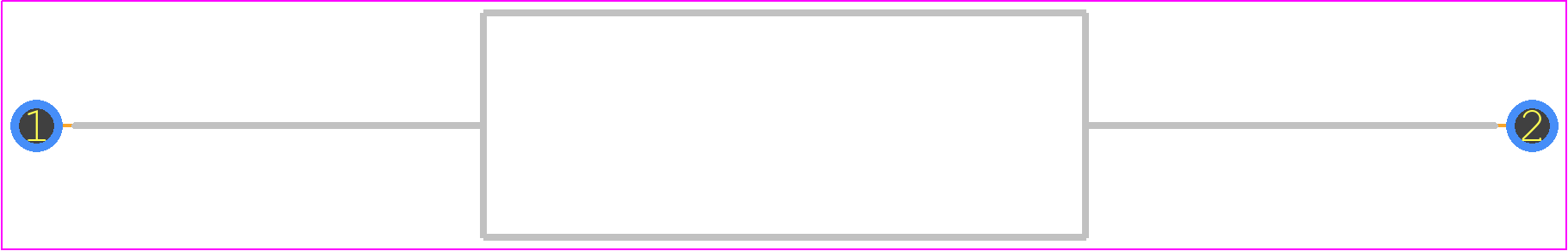

Part Symbol
-
Footprint
-

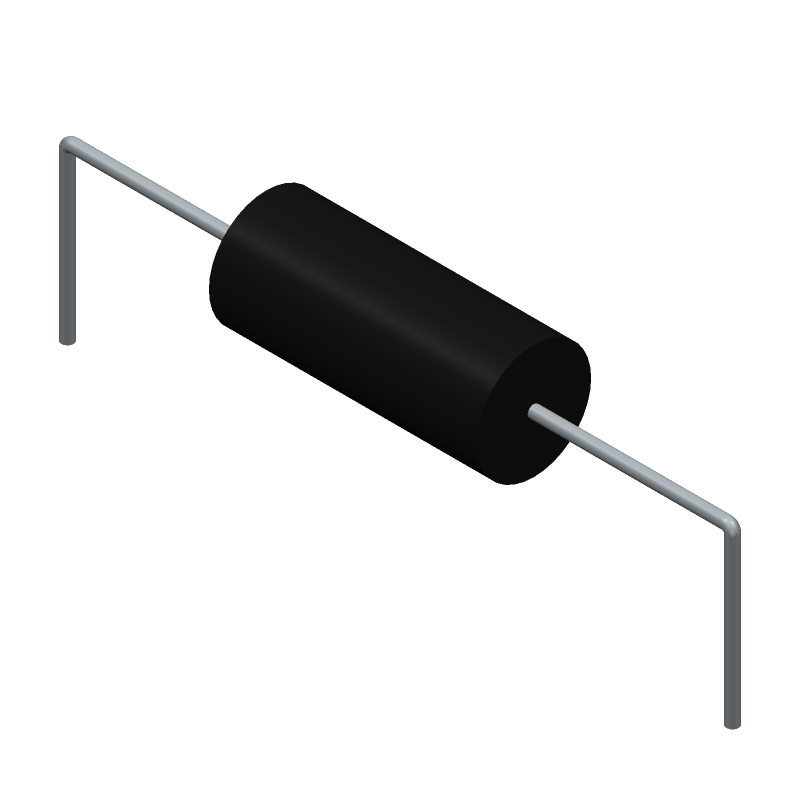

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MCKNP05SJ010KAA9 by SPC Multicomp
Results Overview of MCKNP05SJ010KAA9 by SPC Multicomp
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
MCKNP05SJ010KAA9 Information
MCKNP05SJ010KAA9 by SPC Multicomp is a Wire Wound Resistor.
Wire Wound Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for MCKNP05SJ010KAA9
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
55T6710
|
Newark | Res, 0R1, 5W, Axial, Wirewound, Resistance:0.1Ohm, Product Range:Mcknp Series, Power Rating:5W, Resistance Tolerance:± 5%, Resistor Case/Package:Axial Leaded, Voltage Rating:-, Resistor Technology:Wirewound, Product Diameter:6.5Mm Rohs Compliant: Yes |Multicomp Pro MCKNP05SJ010KAA9 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 236 |
|
$0.0930 | Buy Now |
Part Details for MCKNP05SJ010KAA9
MCKNP05SJ010KAA9 CAD Models
MCKNP05SJ010KAA9 Part Data Attributes
|
|
MCKNP05SJ010KAA9
SPC Multicomp
Buy Now
Datasheet
|
Compare Parts:
MCKNP05SJ010KAA9
SPC Multicomp
Fixed Resistor, Wire Wound, 5W, 0.1ohm, 5% +/-Tol, 400ppm/Cel, Through Hole Mount, AXIAL LEADED
|
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MULTICOMP PRO | |
| Package Description | AXIAL LEADED | |
| Reach Compliance Code | unknown | |
| Samacsys Manufacturer | Multicomp Pro | |
| Additional Feature | FLAME PROOF | |
| Construction | Tubular | |
| Lead Diameter | 0.75 mm | |
| Lead Length | 28 mm | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 275 °C | |
| Package Diameter | 6.5 mm | |
| Package Length | 17.5 mm | |
| Package Style | Axial | |
| Packing Method | AMMO PACK | |
| Rated Power Dissipation (P) | 5 W | |
| Rated Temperature | 70 °C | |
| Resistance | 0.1 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Surface Mount | NO | |
| Technology | WIRE WOUND | |
| Temperature Coefficient | 400 ppm/°C | |
| Terminal Shape | WIRE | |
| Tolerance | 5% |
MCKNP05SJ010KAA9 Frequently Asked Questions (FAQ)
-
The operating temperature range of MCKNP05SJ010KAA9 is -40°C to 125°C.
-
Yes, MCKNP05SJ010KAA9 is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the EU's standards for reducing hazardous substances in electronic components.
-
The MSL of MCKNP05SJ010KAA9 is MSL 3, which means it can withstand up to 168 hours of exposure to moisture before soldering.
-
Yes, MCKNP05SJ010KAA9 is suitable for high-reliability applications, such as aerospace, defense, and medical devices, due to its high-quality materials and manufacturing process.
-
It is recommended to store MCKNP05SJ010KAA9 in a dry, cool place with a temperature range of 5°C to 30°C and humidity below 60%.
