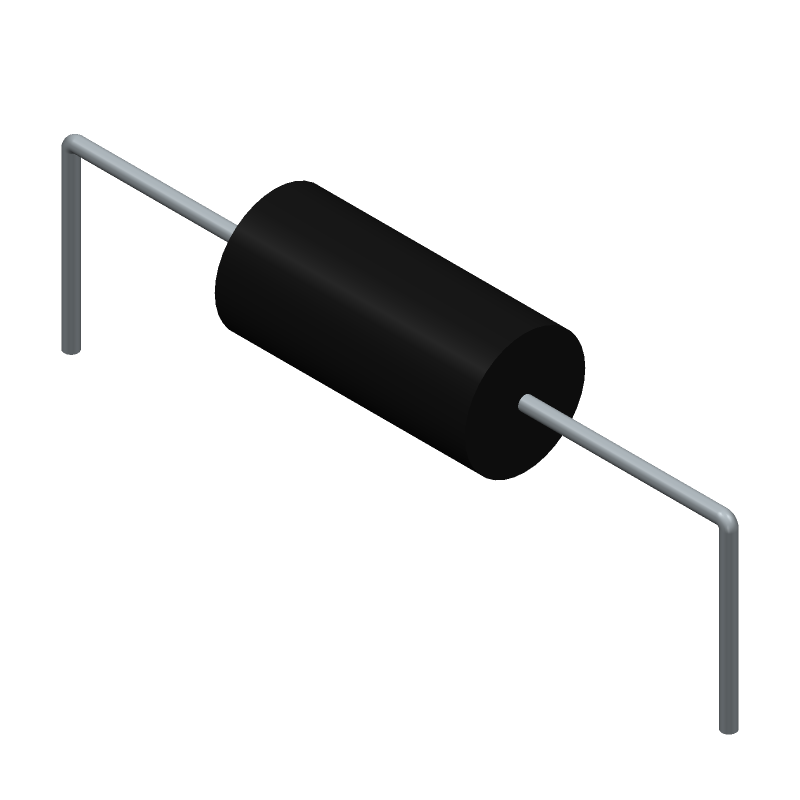

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MCKNP03UJ0501B00 by SPC Multicomp
Results Overview of MCKNP03UJ0501B00 by SPC Multicomp
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
MCKNP03UJ0501B00 Information
MCKNP03UJ0501B00 by SPC Multicomp is a Wire Wound Resistor.
Wire Wound Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for MCKNP03UJ0501B00
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
55T6689
|
Newark | Through Hole Wirewound Resistor, Mcknp Series, 500 Ohm, 3 W, - 5%, 500 V, Axial Leaded Rohs Compliant: Yes |Multicomp Pro MCKNP03UJ0501B00 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 981 |
|
$0.0330 | Buy Now |
|
DISTI #
97M9505
|
Newark | Wirewound Resistor, 500 Ohm, 3W, 5%, Resistance:500Ohm, Product Range:Mcknp Series, Power Rating:3W, Resistance Tolerance:± 5%, Resistor Case/Package:Axial Leaded, Voltage Rating:500V, Resistor Technology:Wirewound, Product Width:-Rohs Compliant: Yes |Multicomp Pro MCKNP03UJ0501B00 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 730 |
|
$0.1490 | Buy Now |
Part Details for MCKNP03UJ0501B00
MCKNP03UJ0501B00 CAD Models
MCKNP03UJ0501B00 Part Data Attributes
|
|
MCKNP03UJ0501B00
SPC Multicomp
Buy Now
Datasheet
|
Compare Parts:
MCKNP03UJ0501B00
SPC Multicomp
Fixed Resistor, Wire Wound, 3W, 500ohm, 5% +/-Tol, 300ppm/Cel, Through Hole Mount, AXIAL LEADED
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MULTICOMP PRO | |
| Package Description | AXIAL LEADED | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.21.00.80 | |
| Samacsys Manufacturer | Multicomp Pro | |
| Additional Feature | FLAME PROOF | |
| Construction | Tubular | |
| JESD-609 Code | e3 | |
| Lead Diameter | 0.7 mm | |
| Lead Length | 28 mm | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 275 °C | |
| Package Diameter | 5.5 mm | |
| Package Length | 13.5 mm | |
| Package Shape | TUBULAR PACKAGE | |
| Package Style | Axial | |
| Packing Method | BULK | |
| Rated Power Dissipation (P) | 3 W | |
| Rated Temperature | 70 °C | |
| Resistance | 500 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Surface Mount | NO | |
| Technology | WIRE WOUND | |
| Temperature Coefficient | 300 ppm/°C | |
| Terminal Finish | Tin (Sn) | |
| Terminal Shape | WIRE | |
| Tolerance | 5% |
MCKNP03UJ0501B00 Frequently Asked Questions (FAQ)
-
The operating temperature range of the MCKNP03UJ0501B00 is -55°C to 125°C.
-
Yes, the MCKNP03UJ0501B00 capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the EU's standards for reducing hazardous substances in electronic components.
-
The recommended soldering temperature for the MCKNP03UJ0501B00 is 260°C for 10 seconds or less.
-
Yes, the MCKNP03UJ0501B00 is designed to withstand high-vibration environments, making it suitable for use in applications such as automotive, aerospace, and industrial control systems.
-
The ESR of the MCKNP03UJ0501B00 is typically around 10-20 milliohms, depending on the frequency of operation.
