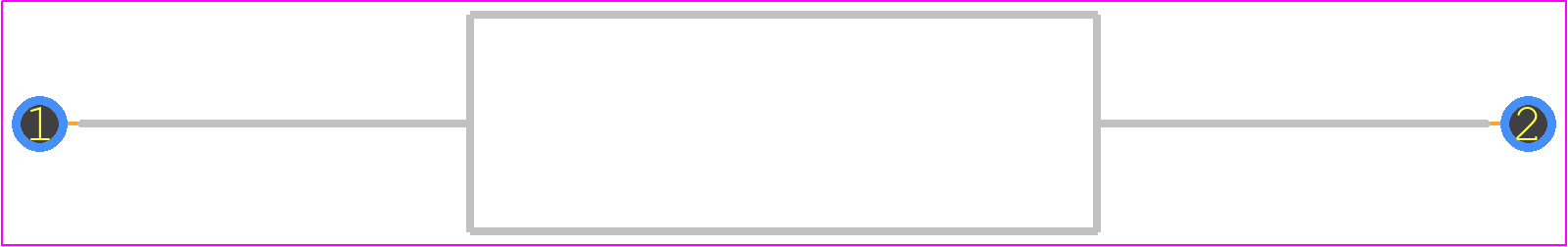

Footprint
-

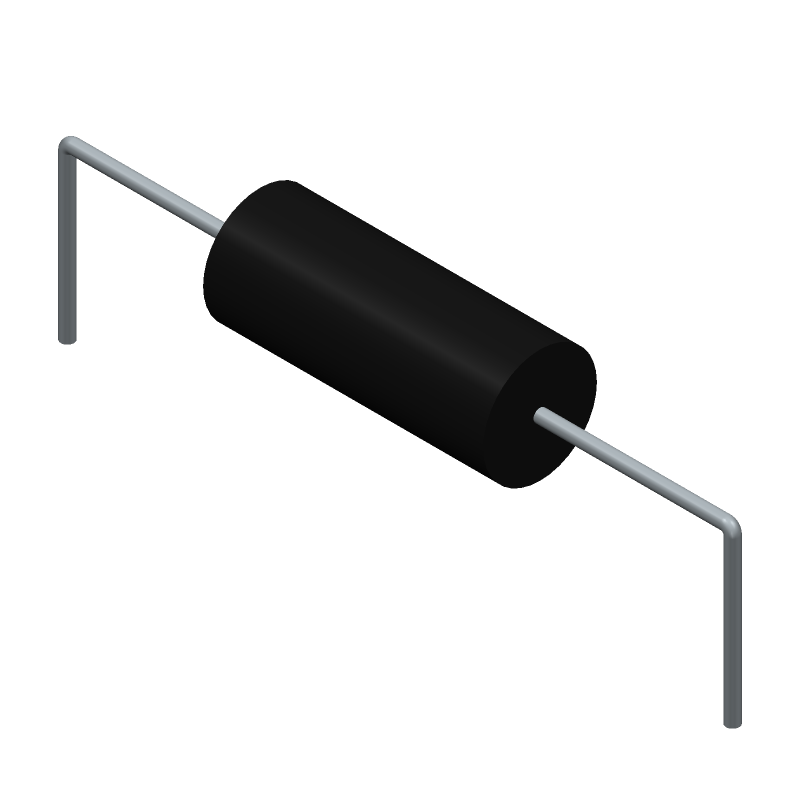

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MCKNP02SJ022KA10 by SPC Multicomp
Results Overview of MCKNP02SJ022KA10 by SPC Multicomp
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
MCKNP02SJ022KA10 Information
MCKNP02SJ022KA10 by SPC Multicomp is a Wire Wound Resistor.
Wire Wound Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for MCKNP02SJ022KA10
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
55T6589
|
Newark | Res, 0R22, 2W, Axial, Wirewound, Resistance:0.22Ohm, Product Range:Mcknp Series, Power Rating:2W, Resistance Tolerance:± 5%, Resistor Case/Package:Axial Leaded, Voltage Rating:-, Resistor Technology:Wirewound, Product Diameter:5Mm Rohs Compliant: Yes |Multicomp Pro MCKNP02SJ022KA10 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 7887 |
|
$0.0330 | Buy Now |
Part Details for MCKNP02SJ022KA10
MCKNP02SJ022KA10 CAD Models
MCKNP02SJ022KA10 Part Data Attributes
|
|
MCKNP02SJ022KA10
SPC Multicomp
Buy Now
Datasheet
|
Compare Parts:
MCKNP02SJ022KA10
SPC Multicomp
Fixed Resistor, Wire Wound, 2W, 0.22ohm, 5% +/-Tol, 400ppm/Cel, Through Hole Mount, AXIAL LEADED
|
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MULTICOMP PRO | |
| Package Description | AXIAL LEADED | |
| Reach Compliance Code | unknown | |
| Samacsys Manufacturer | Multicomp Pro | |
| Additional Feature | FLAME PROOF | |
| Construction | Tubular | |
| Lead Diameter | 0.7 mm | |
| Lead Length | 25 mm | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 275 °C | |
| Package Diameter | 5 mm | |
| Package Length | 12 mm | |
| Package Style | Axial | |
| Packing Method | AMMO PACK | |
| Rated Power Dissipation (P) | 2 W | |
| Rated Temperature | 70 °C | |
| Resistance | 0.22 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Surface Mount | NO | |
| Technology | WIRE WOUND | |
| Temperature Coefficient | 400 ppm/°C | |
| Terminal Shape | WIRE | |
| Tolerance | 5% |
MCKNP02SJ022KA10 Frequently Asked Questions (FAQ)
-
The recommended soldering temperature for MCKNP02SJ022KA10 is between 250°C to 260°C, with a maximum exposure time of 3 seconds.
-
Yes, MCKNP02SJ022KA10 is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, or cadmium above the specified limits.
-
The MSL of MCKNP02SJ022KA10 is level 3, which means it can withstand exposure to moisture for up to 168 hours at 30°C and 60% relative humidity.
-
Yes, MCKNP02SJ022KA10 is designed to withstand high-vibration environments, with a vibration endurance of 10-2000 Hz, 1.5 mm amplitude, and 3 hours per axis.
-
MCKNP02SJ022KA10 should be stored in a dry, cool place with a temperature range of 5°C to 30°C and relative humidity below 60%.
