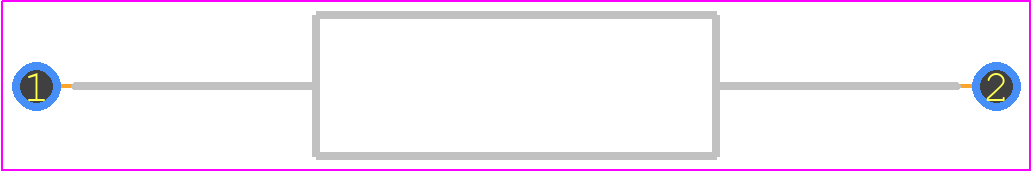

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MCKNP01SJ010KA10 by SPC Multicomp
Results Overview of MCKNP01SJ010KA10 by SPC Multicomp
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
MCKNP01SJ010KA10 Information
MCKNP01SJ010KA10 by SPC Multicomp is a Wire Wound Resistor.
Wire Wound Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for MCKNP01SJ010KA10
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
55T6526
|
Newark | Res, 0R1, 1W, Axial, Wirewound, Resistance:0.1Ohm, Product Range:Mcknp Series, Power Rating:1W, Resistance Tolerance:± 5%, Resistor Case/Package:Axial Leaded, Voltage Rating:-, Resistor Technology:Wirewound, Product Diameter:3.5Mm Rohs Compliant: Yes |Multicomp Pro MCKNP01SJ010KA10 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 74 |
|
$0.0230 | Buy Now |
Part Details for MCKNP01SJ010KA10
MCKNP01SJ010KA10 CAD Models
MCKNP01SJ010KA10 Part Data Attributes
|
|
MCKNP01SJ010KA10
SPC Multicomp
Buy Now
Datasheet
|
Compare Parts:
MCKNP01SJ010KA10
SPC Multicomp
Fixed Resistor, Wire Wound, 1W, 0.1ohm, 5% +/-Tol, 400ppm/Cel, Through Hole Mount, AXIAL LEADED
|
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MULTICOMP PRO | |
| Package Description | AXIAL LEADED | |
| Reach Compliance Code | unknown | |
| Samacsys Manufacturer | Multicomp Pro | |
| Additional Feature | FLAME PROOF | |
| Construction | Tubular | |
| Lead Diameter | 0.54 mm | |
| Lead Length | 28 mm | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 275 °C | |
| Package Diameter | 3.5 mm | |
| Package Length | 10 mm | |
| Package Style | Axial | |
| Packing Method | AMMO PACK | |
| Rated Power Dissipation (P) | 1 W | |
| Rated Temperature | 70 °C | |
| Resistance | 0.1 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Surface Mount | NO | |
| Technology | WIRE WOUND | |
| Temperature Coefficient | 400 ppm/°C | |
| Terminal Shape | WIRE | |
| Tolerance | 5% |
MCKNP01SJ010KA10 Frequently Asked Questions (FAQ)
-
The recommended storage condition for MCKNP01SJ010KA10 is in a dry, cool place with a temperature range of 10°C to 30°C and humidity below 70%. Avoid exposing the component to direct sunlight, moisture, or extreme temperatures.
-
While MCKNP01SJ010KA10 is designed to be robust, it's not specifically designed for high-vibration applications. If you need to use it in such an environment, ensure proper mounting and consider additional mechanical support to prevent damage or dislodging.
-
Yes, MCKNP01SJ010KA10 is compatible with lead-free soldering processes. However, it's essential to follow the recommended soldering profile and temperature guidelines to avoid damaging the component.
-
The maximum operating temperature range for MCKNP01SJ010KA10 is -40°C to 125°C. However, it's recommended to operate the component within the specified temperature range for optimal performance and reliability.
-
MCKNP01SJ010KA10 is not designed for use in humid or wet environments. If you need to use it in such conditions, consider applying a conformal coating or potting compound to protect the component from moisture.
