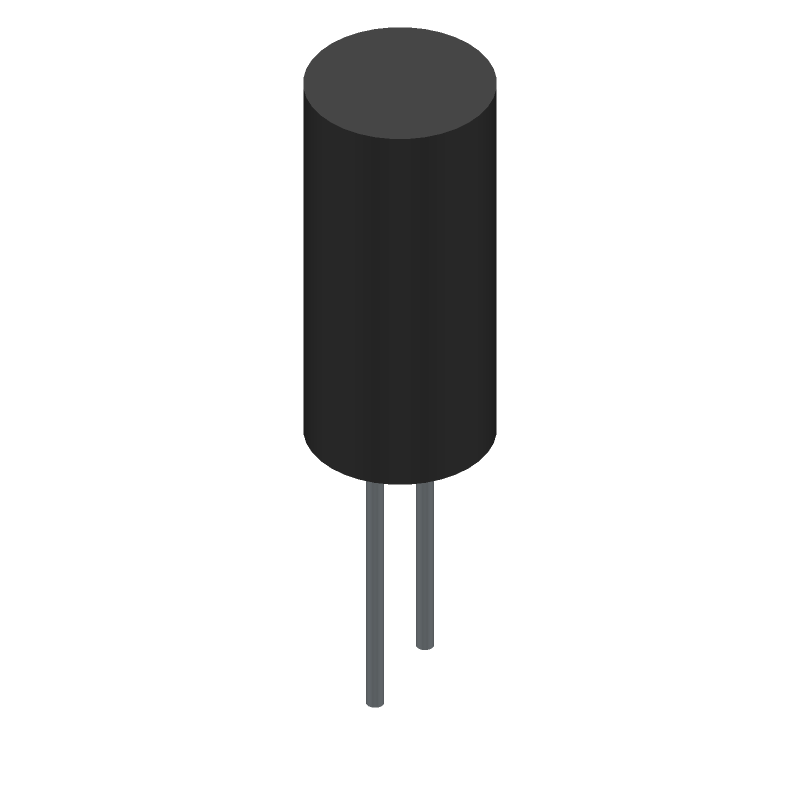

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MCGPR63V475M5X11 by SPC Multicomp
Results Overview of MCGPR63V475M5X11 by SPC Multicomp
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (10 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
MCGPR63V475M5X11 Information
MCGPR63V475M5X11 by SPC Multicomp is an Aluminum Electrolytic Capacitor.
Aluminum Electrolytic Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for MCGPR63V475M5X11
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
70K9716
|
Newark | Aluminum Electrolytic Capacitor 4.7Uf, 63V, 20%, Radial, Capacitance:4.7Μf, Voltage(Dc):63V, Capacitance Tolerance:± 20%, Capacitor Terminals:Through Hole, Lifetime @ Temperature:2000 Hours @ 85°C, Polarity:Polar, Lead Spacing:2Mm Rohs Compliant: Yes |Multicomp Pro MCGPR63V475M5X11 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 8354 |
|
$0.0170 | Buy Now |
|
DISTI #
38K4713
|
Newark | Aluminium Electrolytic Capacitor, Gpr Series, 4.7 - F, - 20%, 63 V, 5 Mm, Radial Leaded Rohs Compliant: Yes |Multicomp Pro MCGPR63V475M5X11 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 1988 |
|
$0.0040 | Buy Now |
Part Details for MCGPR63V475M5X11
MCGPR63V475M5X11 CAD Models
MCGPR63V475M5X11 Part Data Attributes
|
|
MCGPR63V475M5X11
SPC Multicomp
Buy Now
Datasheet
|
Compare Parts:
MCGPR63V475M5X11
SPC Multicomp
CAP,AL2O3,4.7UF,63VDC,20% -TOL,20% +TOL
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MULTICOMP PRO | |
| Package Description | RADIAL LEADED | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.22.00.20 | |
| Samacsys Manufacturer | Multicomp Pro | |
| Capacitance | 4.7 µF | |
| Capacitor Type | ALUMINUM ELECTROLYTIC CAPACITOR | |
| Diameter | 5 mm | |
| Dielectric Material | ALUMINUM (WET) | |
| Leakage Current | 0.002961 mA | |
| Length | 11 mm | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Negative Tolerance | 20% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Style | Radial | |
| Polarity | POLARIZED | |
| Positive Tolerance | 20% | |
| Rated (DC) Voltage (URdc) | 63 V | |
| Ripple Current | 40 mA | |
| Surface Mount | NO | |
| Tan Delta | 0.09 | |
| Terminal Pitch | 2 mm | |
| Terminal Shape | WIRE |
Alternate Parts for MCGPR63V475M5X11
This table gives cross-reference parts and alternative options found for MCGPR63V475M5X11. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MCGPR63V475M5X11, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 14R7LGM0511LLN28EA | Fenghua (HK) Electronics Ltd | Check for Price | Aluminum Electrolytic Capacitor, Polarized, Aluminum, 63V, 20% +Tol, 20% -Tol, 4.7uF, | MCGPR63V475M5X11 vs 14R7LGM0511LLN28EA |
| 24R7LGM0511NPN085B | Fenghua (HK) Electronics Ltd | Check for Price | Aluminum Electrolytic Capacitor, Non-polarized, Aluminum, 63V, 20% +Tol, 20% -Tol, 4.7uF, | MCGPR63V475M5X11 vs 24R7LGM0511NPN085B |
| 84R7LGM0511LL07N | Fenghua (HK) Electronics Ltd | Check for Price | Aluminum Electrolytic Capacitor, Polarized, Aluminum, 63V, 20% +Tol, 20% -Tol, 4.7uF, | MCGPR63V475M5X11 vs 84R7LGM0511LL07N |
| 14R7LGM0511LLN18FA | Fenghua (HK) Electronics Ltd | Check for Price | Aluminum Electrolytic Capacitor, Polarized, Aluminum, 63V, 20% +Tol, 20% -Tol, 4.7uF, | MCGPR63V475M5X11 vs 14R7LGM0511LLN18FA |
| 24R7LGM0511LLN181M | Fenghua (HK) Electronics Ltd | Check for Price | Aluminum Electrolytic Capacitor, Polarized, Aluminum, 63V, 20% +Tol, 20% -Tol, 4.7uF, | MCGPR63V475M5X11 vs 24R7LGM0511LLN181M |
| 84R7LGM0511LLN081B | Fenghua (HK) Electronics Ltd | Check for Price | Aluminum Electrolytic Capacitor, Polarized, Aluminum, 63V, 20% +Tol, 20% -Tol, 4.7uF, | MCGPR63V475M5X11 vs 84R7LGM0511LLN081B |
| SK4R7M063ST | Cornell Dubilier Electronics Inc | Check for Price | Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 63V, 20% +Tol, 20% -Tol, 4.7uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT | MCGPR63V475M5X11 vs SK4R7M063ST |
| WK1JM4R7 | Aihua Technology Group Co Ltd | Check for Price | Aluminum Electrolytic Capacitor, Polarized, Aluminum, 63V, 20% +Tol, 20% -Tol, 4.7uF | MCGPR63V475M5X11 vs WK1JM4R7 |
| 84R7LGM0511WF01A | Fenghua (HK) Electronics Ltd | Check for Price | Aluminum Electrolytic Capacitor, Polarized, Aluminum, 63V, 20% +Tol, 20% -Tol, 4.7uF, | MCGPR63V475M5X11 vs 84R7LGM0511WF01A |
| 84R7LGM0511NPN085R | Fenghua (HK) Electronics Ltd | Check for Price | Aluminum Electrolytic Capacitor, Non-polarized, Aluminum, 63V, 20% +Tol, 20% -Tol, 4.7uF, | MCGPR63V475M5X11 vs 84R7LGM0511NPN085R |
MCGPR63V475M5X11 Frequently Asked Questions (FAQ)
-
The recommended soldering temperature is 260°C (500°F) for 10 seconds or less, to prevent damage to the capacitor.
-
Yes, the MCGPR63V475M5X11 capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the EU's standards for reducing hazardous substances in electronic components.
-
The ESR of MCGPR63V475M5X11 is typically around 0.05 ohms, but this value can vary depending on the frequency and operating conditions.
-
Yes, the MCGPR63V475M5X11 capacitor is designed to withstand high-vibration environments, making it suitable for use in applications such as automotive, aerospace, and industrial control systems.
-
The shelf life of MCGPR63V475M5X11 is typically 2 years from the date of manufacture, when stored in a dry, cool environment, away from direct sunlight and moisture.
