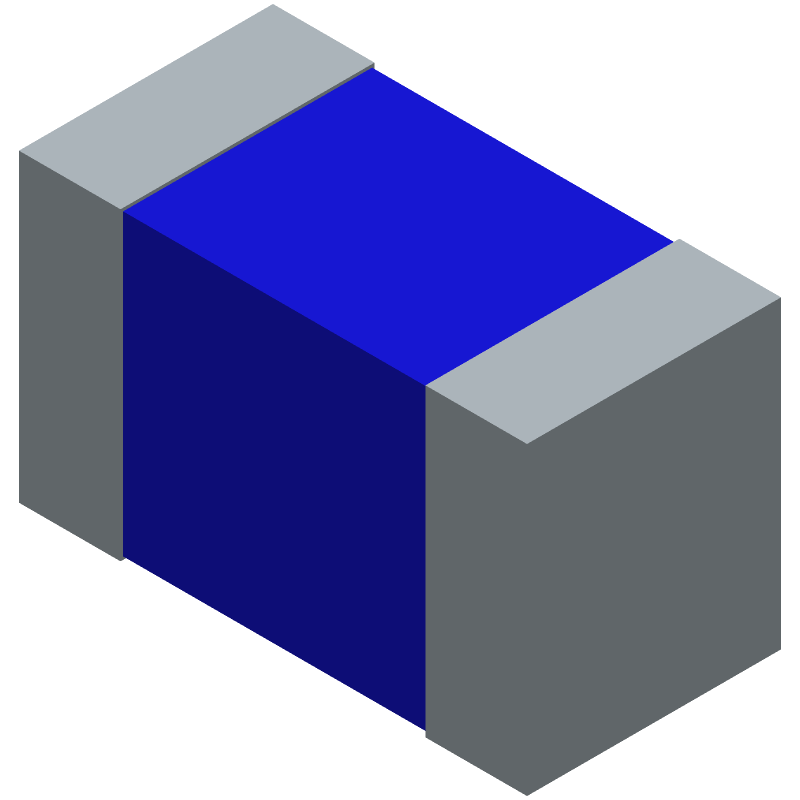

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MCFT000030 by SPC Multicomp
Results Overview of MCFT000030 by SPC Multicomp
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
MCFT000030 Information
MCFT000030 by SPC Multicomp is a Fixed Inductor.
Fixed Inductors are under the broader part category of Inductors.
Inductors are passive components that resist sudden changes in current by storing and releasing energy in an electromagnetic fiel. They are often used in power circuits and energy storage. Read more about Inductors on our Inductors part category page.
Price & Stock for MCFT000030
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
10R8565
|
Newark | Surface Mount High Frequency Inductor, Mcft Series, 10 Nh, 5%, 0402 [1005 Metric], 3.2 Ghz Rohs Compliant: Yes |Multicomp Pro MCFT000030 RoHS: Compliant Min Qty: 10 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 4210 |
|
$0.0060 / $0.0220 | Buy Now |
Part Details for MCFT000030
MCFT000030 CAD Models
MCFT000030 Part Data Attributes
|
|
MCFT000030
SPC Multicomp
Buy Now
Datasheet
|
Compare Parts:
MCFT000030
SPC Multicomp
General Purpose Inductor, 0.01uH, 5%, 1 Element, Ceramic-Core, SMD, 0402, CHIP, 0402
|
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MULTICOMP PRO | |
| Package Description | CHIP, 0402 | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| HTS Code | 8504.50.80.00 | |
| Samacsys Manufacturer | Multicomp Pro | |
| Case/Size Code | 0402 | |
| Construction | RECTANGULAR | |
| Core Material | CERAMIC | |
| DC Resistance | 0.42 Ω | |
| Inductance-Nom (L) | 0.01 µH | |
| Inductor Application | RF INDUCTOR | |
| Inductor Type | GENERAL PURPOSE INDUCTOR | |
| Number of Functions | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -30 °C | |
| Package Height | 0.5 mm | |
| Package Length | 1 mm | |
| Package Style | SMT | |
| Package Width | 0.5 mm | |
| Rated Current-Max | 0.3 A | |
| Self Resonance Frequency | 3200 MHz | |
| Shape/Size Description | RECTANGULAR PACKAGE | |
| Shielded | NO | |
| Surface Mount | YES | |
| Terminal Placement | DUAL ENDED | |
| Terminal Shape | WRAPAROUND | |
| Test Frequency | 100 MHz | |
| Tolerance | 5% |
Alternate Parts for MCFT000030
This table gives cross-reference parts and alternative options found for MCFT000030. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MCFT000030, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| VHF0402H10NJB | Fenghua (HK) Electronics Ltd | Check for Price | General Purpose Inductor, 0.01uH, 5%, Ceramic-Core, 0402, | MCFT000030 vs VHF0402H10NJB |
MCFT000030 Frequently Asked Questions (FAQ)
-
The recommended storage temperature for MCFT000030 is -40°C to 125°C.
-
Yes, MCFT000030 is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the EU's standards for reducing hazardous substances in electronic components.
-
The operating temperature range for MCFT000030 is -40°C to 105°C.
-
The maximum power rating for MCFT000030 is 1W.
-
Yes, MCFT000030 is designed for high-reliability applications, making it suitable for use in critical systems.
