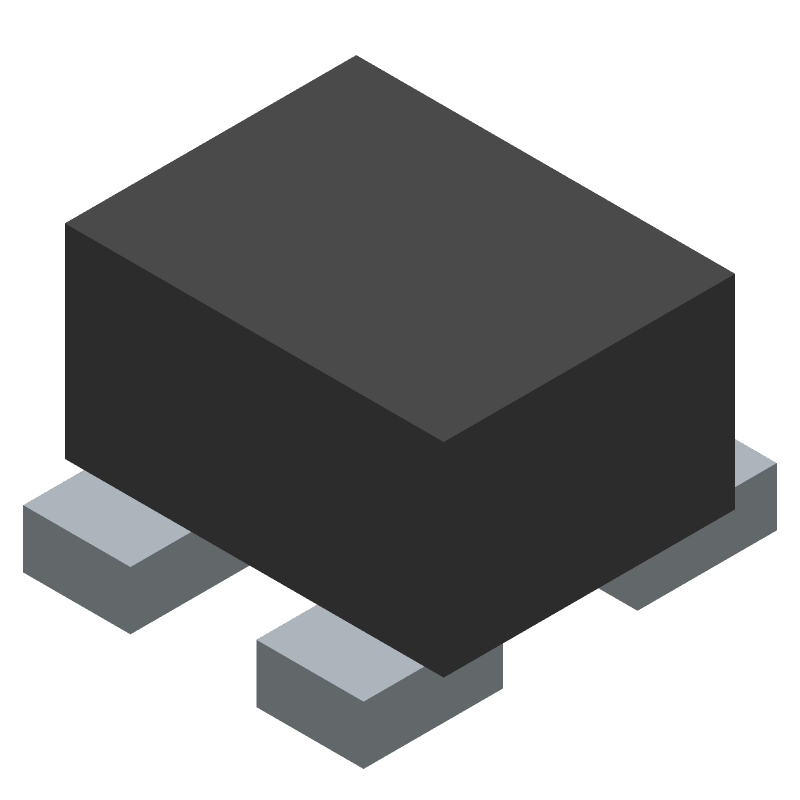

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MCF06052G350-T by TAIYO YUDEN
Results Overview of MCF06052G350-T by TAIYO YUDEN
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Financial Technology (Fintech)
Smart Cities
Energy and Power Systems
Transportation and Logistics
Agriculture Technology
Telecommunications
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Education and Research
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Healthcare
Renewable Energy
Entertainment and Gaming
MCF06052G350-T Information
MCF06052G350-T by TAIYO YUDEN is a Data Line Filter.
Data Line Filters are under the broader part category of Filters.
A filter is an electronic circuit that selectively allows certain frequencies to pass while attenuating others. They are used to extract desired signals and remove noise. Read more about Filters on our Filters part category page.
Price & Stock for MCF06052G350-T
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
59AC8501
|
Newark | Common Mode Choke, Multilayer, 35 Ohm, Dc Current Rating:50Ma, Inductance:-, Product Range:Mcf Series, Impedance:35Ohm, Inductor Case/Package:-, Product Length:0.65Mm, Product Width:0.5Mm, Product Height:0.3Mm, Qualification:- Rohs Compliant: Yes |Taiyo Yuden MCF06052G350-T RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 2730 |
|
$0.0080 | Buy Now |
Part Details for MCF06052G350-T
MCF06052G350-T CAD Models
MCF06052G350-T Part Data Attributes
|
|
MCF06052G350-T
TAIYO YUDEN
Buy Now
Datasheet
|
Compare Parts:
MCF06052G350-T
TAIYO YUDEN
Data Line Filter, 1 Function(s), 0.05A, HALOGEN FREE AND ROHS COMPLIANT PACKAGE-4
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TAIYO YUDEN CO LTD | |
| Package Description | HALOGEN FREE AND ROHS COMPLIANT PACKAGE-4 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8504.50.80.00 | |
| Samacsys Manufacturer | TAIYO YUDEN | |
| DC Resistance-Max | 6.5 Ω | |
| Filter Type | DATA LINE FILTER | |
| Height | 0.3 mm | |
| Insulation Resistance-Min | 100 MΩ | |
| Length | 0.65 mm | |
| Mounting Type | SURFACE MOUNT | |
| Number of Functions | 2 | |
| Number of Terminals | 4 | |
| Output Impedance | 35 OHM Ω | |
| Packing Method | TAPE | |
| Rated Current | 0.05 A | |
| Rated Voltage | 10 V | |
| Width | 0.5 mm |
