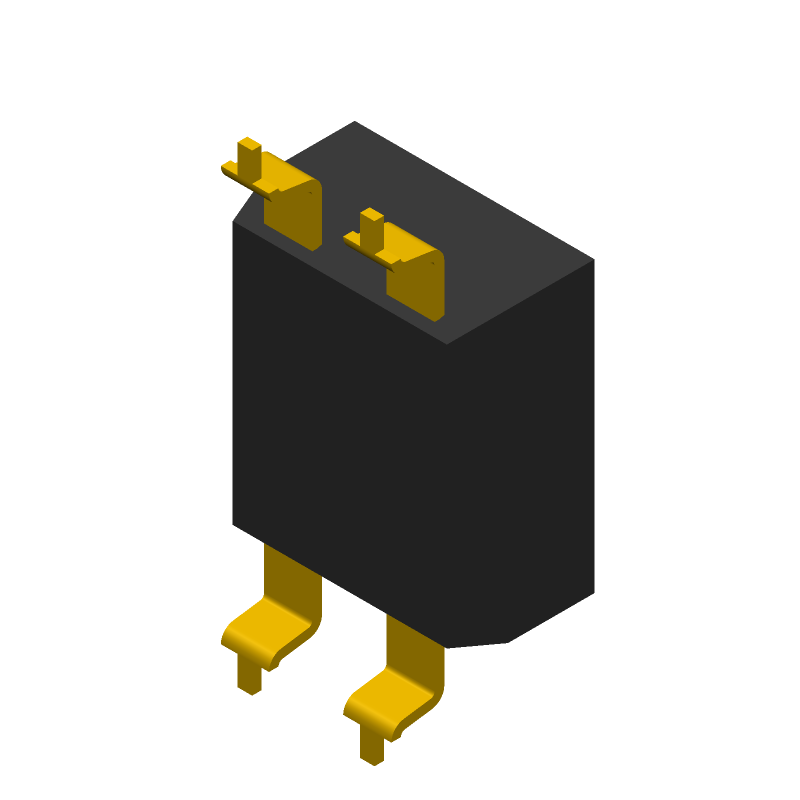

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MCEMR-02-T by SPC Multicomp
Results Overview of MCEMR-02-T by SPC Multicomp
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Energy and Power Systems
Renewable Energy
Robotics and Drones
MCEMR-02-T Information
MCEMR-02-T by SPC Multicomp is a DIP Switch.
DIP Switches are under the broader part category of Switches.
Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.
Price & Stock for MCEMR-02-T
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
74M3000
|
Newark | Switch, Dip, 2 Position, Spst, Recessed, No. Of Circuits:2Circuits, Switch Actuator Style:Slide, Switch Mounting:Surface Mount, Contact Configuration:Spst, Contact Voltage Dc Max:24Vdc, Contact Current Dc Max:25Ma, Colour:Black Rohs Compliant: Yes |Multicomp Pro MCEMR-02-T RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 9 |
|
$0.1160 | Buy Now |
|
|
Bristol Electronics | 28 |
|
RFQ |
Part Details for MCEMR-02-T
MCEMR-02-T CAD Models
MCEMR-02-T Part Data Attributes
|
|
MCEMR-02-T
SPC Multicomp
Buy Now
Datasheet
|
Compare Parts:
MCEMR-02-T
SPC Multicomp
Slide Dip Switch, 2 Switches, SPST, Latched, 0.025A, 24VDC, Solder Terminal, Surface Mount-straight
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MULTICOMP PRO | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.50.90.65 | |
| Samacsys Manufacturer | Multicomp Pro | |
| Body Breadth | 4.98 mm | |
| Body Height | 2.8 mm | |
| Body Length or Diameter | 6 mm | |
| Contact Current(DC)-Max | 0.025 A | |
| Contact (DC) Max Rating R Load | .025A@24VDC | |
| Contact Voltage(DC)-Max | 24 V | |
| Electrical Life | 2000 Cycle(s) | |
| Mounting Feature | SURFACE MOUNT-STRAIGHT | |
| Number of Switch Sections | 2 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -20 °C | |
| Sealing | TOP TAPE SEALED | |
| Surface Mount | NO | |
| Switch Action | LATCHED | |
| Switch Function | SPST | |
| Switch Type | SLIDE DIP SWITCH | |
| Termination Type | SOLDER |
MCEMR-02-T Frequently Asked Questions (FAQ)
-
Store in a cool, dry place away from direct sunlight, with a temperature range of -20°C to 40°C and humidity below 80%.
-
Yes, but ensure proper mounting and secure the component to prevent mechanical stress. Consult the manufacturer for specific vibration testing data.
-
Use an ESD wrist strap, mat, or workstation to prevent electrostatic discharge. Ground yourself before handling the component.
-
Use a soldering iron with a temperature range of 250°C to 270°C, and a soldering time of 3-5 seconds. Avoid overheating or applying excessive force.
-
The component is rated for operation up to 125°C. However, consult the manufacturer for specific temperature derating guidelines and reliability data.
