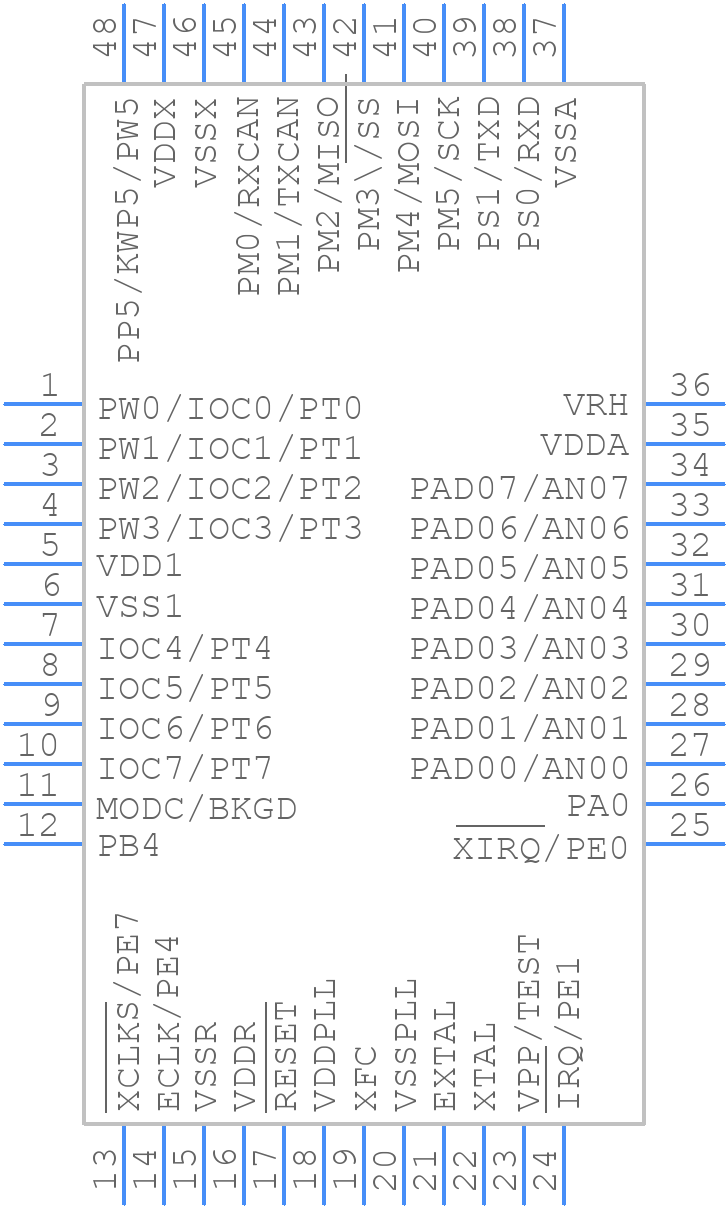

Part Symbol
-

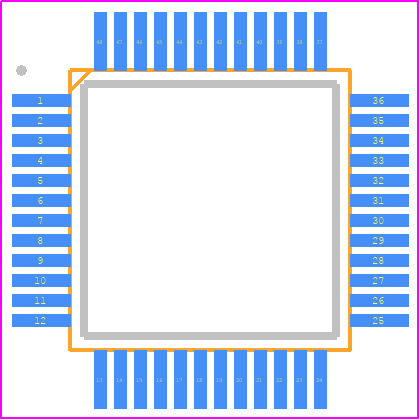

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MC9S12C64CFAE by NXP Semiconductors
Results Overview of MC9S12C64CFAE by NXP Semiconductors
- Distributor Offerings: (13 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (8 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Transportation and Logistics
Healthcare
Renewable Energy
Automotive
Robotics and Drones
MC9S12C64CFAE Information
MC9S12C64CFAE by NXP Semiconductors is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for MC9S12C64CFAE
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
70K3235
|
Newark | Microcontroller Mcu, 16 Bit, Hcs12, 25Mhz, Lqfp-48, Product Range:Hcs12 Family S12C Series Microcontrollers, Device Core:Hcs12, Data Bus Width:16 Bit, Operating Frequency Max:25Mhz, Program Memory Size:64Kb, No. Of Pins:48Pins Rohs Compliant: Yes |Nxp MC9S12C64CFAE RoHS: Compliant Min Qty: 1250 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$11.8800 | Buy Now |
|
DISTI #
MC9S12C64CFAE-ND
|
DigiKey | IC MCU 16BIT 64KB FLASH 48LQFP Min Qty: 1 Lead time: 13 Weeks Container: Tray |
1286 In Stock |
|
$13.8867 / $21.2800 | Buy Now |
|
DISTI #
MC9S12C64CFAE
|
Avnet Americas | 16 Bit Microcontroller, HCS12 Family S12C Series Microcontrollers, HCS12, 16 bit, 25 MHz, 64 KB - Trays (Alt: MC9S12C64CFAE) RoHS: Compliant Min Qty: 1250 Package Multiple: 1250 Lead time: 13 Weeks, 0 Days Container: Tray | 0 |
|
$11.9198 / $12.3240 | Buy Now |
|
DISTI #
841-MC9S12C64CFAE
|
Mouser Electronics | 16-bit Microcontrollers - MCU 9S12C64 (KOI) RoHS: Compliant | 1603 |
|
$13.5600 / $20.8300 | Buy Now |
|
DISTI #
V36:1790_07189627
|
Arrow Electronics | MCU 16-bit HCS12 CISC 64KB Flash 2.5V/5V 48-Pin LQFP Tray RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 13 Weeks Date Code: 2413 | Americas - 2960 |
|
$12.6300 / $20.6200 | Buy Now |
|
DISTI #
E02:0323_00066696
|
Arrow Electronics | MCU 16-bit HCS12 CISC 64KB Flash 2.5V/5V 48-Pin LQFP Tray RoHS: Compliant Min Qty: 500 Package Multiple: 250 Lead time: 13 Weeks | Europe - 500 |
|
$13.4988 | Buy Now |
|
DISTI #
84416841
|
Verical | MCU 16-bit HCS12 CISC 64KB Flash 2.5V/5V 48-Pin LQFP Tray RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 2413 | Americas - 2960 |
|
$12.6300 / $20.6200 | Buy Now |
|
DISTI #
76891852
|
Verical | MCU 16-bit HCS12 CISC 64KB Flash 2.5V/5V 48-Pin LQFP Tray RoHS: Compliant Min Qty: 500 Package Multiple: 500 | Americas - 500 |
|
$13.5156 | Buy Now |
|
DISTI #
MC9S12C64CFAE
|
TME | IC: microcontroller, LQFP48, 64kBFLASH Min Qty: 1 | 0 |
|
$14.8500 / $15.9000 | RFQ |
|
DISTI #
MC9S12C64CFAE
|
IBS Electronics | MCU 16-BIT HCS12 HCS12 CISC 64KB FLASH 2.5V/5V AUTOMOTIVE 48-PIN LQFP TRAY Min Qty: 1250 Package Multiple: 1 | 0 |
|
$16.5620 | Buy Now |
Part Details for MC9S12C64CFAE
MC9S12C64CFAE CAD Models
MC9S12C64CFAE Part Data Attributes
|
|
MC9S12C64CFAE
NXP Semiconductors
Buy Now
Datasheet
|
Compare Parts:
MC9S12C64CFAE
NXP Semiconductors
16-BIT, FLASH, 25MHz, MICROCONTROLLER, PQFP48
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NXP SEMICONDUCTORS | |
| Package Description | PLASTIC, LQFP-48 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.31.00.01 | |
| Factory Lead Time | 13 Weeks | |
| Samacsys Manufacturer | NXP | |
| Has ADC | YES | |
| Additional Feature | ALSO REQUIRES 5V SUPPLY | |
| Address Bus Width | 16 | |
| Bit Size | 16 | |
| Boundary Scan | NO | |
| CPU Family | CPU12 | |
| Clock Frequency-Max | 50 MHz | |
| DAC Channels | NO | |
| DMA Channels | NO | |
| External Data Bus Width | 16 | |
| JESD-30 Code | S-PQFP-G48 | |
| JESD-609 Code | e3 | |
| Length | 7 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of I/O Lines | 31 | |
| Number of Terminals | 48 | |
| On Chip Program ROM Width | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | YES | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LFQFP | |
| Package Equivalence Code | QFP48,.35SQ,20 | |
| Package Shape | SQUARE | |
| Package Style | FLATPACK, LOW PROFILE, FINE PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| RAM (bytes) | 4096 | |
| ROM (words) | 65536 | |
| ROM Programmability | FLASH | |
| Seated Height-Max | 1.6 mm | |
| Speed | 25 MHz | |
| Supply Current-Max | 45 mA | |
| Supply Voltage-Max | 2.75 V | |
| Supply Voltage-Min | 2.5 V | |
| Supply Voltage-Nom | 2.5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Width | 7 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER |
