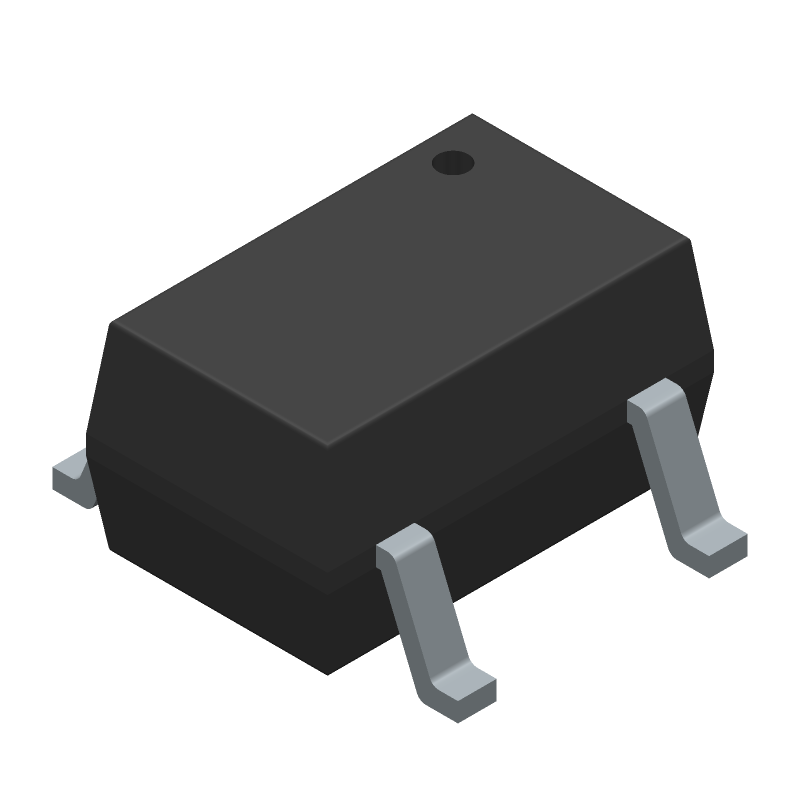

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MC74VHC1GU04DFT2G by onsemi
Results Overview of MC74VHC1GU04DFT2G by onsemi
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Computing and Data Storage
Energy and Power Systems
Renewable Energy
Telecommunications
Communication and Networking
Automotive
MC74VHC1GU04DFT2G Information
MC74VHC1GU04DFT2G by onsemi is a Gate.
Gates are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for MC74VHC1GU04DFT2G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
87AK0051
|
Newark | Unbuffered Single Inverter/ Reel |Onsemi MC74VHC1GU04DFT2G RoHS: Not Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0360 / $0.0390 | Buy Now |
|
DISTI #
488-MC74VHC1GU04DFT2GCT-ND
|
DigiKey | UNBUFFERED SINGLE INVERTER Min Qty: 1 Lead time: 8 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
3000 In Stock |
|
$0.0212 / $0.1000 | Buy Now |
|
DISTI #
MC74VHC1GU04DFT2G
|
Avnet Americas | - Tape and Reel (Alt: MC74VHC1GU04DFT2G) RoHS: Compliant Min Qty: 45000 Package Multiple: 3000 Lead time: 8 Weeks, 0 Days Container: Reel | 183000 Factory Stock |
|
$0.0191 / $0.0195 | Buy Now |
|
DISTI #
863-C74VHC1GU04DFT2G
|
Mouser Electronics | Inverters LOG CMOS INVERTER GATE RoHS: Compliant | 0 |
|
$0.0240 / $0.2300 | Order Now |
|
|
Onlinecomponents.com | Unbuffered Single Inverter RoHS: Compliant | 0 |
|
$0.0198 / $0.0245 | Buy Now |
|
DISTI #
MC74VHC1GU04DFT2G
|
Avnet Silica | (Alt: MC74VHC1GU04DFT2G) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 9 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
MC74VHC1GU04DFT2G
|
EBV Elektronik | (Alt: MC74VHC1GU04DFT2G) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 10 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for MC74VHC1GU04DFT2G
MC74VHC1GU04DFT2G CAD Models
MC74VHC1GU04DFT2G Part Data Attributes
|
|
MC74VHC1GU04DFT2G
onsemi
Buy Now
Datasheet
|
Compare Parts:
MC74VHC1GU04DFT2G
onsemi
Unbuffered Single Inverter, SC-88A / SC-70-5, 3000-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | SC-88A / SC-70-5 | |
| Package Description | SC-70, SC-88A, SOT-353, 5 PIN | |
| Pin Count | 5 | |
| Manufacturer Package Code | 419A-02 | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 8 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Family | AHC/VHC | |
| JESD-30 Code | R-PDSO-G5 | |
| JESD-609 Code | e3 | |
| Length | 2 mm | |
| Logic IC Type | INVERTER | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Inputs | 1 | |
| Number of Terminals | 5 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Propagation Delay (tpd) | 15.5 ns | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.1 mm | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 2 V | |
| Supply Voltage-Nom (Vsup) | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | MILITARY | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Width | 1.25 mm |
Alternate Parts for MC74VHC1GU04DFT2G
This table gives cross-reference parts and alternative options found for MC74VHC1GU04DFT2G. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MC74VHC1GU04DFT2G, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MC74VHC1GU04DFR2 | onsemi | Check for Price | AHC/VHC SERIES, 1-INPUT INVERT GATE, PDSO5, SC-70, SC-88A, SOT-353, 5 PIN | MC74VHC1GU04DFT2G vs MC74VHC1GU04DFR2 |
MC74VHC1GU04DFT2G Frequently Asked Questions (FAQ)
-
The recommended operating voltage range for the MC74VHC1GU04DFT2G is 2.0V to 5.5V.
-
To ensure reliable operation in high-temperature environments, it is recommended to follow the thermal management guidelines provided in the datasheet, including using a heat sink if necessary, and ensuring good airflow around the device.
-
The maximum current that the MC74VHC1GU04DFT2G can sink or source is 8mA, as specified in the datasheet.
-
To handle ESD protection for the MC74VHC1GU04DFT2G, it is recommended to follow proper handling and storage procedures, including using ESD-protective packaging and handling the device with ESD-protective equipment.
-
The propagation delay of the MC74VHC1GU04DFT2G is typically around 3.5ns, as specified in the datasheet.
