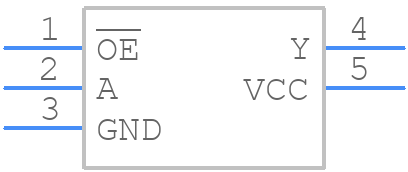

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MC74VHC1GT125DFT2G by onsemi
Results Overview of MC74VHC1GT125DFT2G by onsemi
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
MC74VHC1GT125DFT2G Information
MC74VHC1GT125DFT2G by onsemi is a Bus Driver/Transceiver.
Bus Driver/Transceivers are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for MC74VHC1GT125DFT2G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
87AK0030
|
Newark | Single Non-Inverting Buffer, 3-State/ Reel |Onsemi MC74VHC1GT125DFT2G RoHS: Not Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0400 / $0.0440 | Buy Now |
|
DISTI #
26AM3870
|
Newark | Log Cmos Bufr Ninvert |Onsemi MC74VHC1GT125DFT2G RoHS: Not Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$0.0260 | Buy Now |
|
DISTI #
488-MC74VHC1GT125DFT2GCT-ND
|
DigiKey | IC BUFFER NON-INVERT 5.5V SC88A Min Qty: 1 Lead time: 8 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
719 In Stock |
|
$0.0232 / $0.1000 | Buy Now |
|
DISTI #
MC74VHC1GT125DFT2G
|
Avnet Americas | - Tape and Reel (Alt: MC74VHC1GT125DFT2G) RoHS: Compliant Min Qty: 30000 Package Multiple: 3000 Lead time: 8 Weeks, 0 Days Container: Reel | 19945 Factory Stock |
|
$0.0239 / $0.0244 | Buy Now |
|
DISTI #
863-M74VH1GT125DFT2G
|
Mouser Electronics | Buffers & Line Drivers LOG CMOS BUFR NINVERT RoHS: Compliant | 11692 |
|
$0.0280 / $0.2500 | Buy Now |
|
DISTI #
E02:0323_22659266
|
Arrow Electronics | Buffer/Line Driver 1-CH Non-Inverting 3-ST CMOS 5-Pin SC-88A T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 8 Weeks | Europe - 6000 |
|
$0.0223 / $0.0338 | Buy Now |
|
|
Onlinecomponents.com | Single Non-Inverting Buffer, 3-State RoHS: Compliant | 0 |
|
$0.0218 / $0.0260 | Buy Now |
|
DISTI #
MC74VHC1GT125DFT2G
|
IBS Electronics | MC74VHC1GT125DFT2G by ONSEMI is a single non-inverting buffer/driver with 3-state output, operating from 2V to 5.5V, featuring high-speed CMOS technology, low power consumption, and a 5-pin SOT-23 package. Min Qty: 30000 Package Multiple: 1 | 0 |
|
$0.0282 / $0.0309 | Buy Now |
|
DISTI #
MC74VHC1GT125DFT2G
|
Avnet Silica | (Alt: MC74VHC1GT125DFT2G) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 9 Weeks, 0 Days | Silica - 30000 |
|
Buy Now | |
|
DISTI #
MC74VHC1GT125DFT2G
|
EBV Elektronik | (Alt: MC74VHC1GT125DFT2G) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 10 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for MC74VHC1GT125DFT2G
MC74VHC1GT125DFT2G CAD Models
MC74VHC1GT125DFT2G Part Data Attributes
|
|
MC74VHC1GT125DFT2G
onsemi
Buy Now
Datasheet
|
Compare Parts:
MC74VHC1GT125DFT2G
onsemi
Single Non-Inverting Buffer, 3-State, SC-88A / SC-70-5, 3000-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | SC-88A / SC-70-5 | |
| Package Description | SC-70, 5 PIN | |
| Manufacturer Package Code | 419A-02 | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 8 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Control Type | ENABLE LOW | |
| Count Direction | UNIDIRECTIONAL | |
| Family | AHC/VHC/H/U/V | |
| JESD-30 Code | R-PDSO-G5 | |
| JESD-609 Code | e3 | |
| Length | 2 mm | |
| Load Capacitance (CL) | 50 pF | |
| Logic IC Type | BUS DRIVER | |
| Max I(ol) | 0.008 A | |
| Moisture Sensitivity Level | 1 | |
| Number of Bits | 1 | |
| Number of Functions | 1 | |
| Number of Ports | 2 | |
| Number of Terminals | 5 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Characteristics | 3-STATE | |
| Output Polarity | TRUE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP5/6,.08 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Packing Method | TR, 7 INCH | |
| Power Supply Current-Max (ICC) | 50 mA | |
| Prop. Delay@Nom-Sup | 10.5 ns | |
| Propagation Delay (tpd) | 16 ns | |
| Seated Height-Max | 1.1 mm | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 2 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Width | 1.25 mm |
MC74VHC1GT125DFT2G Frequently Asked Questions (FAQ)
-
The recommended operating voltage range for the MC74VHC1GT125DFT2G is 2.0V to 5.5V.
-
To ensure the output signal is not distorted or attenuated, make sure to use a suitable output load impedance, typically 1kΩ to 10kΩ, and keep the output signal within the recommended voltage swing.
-
The maximum frequency of operation for the MC74VHC1GT125DFT2G is typically up to 200 MHz, but it depends on the specific application and operating conditions.
-
The MC74VHC1GT125DFT2G has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing, such as using an ESD wrist strap or mat.
-
The power consumption of the MC74VHC1GT125DFT2G is typically around 10 μA to 20 μA, depending on the operating frequency and voltage.
