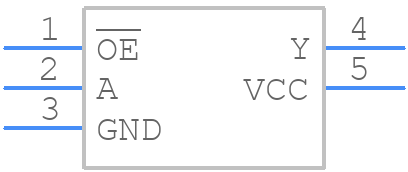

Part Symbol
-
Footprint
-

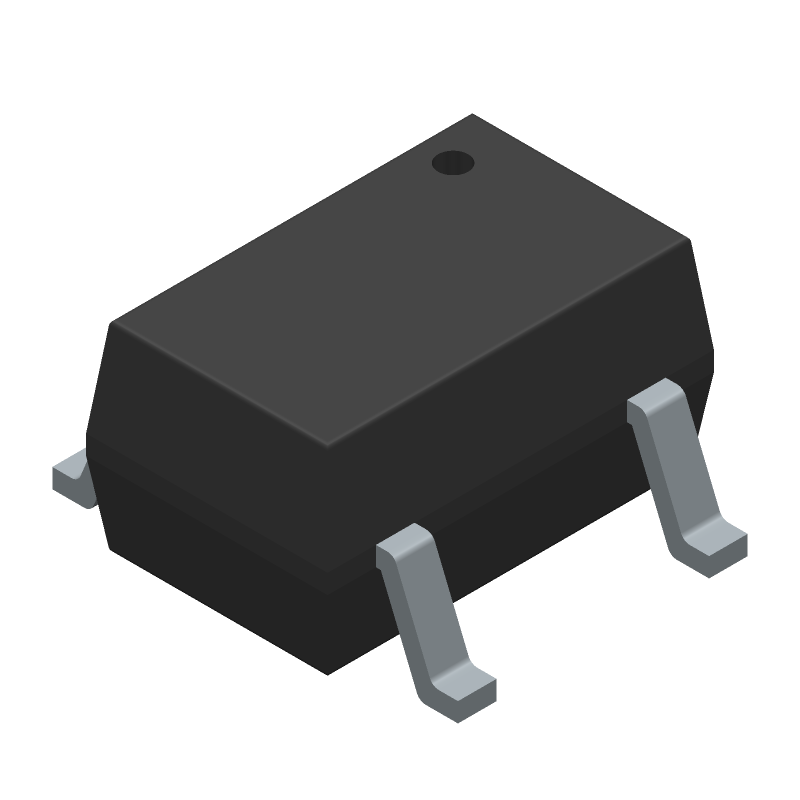

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MC74VHC1GT125DFT1G by onsemi
Results Overview of MC74VHC1GT125DFT1G by onsemi
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
MC74VHC1GT125DFT1G Information
MC74VHC1GT125DFT1G by onsemi is a Bus Driver/Transceiver.
Bus Driver/Transceivers are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for MC74VHC1GT125DFT1G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
87AK0028
|
Newark | Single Non-Inverting Buffer, 3-State/ Reel |Onsemi MC74VHC1GT125DFT1G RoHS: Not Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0400 / $0.0440 | Buy Now |
|
DISTI #
26AM3869
|
Newark | Log Cmos Bufr Ninvert |Onsemi MC74VHC1GT125DFT1G RoHS: Not Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0240 | Buy Now |
|
DISTI #
488-MC74VHC1GT125DFT1GCT-ND
|
DigiKey | SINGLE NON-INVERTING BUFFER, 3-S Min Qty: 1 Lead time: 6 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
4485 In Stock |
|
$0.0265 / $0.2700 | Buy Now |
|
DISTI #
MC74VHC1GT125DFT1G
|
Avnet Americas | LOG CMOS BUFR NINVERT - Tape and Reel (Alt: MC74VHC1GT125DFT1G) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 6 Weeks, 0 Days Container: Reel | 18000 |
|
$0.0230 / $0.0235 | Buy Now |
|
DISTI #
863-M74VH1GT125DFT1G
|
Mouser Electronics | Buffers & Line Drivers LOG CMOS BUFR NINVERT RoHS: Compliant | 17762 |
|
$0.0270 / $0.2600 | Buy Now |
|
DISTI #
E02:0323_22659265
|
Arrow Electronics | Buffer/Line Driver 1-CH Non-Inverting 3-ST CMOS 5-Pin SC-88A T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 6 Weeks Date Code: 2513 | Europe - 24000 |
|
$0.0314 / $0.0546 | Buy Now |
|
|
Onlinecomponents.com | Buffer/Line Driver 1-CH Non-Inverting 3-ST CMOS 5-Pin SC-88A T/R RoHS: Compliant | 0 |
|
$0.0218 / $0.0260 | Buy Now |
|
DISTI #
MC74VHC1GT125DFT1G
|
IBS Electronics | BUFFER/LINE DRIVER 1-CH NON-INVERTING 3-STCMOS 5-PIN SC-88A T/R Min Qty: 21000 Package Multiple: 1 | 0 |
|
$0.0296 / $0.0325 | Buy Now |
|
DISTI #
MC74VHC1GT125DFT1G
|
Avnet Silica | LOG CMOS BUFR NINVERT (Alt: MC74VHC1GT125DFT1G) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 7 Weeks, 0 Days | Silica - 954000 |
|
Buy Now |
Part Details for MC74VHC1GT125DFT1G
MC74VHC1GT125DFT1G CAD Models
MC74VHC1GT125DFT1G Part Data Attributes
|
|
MC74VHC1GT125DFT1G
onsemi
Buy Now
Datasheet
|
Compare Parts:
MC74VHC1GT125DFT1G
onsemi
Single Non-Inverting Buffer, 3-State, SC-88A / SC-70-5, 3000-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | SC-88A / SC-70-5 | |
| Package Description | SC-70, 5 PIN | |
| Manufacturer Package Code | 419A-02 | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 6 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Control Type | ENABLE LOW | |
| Count Direction | UNIDIRECTIONAL | |
| Family | AHC/VHC/H/U/V | |
| JESD-30 Code | R-PDSO-G5 | |
| JESD-609 Code | e3 | |
| Length | 2 mm | |
| Load Capacitance (CL) | 50 pF | |
| Logic IC Type | BUS DRIVER | |
| Max I(ol) | 0.008 A | |
| Moisture Sensitivity Level | 1 | |
| Number of Bits | 1 | |
| Number of Functions | 1 | |
| Number of Ports | 2 | |
| Number of Terminals | 5 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Characteristics | 3-STATE | |
| Output Polarity | TRUE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP5/6,.08 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Packing Method | TR, 7 INCH | |
| Power Supply Current-Max (ICC) | 50 mA | |
| Prop. Delay@Nom-Sup | 10.5 ns | |
| Propagation Delay (tpd) | 16 ns | |
| Seated Height-Max | 1.1 mm | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 2 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Width | 1.25 mm |
MC74VHC1GT125DFT1G Frequently Asked Questions (FAQ)
-
The recommended operating voltage range for the MC74VHC1GT125DFT1G is 2.0V to 5.5V.
-
To ensure signal integrity, use a low-impedance PCB layout, minimize trace lengths, and use termination resistors as needed. Also, consider using a signal integrity analysis tool to simulate and optimize your design.
-
Yes, the MC74VHC1GT125DFT1G can be used in a 3.3V system. However, the output voltage swing will be reduced, and the device may not meet the specified propagation delay and transition times. Consult the datasheet for detailed information on 3.3V operation.
-
To avoid latch-up or damage, ensure that the VCC pin is powered up before the input signals, and that the input signals are stable before the VCC pin is powered down. A power sequencing circuit or a voltage supervisor IC can be used to ensure proper power-up and power-down sequencing.
-
The maximum allowable junction temperature for the MC74VHC1GT125DFT1G is 150°C. To ensure it is not exceeded, use a thermal analysis tool to simulate the device's thermal performance, and implement thermal management techniques such as heat sinking, thermal vias, and airflow management in your design.
